Noctua Noctua NF-A9X14 HS-PWM CH.BK.S computer cooling system Computer case Fan 9.2 cm Black

Noctua NF-A9X14 HS-PWM CH.BK.S, Fan, 9.2 cm, 600 RPM, 2500 RPM, 23.6 dB, 57.5 m³/h
NF-A9x14HS-PWMCHBKS
9010018100471
€24.90
VAT included

Visa
Mastercard
PayPal

Description

Noctua NF-A9X14 HS-PWM CH.BK.S. Type: Fan, Fan diameter: 9.2 cm, Number of speeds: 2, Rotational speed (min): 600 RPM, Rotational speed (max): 2500 RPM, Noise level (high speed): 23.6 dB, Airflow: 57.5 m³/h, Maximum air pressure: 2.11 mmH2O, Bearing type: Self-Stabilising Oil-pressure Bearing (SSO). Width: 92 mm, Depth: 92 mm, Height: 14 mm. Product colour: Black
  • Award-winning NF-A9x14 design: Having received dozens of recommendations from the international press, Noctua’s NF-A9x14 has become a proven premium choice for slim 92mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world

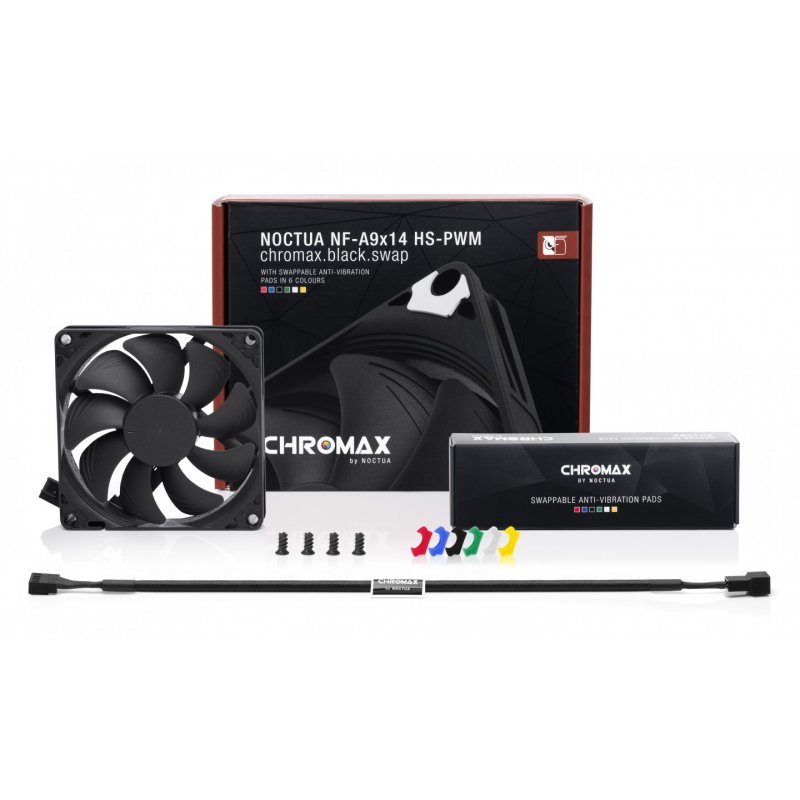

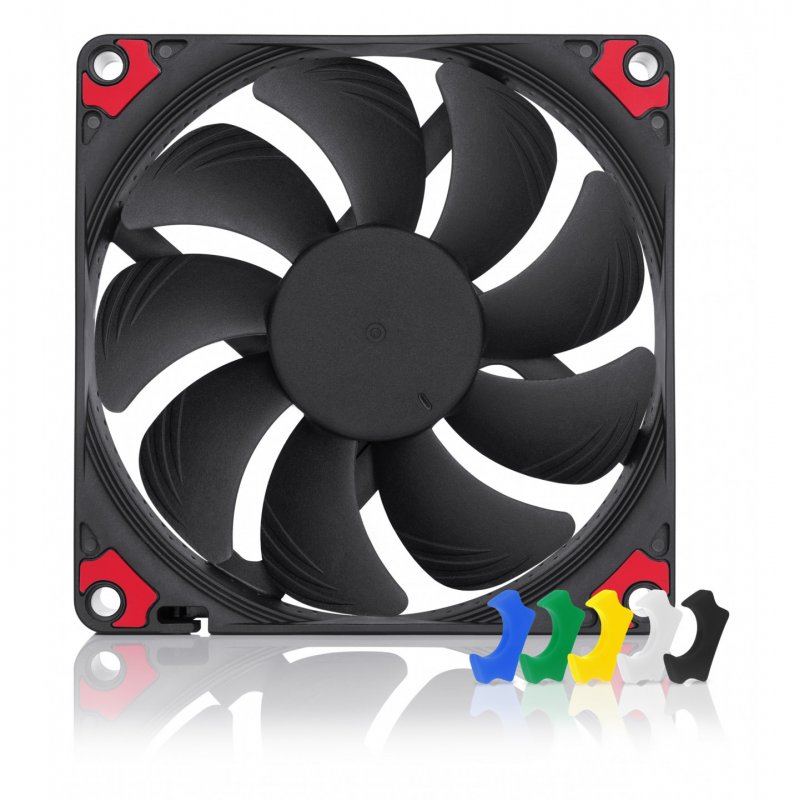

  • Self-adhesive anti-vibration pads in 6 colours: The NF-A9x14 PWM chromax.black.swap comes with 8 swappable, self-adhesive anti-vibration pads in black, white, red, blue, green and yellow respectively, which allow the fan to be fully colour-customised in order to coordinate it with other components or popular build schemes
  • Optional coloured cables: Noctua’s chromax line fans use a modular cabling system and come pre-fitted with a fully sleeved black NA-EC1 30cm cable. For refined colour coordination, white, red, blue, green and yellow 30cm NA-EC1 cables plus corresponding NA-YC1 y-cables are available separately
  • 14mm low profile design: Measuring only 14mm in thickness, the NF-A9x14 is much slimmer than standard 92x25mm fans. This makes it ideal for all applications where standard fans would take up too much space, such as low profile CPU coolers in HTPC builds or server environments
  • Flow Acceleration Channels: The NF-A9x14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise
  • AAO frame: Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency
  • Stepped Inlet Design: Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments
  • Inner Surface Microstructures: With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency
  • SSO2 Bearing: The NF-A9x14 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability
  • Stops at 0% PWM: When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow

Data sheet

Colour
Black
Garantie
2 ans
Marque
Noctua
Weight

Specific References

ean13
9010018100471
