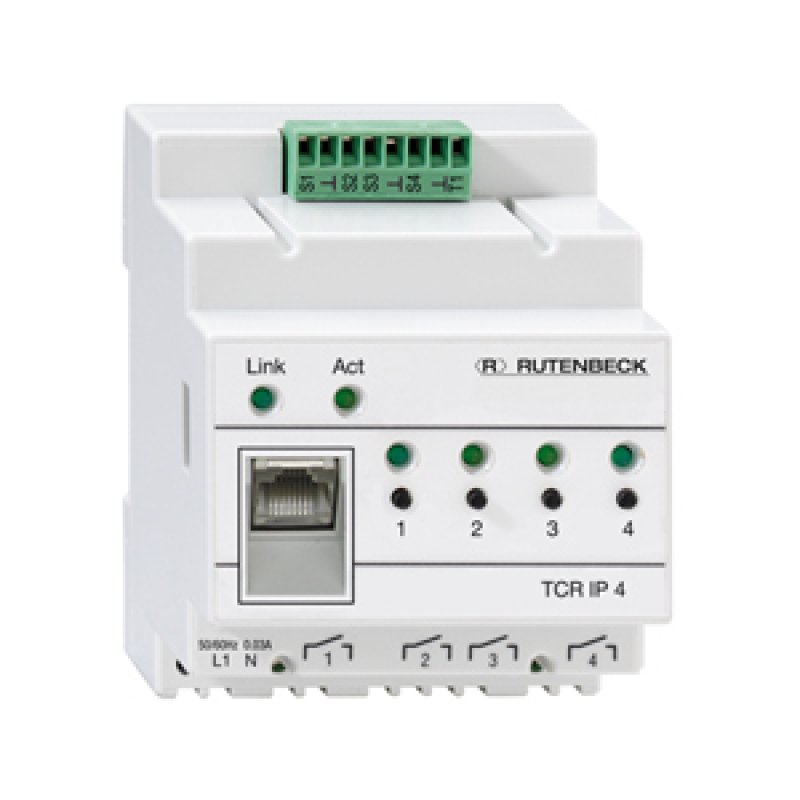

Rutenbeck Rutenbeck 700802610 electrical switch Smart switch
Rutenbeck 700802610, Smart switch, Wired, IP20, DIN-rail, 100 - 240 V, 100 - 240 V
700802610
4043921654507
€280.90
VAT included
Description
Rutenbeck 700802610. Type: Smart switch, Connectivity technology: Wired, International Protection (IP) code: IP20. AC input voltage: 100 - 240 V, AC voltage range: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 90 mm, Depth: 72 mm, Height: 65 mm. Package width: 91 mm, Package depth: 73 mm, Package height: 76 mm
- for DIN-rail mounting (72 mm)
- protection class IP20
- integrated power supply: 100 V-240V AC/50-60 Hz
- power consumption: 1 VA max
- temperature range -5°C to 45°C
- 4 switching outputs 10A/230V (cos phi 1, screw terminals up to 1,5mm)
- LED status indication of the switching outputs
- local operation of the switching outputs
- selectable name assignment of the 4 switching outputs
- 4 digital inputs for dry ccontacts (detachable screw terminals)
- analoge inlet for temperature Sensor (optional)
- inquiry of temperature via web browser
- temperature range -25 to 55°C, resolution 1°C
- buffering of settings and time after disconnection from 230V power supply
- clock timer with 5 turn on and 5 turn off times for each switching output
- automatic time synchronization
- network RJ45-port
- link and activity LED für networkports
- Reset via push button at the front
- access protection through passwords for admin and users
- cross-platform handling via web browser
- SmartPhone control via App for free (iOs)
- UDP protocoll assistance for all functions/parameters
- manual IP adreess specification or dynamic s
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4043921654507
