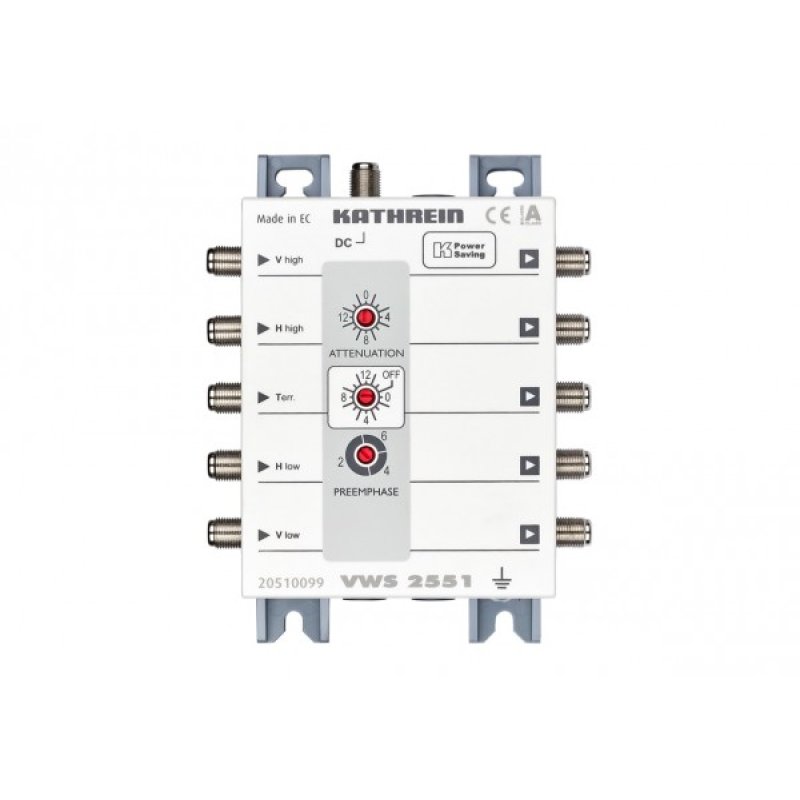

Kathrein Kathrein VWS 2551 satellite multiswitch 1 inputs 4 outputs
Kathrein VWS 2551, 1 inputs, 4 outputs, 950 - 2150 MHz, 45 dB, 16 - 15 dB, IP30
20510099
4021121522864
€204.90
VAT included
Description
Kathrein VWS 2551. Number of inputs: 1 inputs, Number of outputs: 4 outputs, Satellite Channel Router (SatCR) frequency range: 950 - 2150 MHz. Input voltage: 18 V, Input voltage range: 108 - 112 dBμV, Output voltage: 104 dBμV. Width: 112 mm, Depth: 43 mm, Height: 148 mm
- Distribution network amplifier for satellite and terrestrial range in a Kathrein sat IF distribution system with 4 x sat IF
- Five amplifiers (4 x sat IF and 1 x terrestrial range) in one housing
- High amplifier unit dynamic range
- High decoupling between amplifier units
- Terrestrial amplifier unit has CATV capability due to GaAs output stage
- For indoor installation
- Incrementally adjustable attenuator (1 dB graduation) for satellite and terrestrial range (all satellite branches are adjusted simultaneously)
- Incrementally adjustable pre-equalisation (2/4/6 dB) in satellite range (all satellite branches are adjusted simultaneously)
- Power supply to VWS 2551 and LNB feed by remote feeding from the multi-switch, e.g. EXR 2508, via the “horizontal low” satellite branch
- Optionally the power supply to the VWS 2551 can come from the DC connection using the NCF 18 power supply unit (not included)
- The power supply from the DC connection only supplies the amplifier itself, it does not take over the LNB feed
- Kathrein Power-Saving: In installations that support Kathrein Power-Saving (KPS), the LNB supply is switched off as soon as no receiver is in operation
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4021121522864
