- New

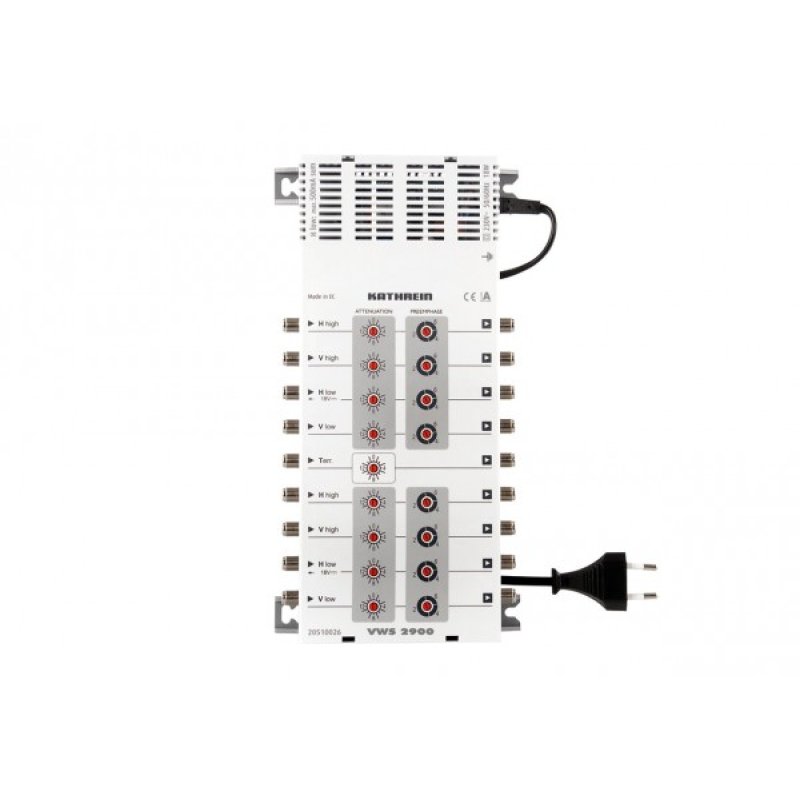

Kathrein Kathrein VWS 2900 satellite multiswitch 1 inputs 8 outputs
Kathrein VWS 2900, 1 inputs, 8 outputs, 950 - 2150 MHz, 40 dB, 17 - 24 dB, IP30
20510026
4021121468889
€409.90
VAT included
Description
Kathrein VWS 2900. Number of inputs: 1 inputs, Number of outputs: 8 outputs, Satellite Channel Router (SatCR) frequency range: 950 - 2150 MHz. Input voltage: 198 - 253 V, Input voltage range: 113 - 115 dBμV, Output voltage: 104 dBμV. Width: 148 mm, Depth: 43 mm, Height: 285 mm
- Distribution network amplifier for satellite and terrestrial range in a Kathrein sat IF distribution system with 8 x sat IF
- Nine amplifiers (8 x sat IF and 1 x terrestrial range) in one housing
- High amplifier unit dynamic range
- High decoupling between amplifier units
- Terrestrial amplifier unit has CATV capability due to GaAs output stage
- For indoor installation
- Incrementally adjustable attenuator (1 dB steps) in each amplifier unit for setting different input levels
- Fixed pre-equalisation in terrestrial amplifier unit
- Incrementally adjustable pre-equalisation (2/4/6 dB) in each satellite amplifier unit
- Low power consumption due to highly efficient, short circuit proof switched-mode power supply unit
- LNB remote feeding via horizontal low input. All other inputs are voltage-free (enabling operation with UAS 585)
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4021121468889
