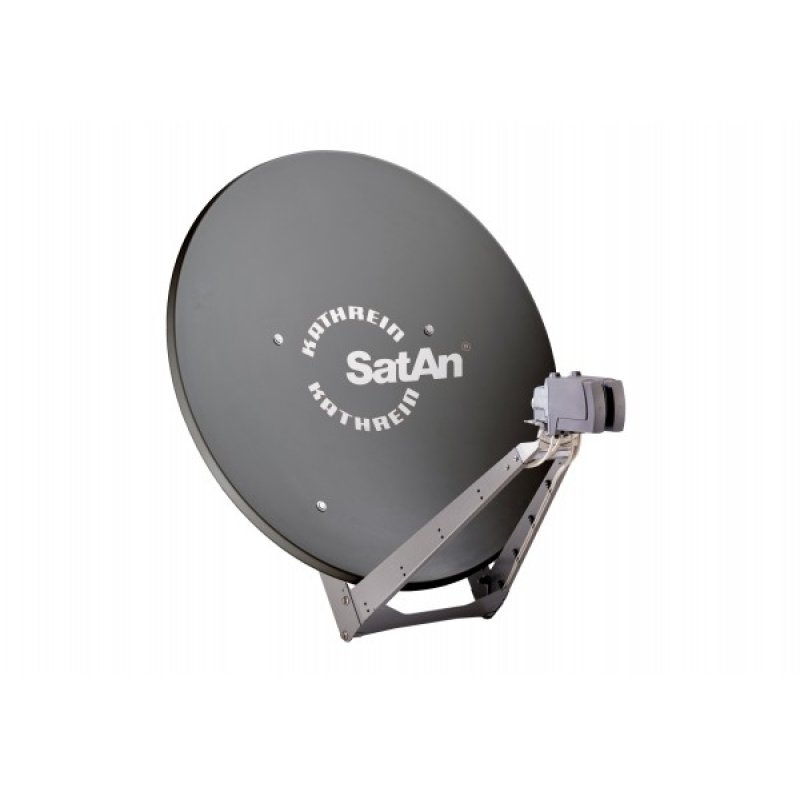

Kathrein Kathrein CAS 120/G satellite antenna 10.7 - 12.75 GHz Graphite
Kathrein CAS 120/G, 10.7 - 12.75 GHz, 0 - 1.43°, 30 dB, 5 - 50°, Graphite, 120 cm
20010010
4021121413759
€1,248.90
VAT included
Description
Kathrein CAS 120/G. Input frequency range: 10.7 - 12.75 GHz, Beamwidth: 0 - 1.43°, X-polarisation: 30 dB. Product colour: Graphite. Diameter: 120 cm, Width: 1234 mm, Depth: 1408 mm. Package weight: 29 kg
- Consists of reflector and feed system mounting
- Exchangeable multi-feed adaptor plate included
- Reflector in proven powder coated aluminium design
- 10 year corrosion durability guarantee in accordance with KATHREIN guarantee terms
- Powder coated galvanised sheet steel feed system mounting and mirror rear construction
- Patented multi-feed adaptor plate tilt facility in stable, corrosion resistant die-cast aluminium
- Weatherproof plastic snap-in cable holder for up to eight coaxial cables
- Optimum electrical specification with ultra-compact mechanical dimensions thanks to offset feed and tilting multi-feed adaptor plate for positioning feed systems at the typical side focuses for multi-feed reception
- Two universal feed systems can be mounted on the carrier arm without additional components for reception of 3° to 4° (e.g. ASTRA 19.2°/23.5°) or 6° offset satellites
- At 6° satellite offset, a central feed system can also be installed (three satellites each 3° offset)
- Also required for installation: ZAS 120 azimuth / elevation clamp
- Colour: Graphite
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4021121413759
