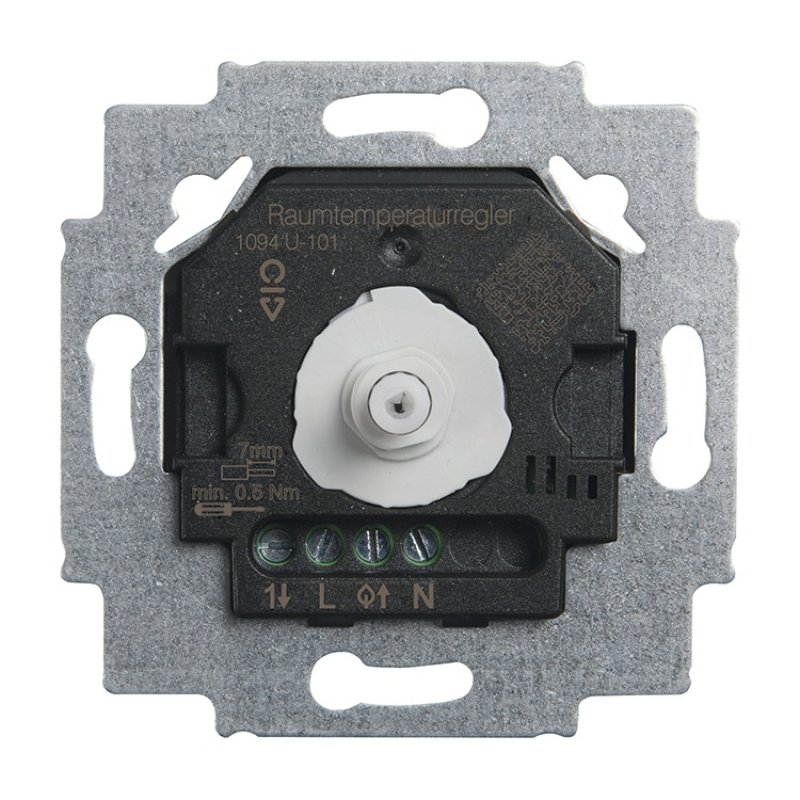

BUSCH-JAEGER Busch-Jaeger 1094 U-101 Flush-mounted Thermostatic actuator
Busch-Jaeger 1094 U-101, Thermostatic actuator, Flush-mounted, IP20, Black, Grey, Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or..., AC
2CKA001032A0524
4011395322765
€102.90
VAT included
Description
Busch-Jaeger 1094 U-101. Product type: Thermostatic actuator, Mounting type: Flush-mounted, International Protection (IP) code: IP20. Power source type: AC, Input voltage: 230 V, Input frequency: 50 Hz. Width: 71 mm, Depth: 30 mm, Height: 71 mm
- Mit Schließerkontakt, potentialgebunden
- Switch contact opens when the set temperature is reached
- Without claw fixation
- Mit separatem Anschluss für zeitgesteuerte Umschaltung auf ECO-Betrieb (3K)
- Class of temperature controller 1
- Contribution to space heating energy efficiency 1,0%
- Passend für Zentralscheibe 1794 R-xxx
- Rated voltage: 230 V~
- Rated frequency: 50 Hz
- Power dissipation: 0.05 W
- Rated current: 10 A
- Protection class (device): IP 20
- Temperature range (device): 5 °C - 30 °C
- Dimensions: (L x W x D): 71 mm x 71 mm x 30 mm
- Mounting depth: 25 mm
- Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)
- Servo-valves, "closed when de-energized", are necessary for connection to thermostat. e.g. Article No. 6164/10-, see KNX chapter
- Switching temperature difference: ± 0.5 K
- Lieferbar ab Februar 2023
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4011395322765
