- Rupture de stock, ce produit n'est plus commercialisé

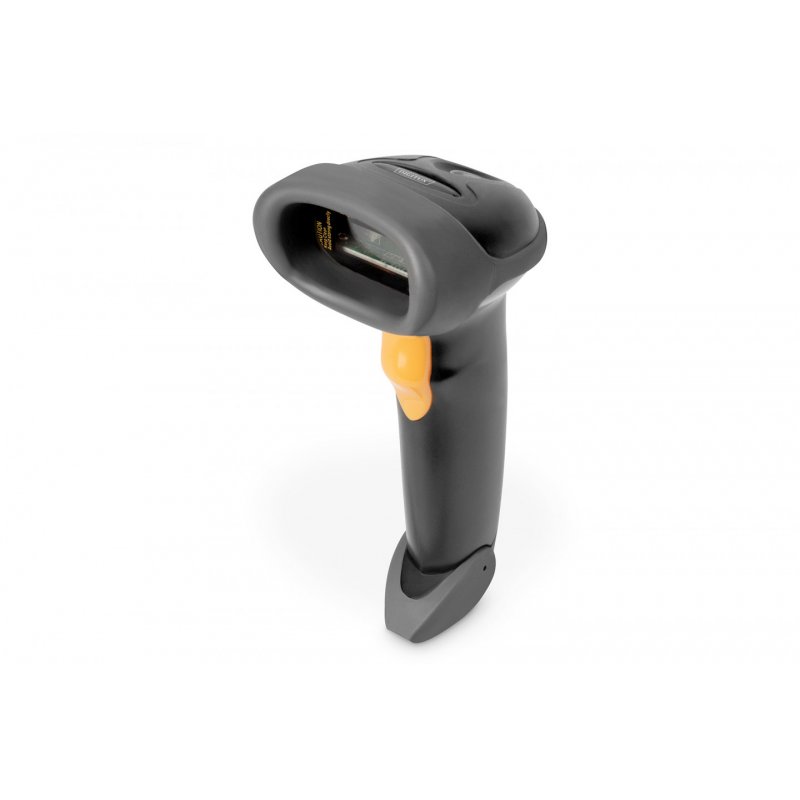

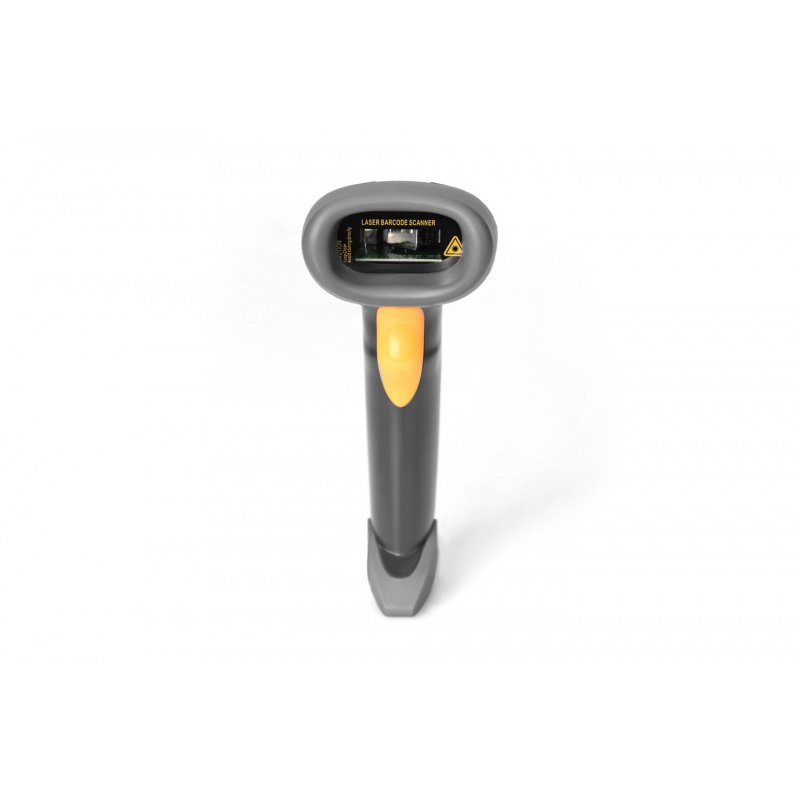

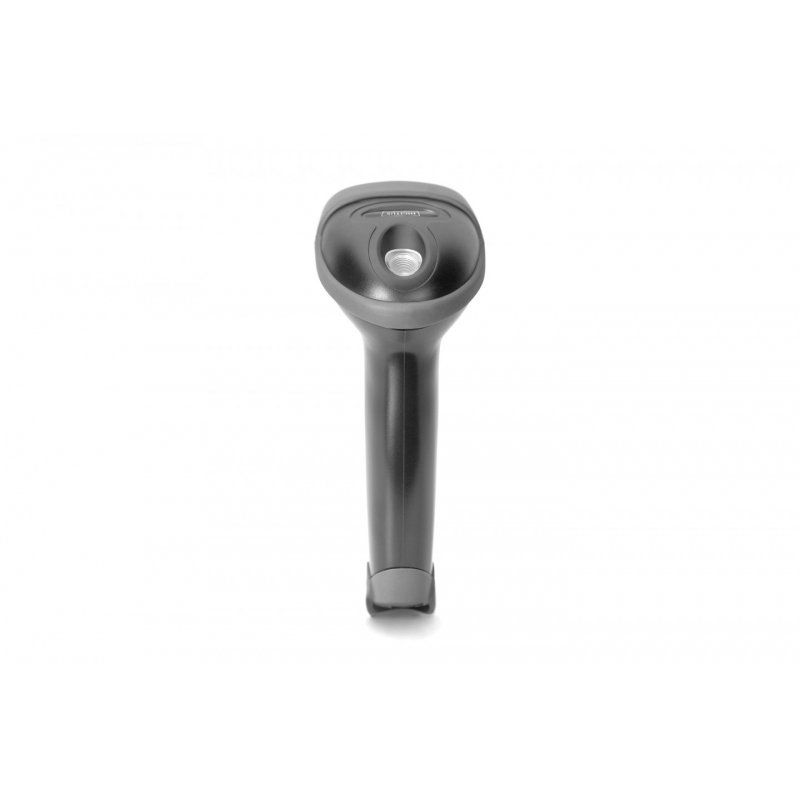

ASSMANN Digitus 1D Barcode Hand Scanner
Digitus 1D Barcode Hand Scanner, Handheld bar code reader, 1D, Linear, Codabar, Code 128, Code 32, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1-128..., -45 - 45°, 30 cm
DA-81001
4016032473633
Description
Digitus 1D Barcode Hand Scanner. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Linear. Connectivity technology: Wired, Standard interfaces: RJ-45, USB, Cable length: 2 m. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), International Protection (IP) code: IP54. Power source type: USB, Input voltage: 5 V, Power consumption: 100 mA. Weight: 110 g, Width: 63 mm, Depth: 87 mm
- 1D Scan
- Power consumption: 3.3 -5 V DC, 100 mA (1 µA while idle)
- Power supply: USB
- Scan type: bidirectional
- Sensor: Linear
- CPU: ARM 32-Bit Cortex
- Interface: USB
- Light source: 650 nm visual laser diode
- Trigger: Pushbutton
- Number of scans: 200 per second
- Error rate in bits: 1/5 million, 1/20 million
- Resolution: ≥3.3mil
- Scan width: 30 cm
- Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil @ 5 mm - 600 mm; 35 mil @ 10 mm-1000 mm
- Scan angle: Angle of rotation ±30°, angle of inclination ± 45°, angle of declination ± 60°
- Decoding types: EAN-8, EAN-13, EAN-128, Code 39, Code 93, UPC, GS1 Databar, GS1-128, ISSN, MSI, Industrial 2 of 5, JAN-8, JAN-13, Code 32, IATA, ITF, ITF-14, Matrix 2 of 5, ITF-6, Rss limited, Rss extended, Industrial 25, Code 128, Codabar, Big Code
- Button cycle: 500,000 times
- Laser cycle: 10,000 times
- Compatible with Windows/Android/iOS/Mac/Linux systems
- Material: ABS + PC
- Protection type: IP54
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Cable: 2 m (USB - RJ45)
- Dimensions (HxWxD): 16.5 x 6.3 x 8.7 cm
- Weight: 110 g
- Color: Black/gray
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DA-81001
- Weight
- 1
Specific References
- ean13
- 4016032473633
