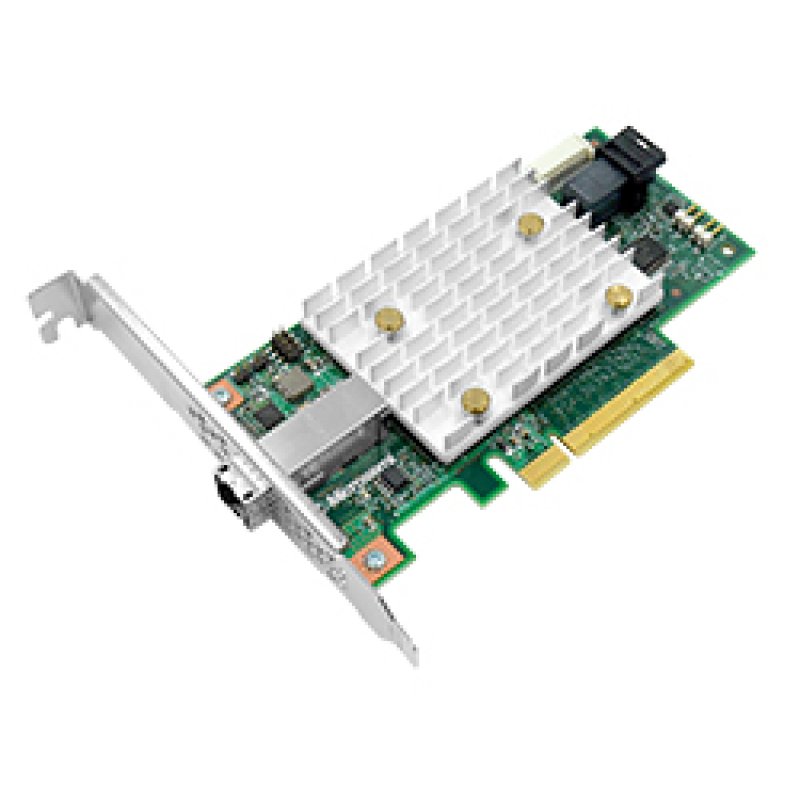

MICROCHIP STORAGE SOLUTION Microsemi SmartHBA 2100-4i4e interface cards/adapter Internal Mini-SAS HD

Microsemi SmartHBA 2100-4i4e, PCIe, Mini-SAS HD, Low-profile, PCIe 3.0, 1400000 h, CE, FCC, UL, C-tick, VCCI, KCC, CNS
2292200-R
0760884157749
€456.04
VAT included

Visa
Mastercard
PayPal

Description

Microsemi SmartHBA 2100-4i4e. Host interface: PCIe, Output interface: Mini-SAS HD, Expansion card form factor: Low-profile. Mean time between failures (MTBF): 1400000 h, Certification: CE, FCC, UL, C-tick, VCCI, KCC, CNS. Chipset: SmartIOC 2100, Data transfer rate (max): 12 Gbit/s, RAID levels: 0, 1, 5, 10. Windows operating systems supported: Windows 10, Windows 7 x64, Windows 8 x64, Server operating systems supported: Windows Server 2008 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64. Width: 167 mm, Height: 64 mm
  • Combines full HBA functionality with basic hardware RAID
  • Offers basic RAID functionality for up to 32 devices supporting RAID levels 0, 1, 10, and 5 in conjunction with full HBA functionality for up to 238 device, in the same solution
  • Broad operating system support through highly efficent, low-latency PQIdriver driver (fully open-source for Linux/ FreeBSD)
  • Performance of up to 1.7 million random read IOPS with extremely low-latency 4 KB I/Os Highlights
  • Up to 24 native SAS/SATA ports; low-profile MD2 form factor
  • 12 Gbps SAS data rates using mini-SAS HD connectors
  • Significant power savings delivers lowest total cost of ownership versus competing solutions
  • The unified maxView management tools and drivers across the Microsemi HBA, RAID, and expander solutions enable easy manageability across the entire product line
  • Proven compatibility with existing Microsemi Adaptec solutions, multiple operating systems, servers, enclosures, SSDs, HDDs, and LTO tape drives
  • Uses the latest 28 nm SmartIOC 2100 SAS/SATA protocol controller to drive efficiency and performance while also having the industry's lowest power consumption
  • Quality and reliability through the unified, hardened Smart Storage stack, which is deployed in over 30 million servers

Data sheet

Colour
Black
Garantie
2 ans
Marque
MICROCHIP STORAGE SOLUTION - RAI
Weight

Specific References

ean13
0760884157749
