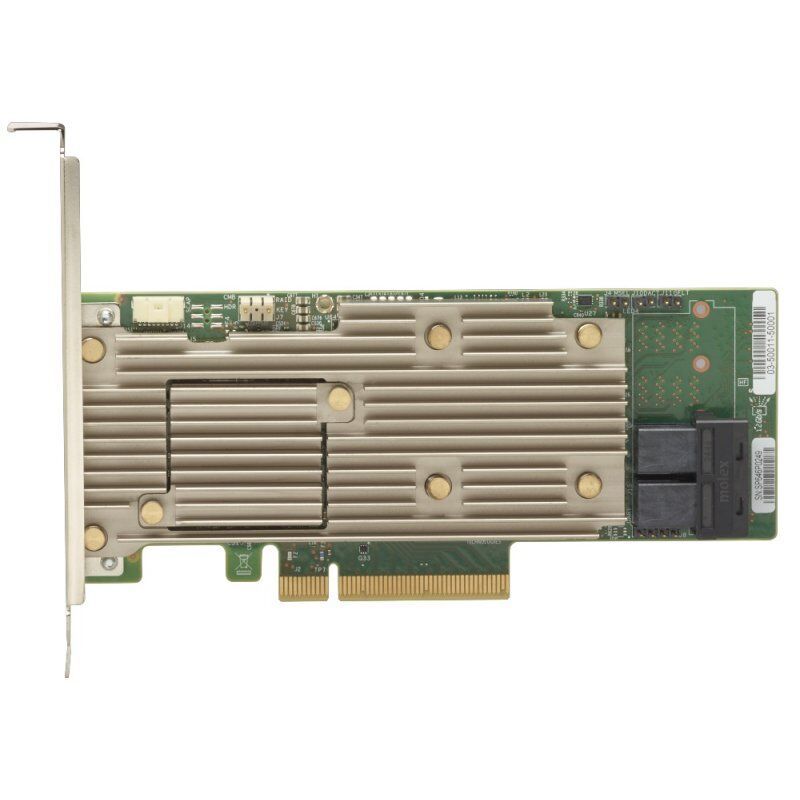

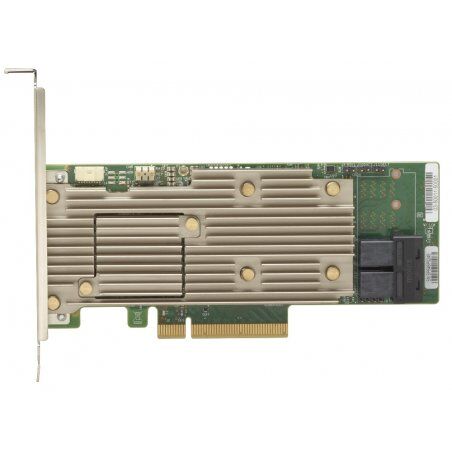

Lenovo Lenovo 7Y37A01084 RAID controller PCI Express x8 3.0 12000 Gbit/s

Lenovo 7Y37A01084, SAS, Serial ATA III, PCI Express x8, 0, 1, 10, 5, 50, 6, 60, 12000 Gbit/s, LSI SAS3508, FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe...
7Y37A01084
0889488433452
€725.76
VAT included

Visa
Mastercard
PayPal

Description

Lenovo 7Y37A01084. Supported storage drive interfaces: SAS, Serial ATA III, Host interface: PCI Express x8. RAID levels: 0, 1, 10, 5, 50, 6, 60, Data transfer rate: 12000 Gbit/s, Chipset: LSI SAS3508. Linux operating systems supported: SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 12, Compatible operating systems: Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 VMware vSphere ESXi 6.0..., Server operating systems supported: Windows Server 2012 R2, Windows Server 2016. PCI Card form factor: Full-height (low-profile)
  • CIe 3.0 x8 host interface
  • 12 Gbps SAS/SATA RAID controllers, based on the Broadcom MegaRAID 9460 adapter family
  • 2GB or 4GB of integrated flash-backed cache
  • Connectivity for up to 2, 8, 16 or 24 internal SAS or SATA drives
  • Support for intermixing SAS and SATA HDDs and SSDs. Mixing SAS and SATA drives in the same array is not supported. Mixing of HDDs and SSDs in the same array is not supported
  • Support for intermixing of 12 Gbps and 6 Gbps drives
  • Support for RAID 0, 1, 10, 5, 50, 6 and 60 standard (The 930-4i supports only RAID 0, 1 in the SN550 and RAID 0, 1, 5, 6 in the SN850 because those blade servers only support two and four drives respectively)
  • Support for JBOD (non-RAID) drive state
  • Support for up to 64 virtual disks, up to 128 arrays, up to 16 virtual disks per array
  • Support for logical drive sizes greater than 2 TB
  • Configurable stripe size from 64 KB up to 1 MB
  • Supports 512e, 512n and 4K sector formatted drives
  • Compliant with Disk Data Format (DDF) configuration on disk (CoD)
  • S.M.A.R.T. support
  • Configuration through
  • XClarity Provisioning Manager UEFI interface
  • XClarity Controller web interface
  • XClarity Administrator Configuration Patterns
  • StorCLI command-line interface
  • LSI Storage Authority (LSA) GUI interface
  • UEFI Human Interface Infrastructure (HII)

Data sheet

Colour
Black
Garantie
2 ans
Marque
Lenovo
Weight

Specific References

ean13
0889488433452
