1000) 1U Blue

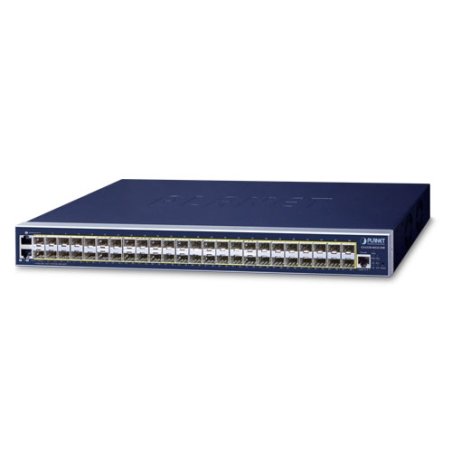

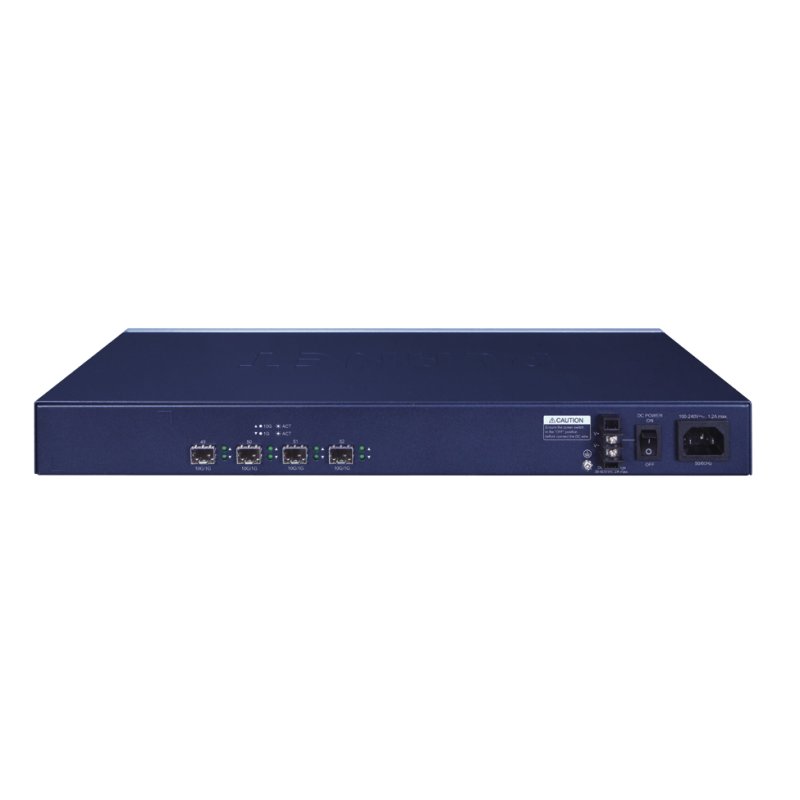

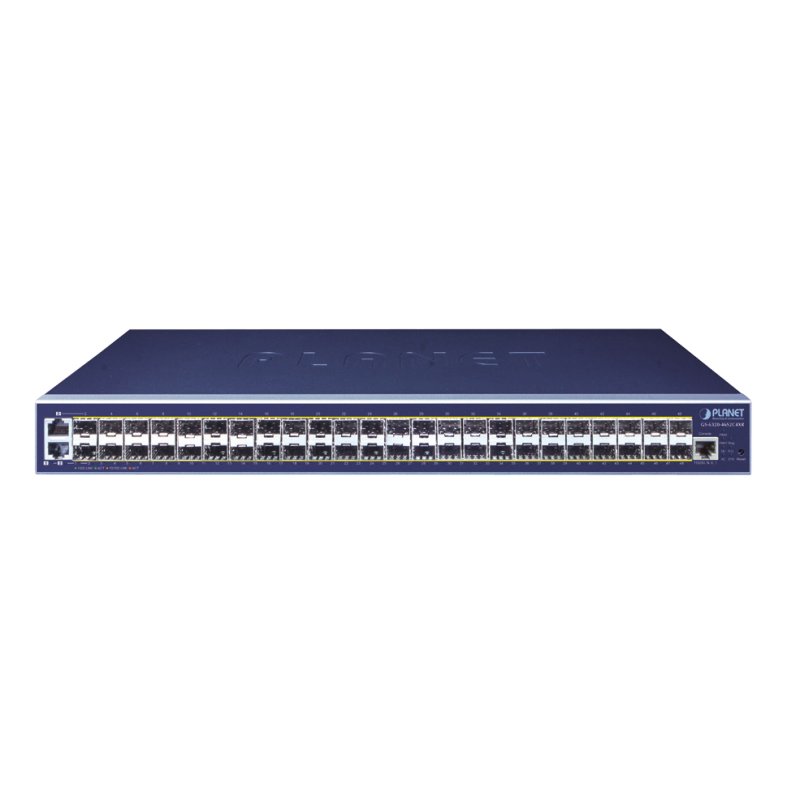

Name: PLANET GS-6320-46S2C4XR network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Blue
Brand: PLANET
SKU: 4711605285254
Price: 1185.9 EUR
Availability: InStock

PLANET GS-6320-46S2C4XR, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U

Manufacturer reference 4711605285254

EAN13 4711605285254

€1,185.90

Last units

PLANET GS-6320-46S2C4XR. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input voltage: 36 - 60 V. Rack mounting, Form factor: 1U

Physical Port
48 100/1000BASE-X mini-GBIC/SFP slots
Two 10/100/1000BASE-T RJ45 copper ports, shared with Port-1 to Port-2
4 10GBASE-SR/LR SFP slots, compatible with 1000BASE-SX/LX/BX SFP
RS-232 RJ45 console interface for switch basic management and setup
Layer 3 IP Routing Features
IP dynamic routing protocol supports OSPFv2
Routing interface provides per VLAN routing mode
Supports maximum 128 static routes and route summarization
Supports hardware-based wire-speed VLAN routing
Layer 2 Features
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support
Broadcast/Multicast/Unknown unicast
Supports VLAN
IEEE 802.1Q tagged VLAN
Up to 255 VLANs groups, out of 4095 VLAN IDs
Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
Private VLAN Edge (PVE)
Port Isolation
MAC-based VLAN
IP Subnet-based VLAN
Protocol-based VLAN
VLAN Translation
Voice VLAN
GVRP (GARP VLAN Registration Protocol)
Supports Spanning Tree Protocol
STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 26 trunk groups, up to 16 ports per trunk group
Provides port mirror (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
Supports G.8032 ERPS (Ethernet Ring Protection Switching)
Quality of Service
Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification
IEEE 802.1p CoS
TOS/DSCP/IP Precedence of IPv4/IPv6 packets
IP TCP/UDP port number
Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
Traffic policies on the switch port
DSCP remarking
