1000) Power over Ethernet (PoE) Black

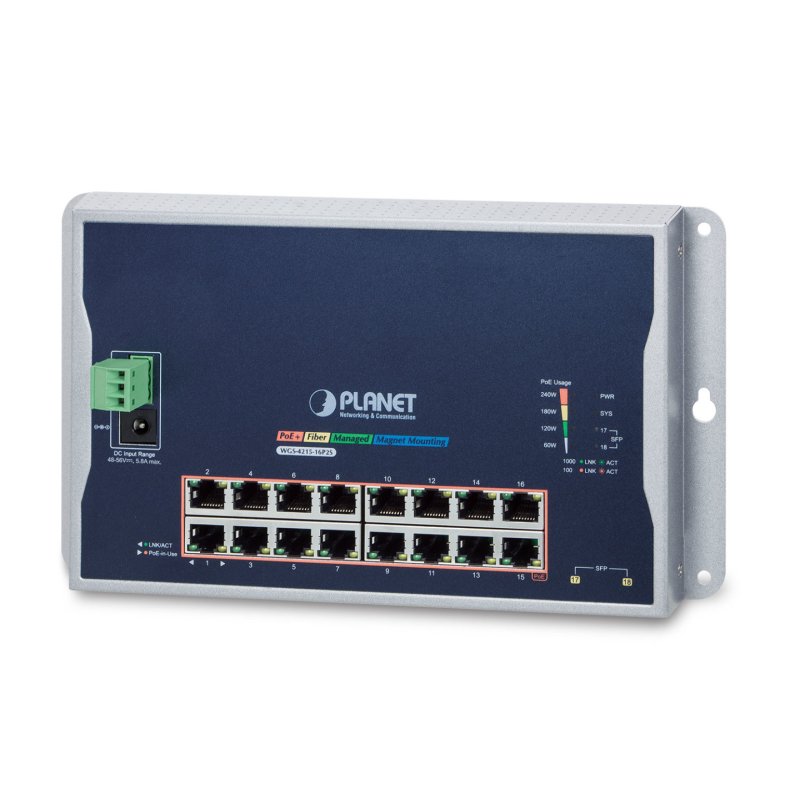

Name: PLANET WGS-4215-16P2S network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: PLANET
SKU: 4711605283908
Price: 439.9 EUR
Availability: InStock

PLANET WGS-4215-16P2S, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

Manufacturer reference 4711605283908

EAN13 4711605283908

€439.90

In stock

PLANET WGS-4215-16P2S. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input voltage: 48 - 56 V. Power connector: Terminal block (3-pin). Power over Ethernet (PoE). Wall mountable

Physical Port
16-Port 10/100/1000BASE-T Gigabit RJ45 copper with IEEE 802.3at PoE Injector function
2 100/1000BASE-X mini-GBIC/SFP slots
Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 16 ports of IEEE 802.3af/802.3at devices powered
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters in standard mode and 250m in extend mode
PoE management
Total PoE power budget control
Per port PoE function enable/disable
PoE port power feeding priority
Per PoE port power limitation
PD classification detection
PD alive check
PoE schedule
Industrial Case and Installation
Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design
IP40 metal case protection
Supports -10 to 60 degrees C operating temperature
Supports ESD 6KV DC Ethernet protection
Dual power input design
48V~56V DC wide power input with polarity reverse protect function
3-pin terminal block or DC jack connector
Switching
Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
8K MAC address table size
10K jumbo frame
Automatic address learning and address aging
Supports CSMA/CD protocol
Layer 2 Features
Supports VLAN
IEEE 802.1Q tagged VLAN
Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
Protocol VLAN
Voice VLAN
Private VLAN (Protected port)
Management VLAN
GVRP
Supports Spanning Tree Protocol
STP (Spanning Tree Protocol)
RSTP (Rapid Spanning Tree Protocol)
MSTP (Multiple Spanning Tree Protocol)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
Supports Link Aggregation
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Provides port mirror (many-to-1)
Loop protection to avoid broadcast loops
Quality of Service
Ingress/Egress Rate Limit per port bandwidth control
Traffic classification
IEEE 802.1p CoS
TOS/DSCP/IP precedence of IPv4/IPv6 packets
Strict priority and Weighted Round Robin (WRR) CoS policies
