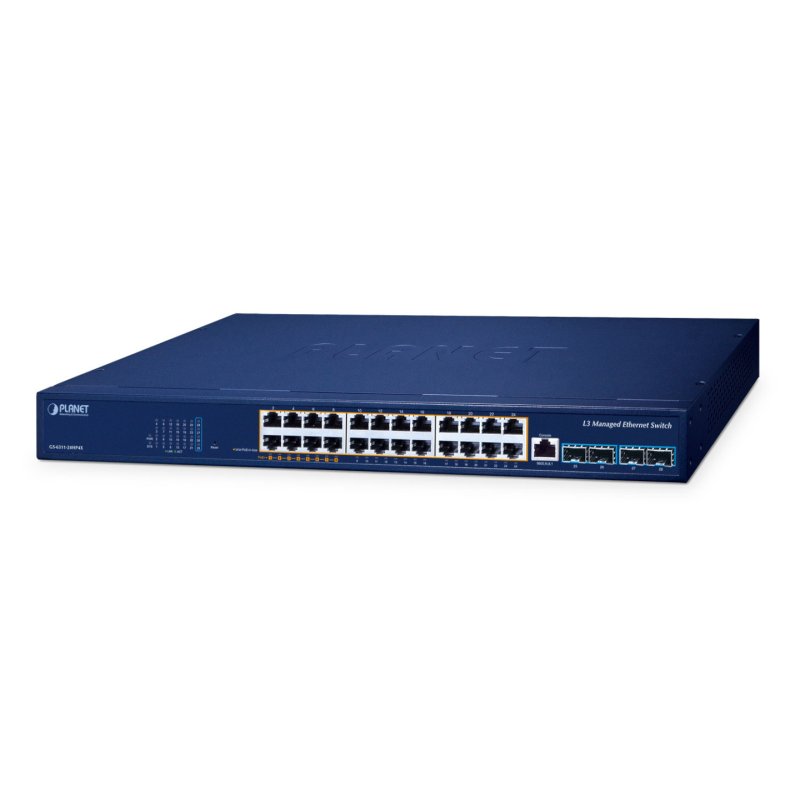

Name: PLANET GS-6311-24HP4X network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Brand: PLANET
SKU: 4711605287265
Price: 719.9 EUR
Availability: InStock

PLANET GS-6311-24HP4X, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)

Manufacturer reference 4711605287265

EAN13 4711605287265

€719.90

Last units

PLANET GS-6311-24HP4X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4. Full duplex. MAC address table: 32000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power over Ethernet (PoE)

Physical Ports
．8 10/100/1000BASE-T with 90W 802.3bt PoE injector function (Ports 1 to 8)
．16 10/100/1000BASE-T with 32W 802.3at PoE injector function (Ports 9 to 24)
．4 10GBASE-SR/LR SFP slots, compatible with 1000BASE-SX/LX/BX SFP (Ports 25 to 28)
．RJ45 to DB9 console interface for switch basic management and setup
IP Routing Features
．IP routing protocol supports RIPv1/v2, OSPFv2
．Routing interface provides per VLAN routing mode
．Supports route redistribution
Layer 2 Features
．Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
．Prevents packet loss flow control
．．IEEE 802.3x pause frame flow control in full-duplex mode
．．Back pressure flow control in half-duplex mode
．High performance Store-and-Forward architecture, broadcast storm control, port loopback detection
．32K MAC address table, automatic source address learning and aging
．Supports VLAN
．．IEEE 802.1Q tag-based VLAN
．．GVRP for dynamic VLAN management
．．Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
．．Private VLAN Edge (PVE) supported
．．GVRP protocol for Management VLAN
．．Protocol-based VLAN
．．MAC-based VLAN
．．IP subnet VLAN
．Supports Link Aggregation
．．Maximum 64 trunk groups, up to 8 ports per trunk group
．．IEEE 802.3ad LACP (Link Aggregation Control Protocol)
．．Cisco ether-channel (static trunk)
．Supports Spanning Tree Protocol
．．STP, IEEE 802.1D (Classic Spanning Tree Protocol)
．．RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
．．MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
．．Supports BPDU & root guard
．Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
．Provides port mirror (many-to-1)
．Supports G.8032 ERPS (Ethernet Ring Protection Switching)
Quality of Service
．8 priority queues on all switch ports
．Support for strict priority and WRR (Weighted Round Robin) CoS policies
．Traffic classification
．．IEEE 802.1p CoS/ToS
．．IPv4/IPv6 DSCP
．．Port-based WRR
．Strict priority and WRR CoS policies
Multicast
．Supports IPv4 IGMP snooping v1, v2 and v3
．Supports IPv6 MLD v1 and v2 snooping
．Querier mode support
．Supports Multicast VLAN Register (MVR)
Security
．IEEE 802.1x port-based network access authentication
．MAC-based network access authentication
．Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
．TACACS login users access authentication
．IP-based Access Control List (ACL)
．MAC-based Access Control List
．Supports DHCP snooping
．Supports ARP inspection
．IP Source Guard prevents IP spoofing attacks
．Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
