PLANET PLANET IPOE-270-12V network switch Power over Ethernet (PoE) Blue

Name: PLANET IPOE-270-12V network switch Power over Ethernet (PoE) Blue
Brand: PLANET
SKU: 4711605285032
Price: 331.9 EUR
Availability: InStock

PLANET IPOE-270-12V, Power over Ethernet (PoE), Wall mountable

Manufacturer reference 4711605285032

EAN13 4711605285032

€331.90

Last units

PLANET IPOE-270-12V. Basic switching RJ-45 Ethernet ports quantity: 4. Networking standards: IEEE 802.3bt. Power over Ethernet (PoE). Wall mountable

Physical Ports
Two 10/100/1G/2.5G/5GBASE-T Gigabit RJ45 interfaces
2-port data power input
2-port data power output
Power Requirements

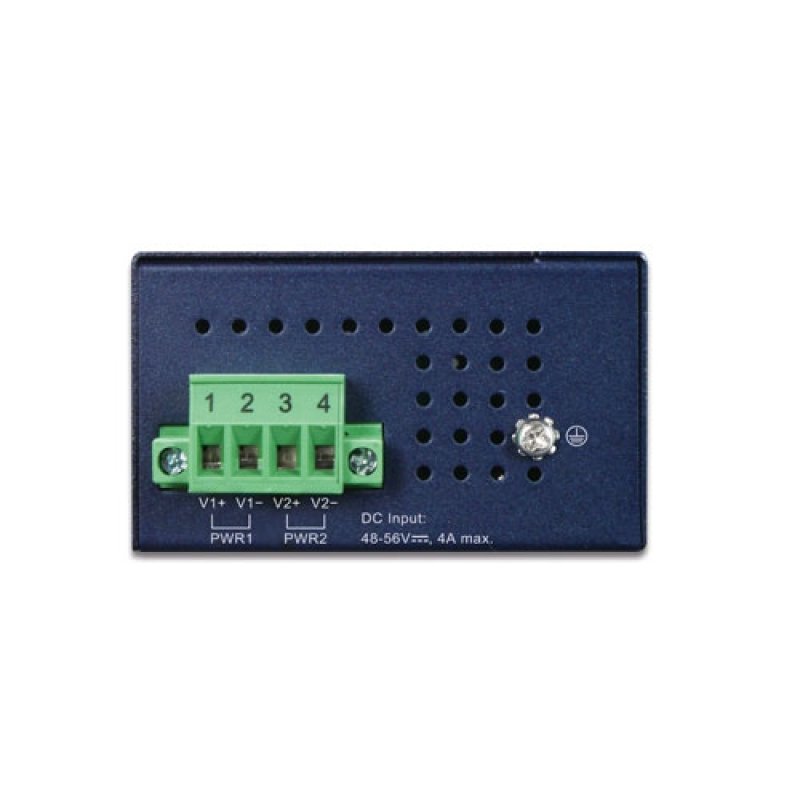

1 terminal block for master and slave power input with reverse polarity protection
Power Range: 48 ~ 56V DC redundant power (IPOE-270)
Power Range: 12 ~ 56V DC redundant power (IPOE-270-12V)
Power over Ethernet
Complies with 802.3bt Power over Ethernet Plus Plus end-span and mid-span PSE
Backward compatible with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PSE
Up to 2 IEEE 802.3at/IEEE 802.3bt PoE devices powered
Supports PoE output power up to 90 watts for each PoE port
All PoE ports support 802.3at end-span/mid-span PoE 36-watt injector function
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Forwards both Ethernet data and PoE power to remote device over a 100-meter (328ft.) distance

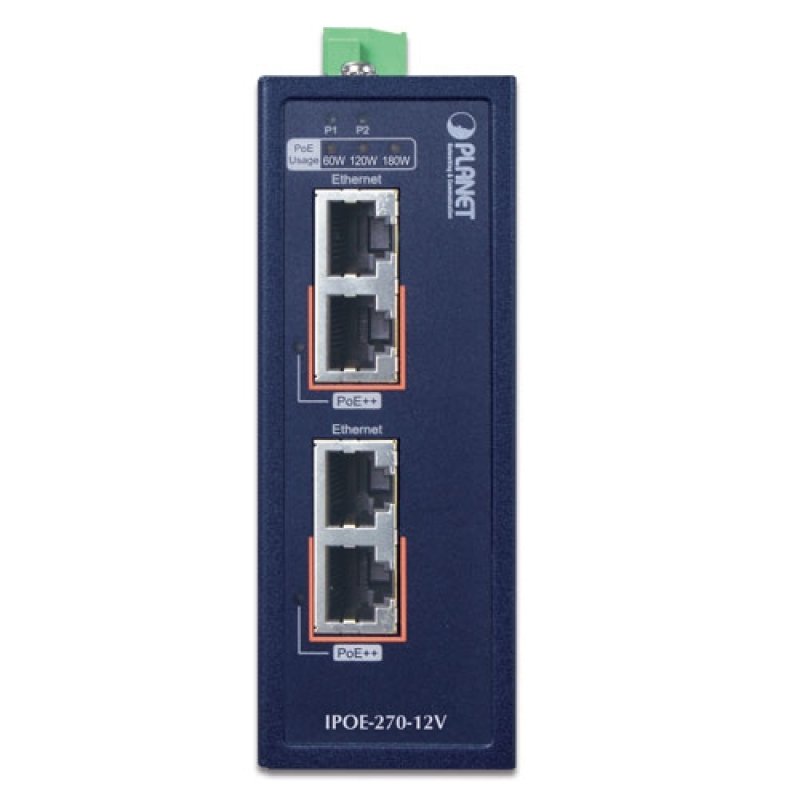

LED Indicators
LED indicators for power LEDs (Power 1 and Power 2)
LED indicators for PoE Usage (60W,120W and 180W)
Industrial Case and Installation
IP30 metal case
DIN-rail and wall-mount designs
Supports 6KV DC Ethernet ESD protection
40 to 75 degrees C operating temperature
Plug and Play installation
