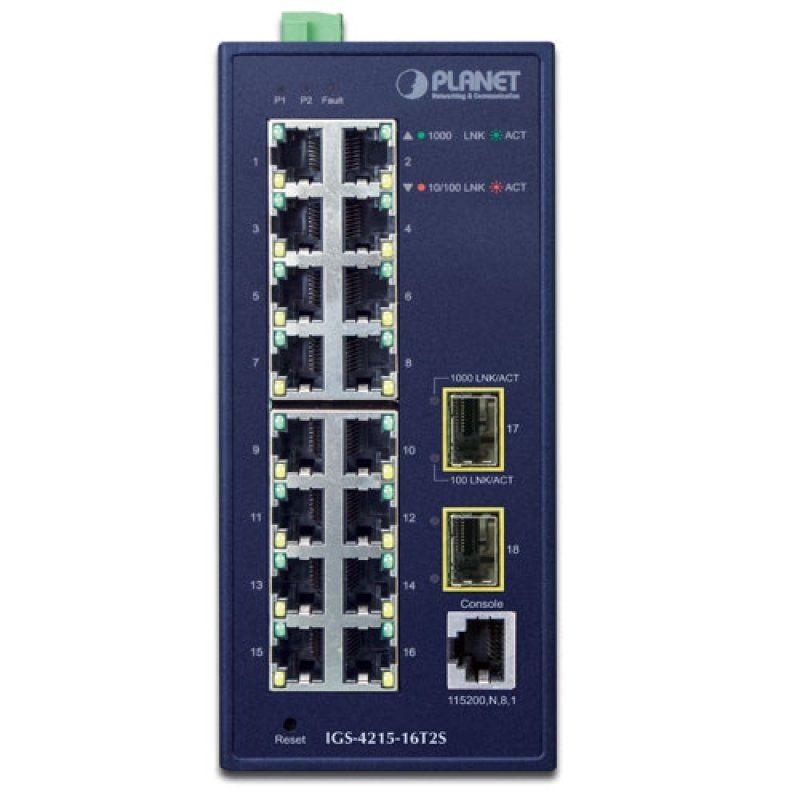

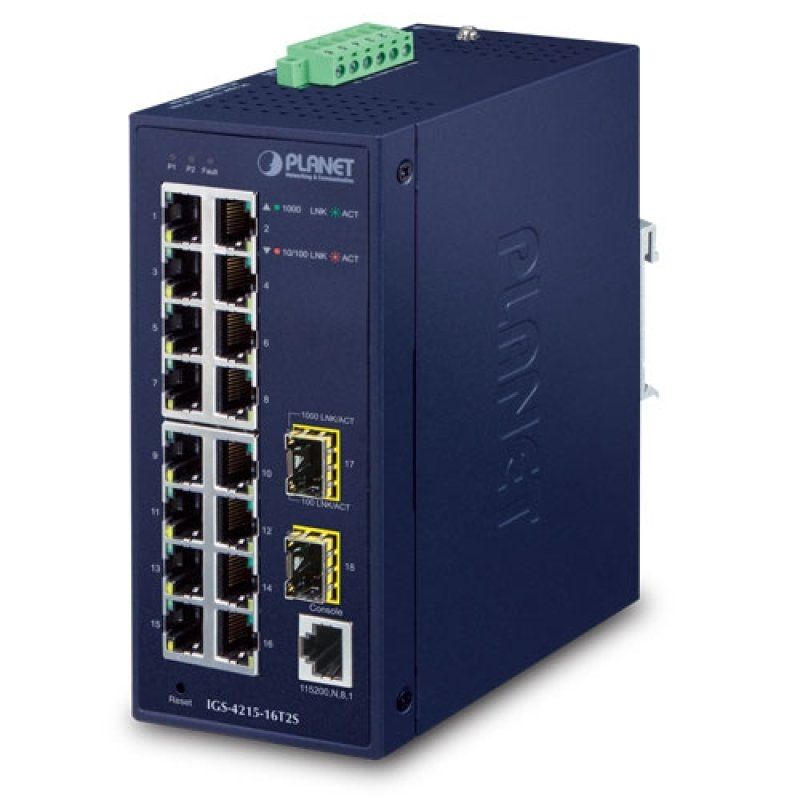

Name: PLANET IGS-4215-16T2S network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Blue
Brand: PLANET
SKU: 4711605284899
Price: 449.9 EUR
Availability: InStock

PLANET IGS-4215-16T2S, Managed, L2/L4, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

Manufacturer reference 4711605284899

EAN13 4711605284899

€449.90

In stock

PLANET IGS-4215-16T2S. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input voltage: 12 - 48 V. Wall mountable

Physical Port
16-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
2 SFP slot interfaces, supporting 100/1000BASE-X SFP transceiver type auto detection
1-port RJ45 console interface for basic management and setup
Industrial Case and Installation

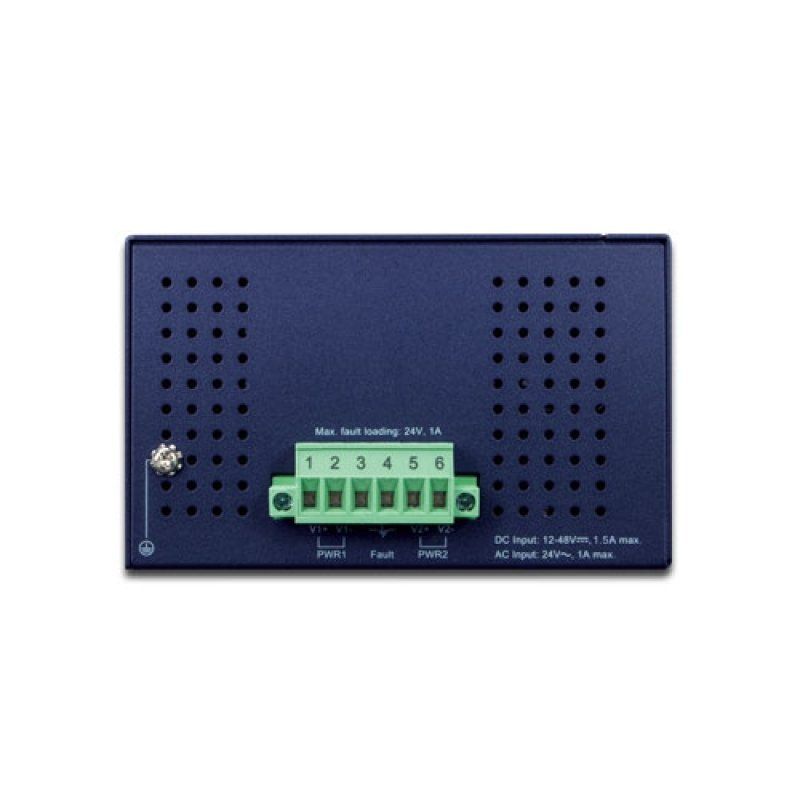

Dual power input, redundant power with reverse polarity protection
DC 12 to 48V input or AC 24V input
Active-active redundant power failure protection
Backup of catastrophic power failure on one supply
Fault tolerance and resilience
IP30 metal case
DIN-rail and wall-mount designs
Supports ESD 6KV DC Ethernet protection
Supports -40 to 75 degrees C operating temperature
Free fall, shock-proof and vibration-proof for industries
Switching
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
8K MAC address table size
10K jumbo frame
Automatic address learning and address aging
Supports CSMA/CD protocol
Layer 2 Features
Supports VLAN
IEEE 802.1Q tagged VLAN
Up to 256 VLAN groups, out of 4096 VLAN IDs
Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
Private VLAN (Protected port)
Protocol-based VLAN
Voice VLAN
GVRP
Supports Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Up to 8 trunk groups
Up to 8 ports per trunk group with 16Gbps bandwidth
Provides port mirror (many-to-1)
IPv6 MAC/VLAN/Multicast Address Table
Loop protection to avoid broadcast loops
Quality of Service
Ingress/Egress Rate Limit per port bandwidth control
Support 8 priority queues on all switch ports
Traffic classification
IEEE 802.1p CoS
IP TOS/DSCP/IP precedence of IPv4/IPv6 packets
IP TCP/UDP port number
Typical network application
DSCP remarking
Multicast
Supports IPv4 IGMP snooping v1, v2, v3
Supports IPv6 MLD snooping v1, v2
Querier mode support
IGMP snooping port filtering
MLD snooping port filtering
