1000) Power over Ethernet (PoE) Blue

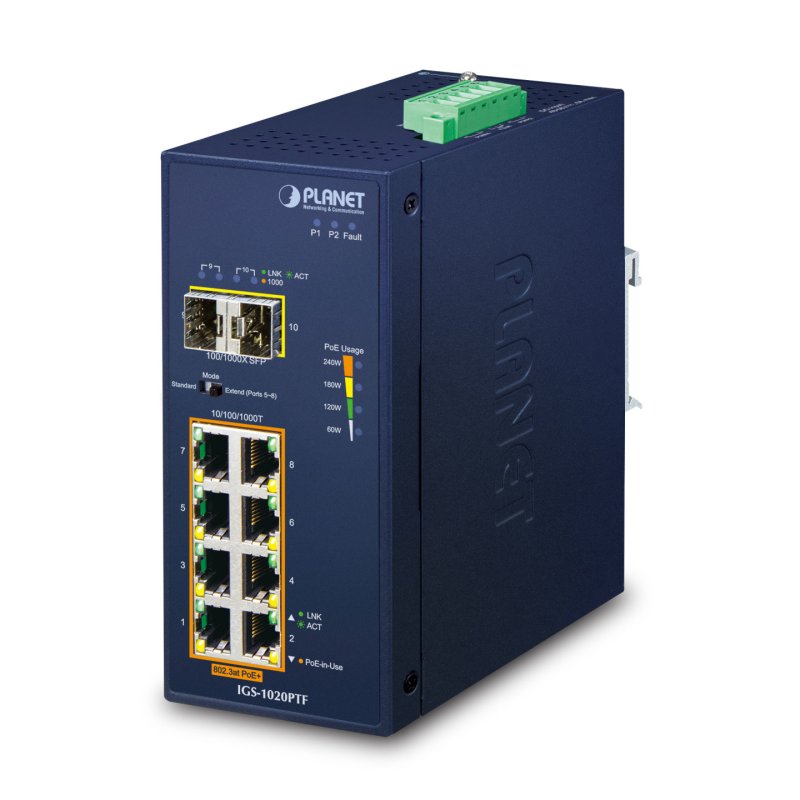

Name: PLANET IP30 Ind 8-P 10/100/1000T Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue
Brand: PLANET
SKU: 4711605284943
Price: 334.9 EUR
Availability: InStock

PLANET IP30 Ind 8-P 10/100/1000T, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

Manufacturer reference 4711605284943

EAN13 4711605284943

€334.90

In stock

PLANET IP30 Ind 8-P 10/100/1000T. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z. DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable

Physical Port
Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3af/at PoE Injector (Ports 1 to 8)
Two 100/1000BASE-X SFP slots for SFP transceiver type auto detection (Ports 9 to 10)
Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 8 ports of IEEE 802.3af/802.3at devices powered
240-watt PoE budget
Supports PoE power up to 30 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters
Industrial Case and Installation
IP30 metal case
DIN-rail and wall-mount designs
48~56V DC redundant power with reverse polarity protection
Supports 6KV DC Ethernet ESD protection
Supports -40 to 75 degrees C operating temperature
Switching
Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
8K MAC address table size
20Gbps switch fabric
9K jumbo frame
Hardware-based DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmission distance of 250m at speed of 10Mbps
Automatic address learning and address aging
