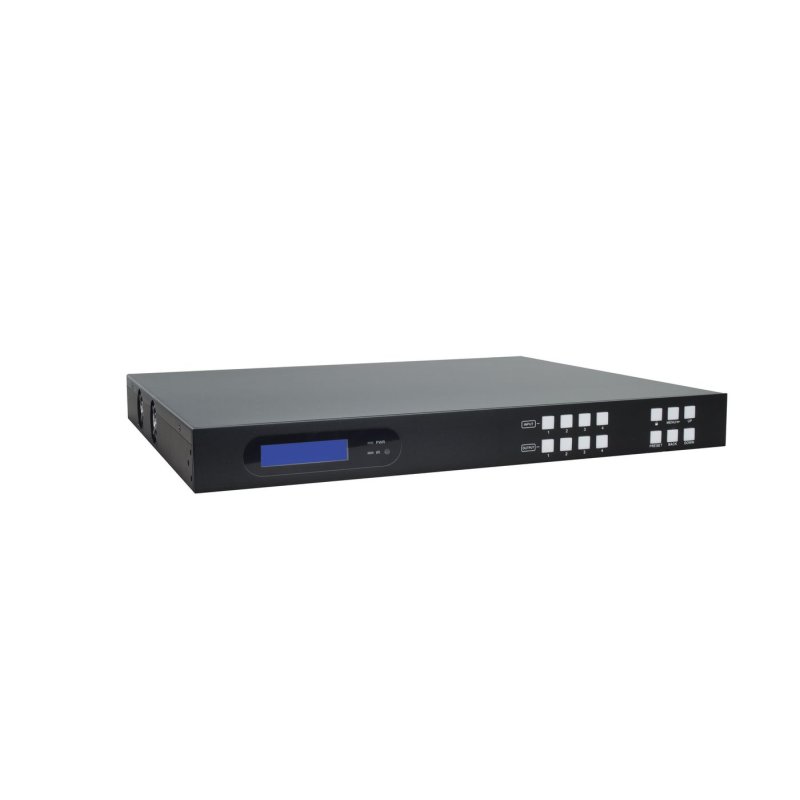

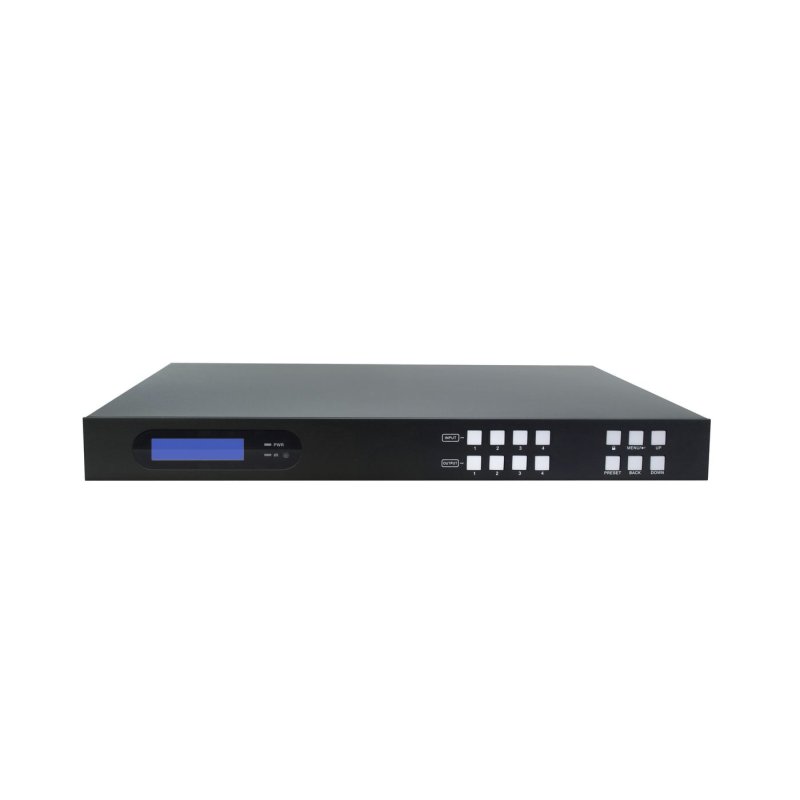

Vivolink Vivolink VLHDMIMAT4X444 matrix switcher AV matrix switcher Built-in display 65 W

Name: Vivolink VLHDMIMAT4X444 matrix switcher AV matrix switcher Built-in display 65 W
Brand: Vivolink
SKU: 5704174240549
Price: 2349.9 EUR
Availability: InStock

Vivolink VLHDMIMAT4X444, AV matrix switcher, 4096 x 2160 pixels, 18 Gbit/s, 10,100,1000 Mbit/s, Fast Ethernet, Gigabit Ethernet, LPCM

Manufacturer reference 5704174240549

EAN13 5704174240549

€2,349.90

In stock

Vivolink VLHDMIMAT4X444. Product type: AV matrix switcher, Maximum resolution: 4096 x 2160 pixels, Bandwidth: 18 Gbit/s. Housing colour: Black, Housing material: Metal, Control type: Buttons. USB connector type: USB Type-A. Power consumption (max): 65 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Width: 436.4 mm, Depth: 356.6 mm, Height: 44 mm

4x4 HDBaseT matrix switcher with audio matrix
Fully compliant with the HDMI 2.0 and HDCP 2.2
Supports HDMI resolution up to 4K@60Hz 4:4:4, HDR10
Features four mirrored HDMI outputs for four HDBaseT outputs, and the four HDMI outputs support 4K to 1080p down-scaling
The four HDBaseT outputs support 24V PoC, allowing the receivers to draw their power from the matrix switcher over the HDBaseT cable
Transmits 4K signal to the distance up to 40 metres and 1080p signal to the distance up to 70 metres over a single CAT6a Ethernet cable
Supports audio matrix. Provides four digital SPDIF audio outputs and four analogue L R audio outputs for HDMI input audio de-embedding and HDBaseT output audio de-embedding. Moreover, the four digital SPDIF audio outputs supports ARC audio output from receivers
Volume adjustment for analogue L R audio outputs
Supports comprehensive EDID management and advanced HDC handling
Controllable via front panel buttons, RS232 local and pass-through, IR local and pass-through, CEC, and TCP/IP (built-in GUI)
