Aten ATEN Over IP PDU metering device (to connect maximum 4 Power Distribution Units (PE1216 and or PE1324) and make them IP

ATEN Over IP PDU metering device (to connect maximum 4 Power Distribution Units (PE1216 and or PE1324) and make them IP accessable), Wired, Power, Status, AC, 100-240 V, 50/60 MHz, 2.93 W
EC1000-AX-G
4710423778115
€254.75
VAT included

Visa
Mastercard
PayPal

Description

ATEN Over IP PDU metering device (to connect maximum 4 Power Distribution Units (PE1216 and or PE1324) and make them IP accessable). Connectivity technology: Wired, LED indicators: Power, Status. Power source type: AC, Input voltage: 100-240 V, Operating frequency: 50/60 MHz. Products per master (outer) case: 5 pc(s), Master (outer) case gross weight: 9.1 kg, Master (outer) case length: 500 mm. Housing colour: Black, Housing material: Metal. Width: 200 mm, Depth: 75.9 mm, Height: 44 mm
  • Space saving 1U rack mounting with front and rear mounting
  • 4 RJ-45 Energy Sensor Ports to monitor four Energy PDU currents (0A to 32A per port)
  • 4 RJ-11 Environment Sensor Ports to monitor temperature, humidity, and differential pressure
  • Maximum Amperage Monitor 32A@100V~240V (Energy Box)

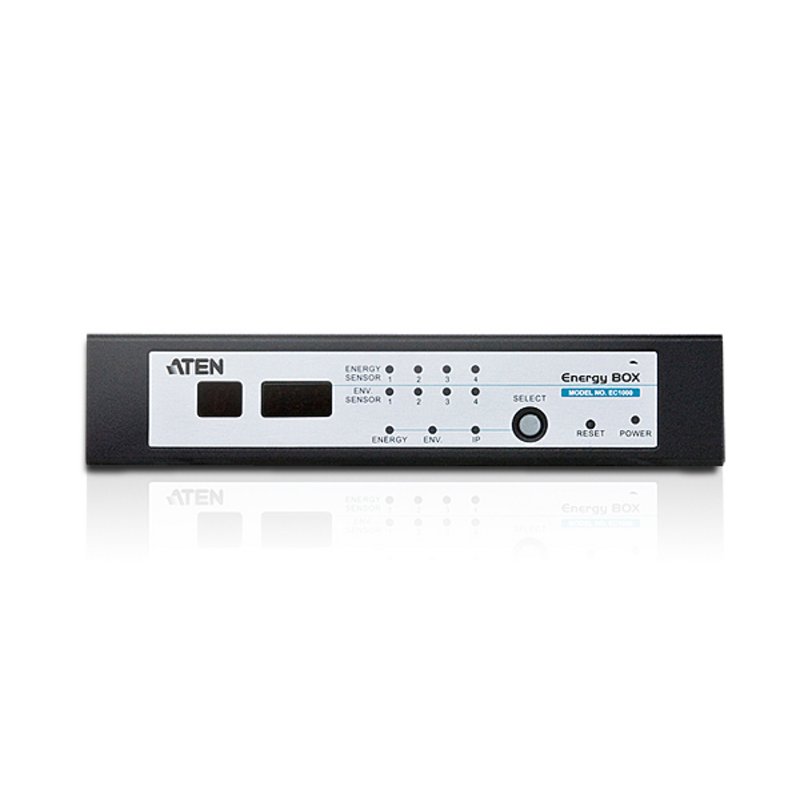

  • 3 digit 7 segment front panel LED displays current/sensor/IP address information
  • Front panel LED indicators for current, temperature, humidity, differential pressure, and IP address information at the Energy Box
  • Remote real-time current, temperature, humidity, and differential pressure monitoring and management
  • Management through eco Sensors Energy Management Software or 3r party SNMP manager
  • Supports name assignment for individual Energy PDUs
  • Event Logging – 128 line event log
  • Syslog support
  • F/W upgradable
  • Remote management via TCP/IP using built in 10/100Mbps Ethernet port
  • Management via built in browser based GUI
  • Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
  • Supports SNMP Manager V1, V2, V3
  • Strong security features include password protection and advanced encryption technologies – utilizing 128 bit SSL
  • RADIUS authorization and authentication

Data sheet

Colour
Black
Garantie
2 ans
Marque
Aten

Specific References

ean13
4710423778115
