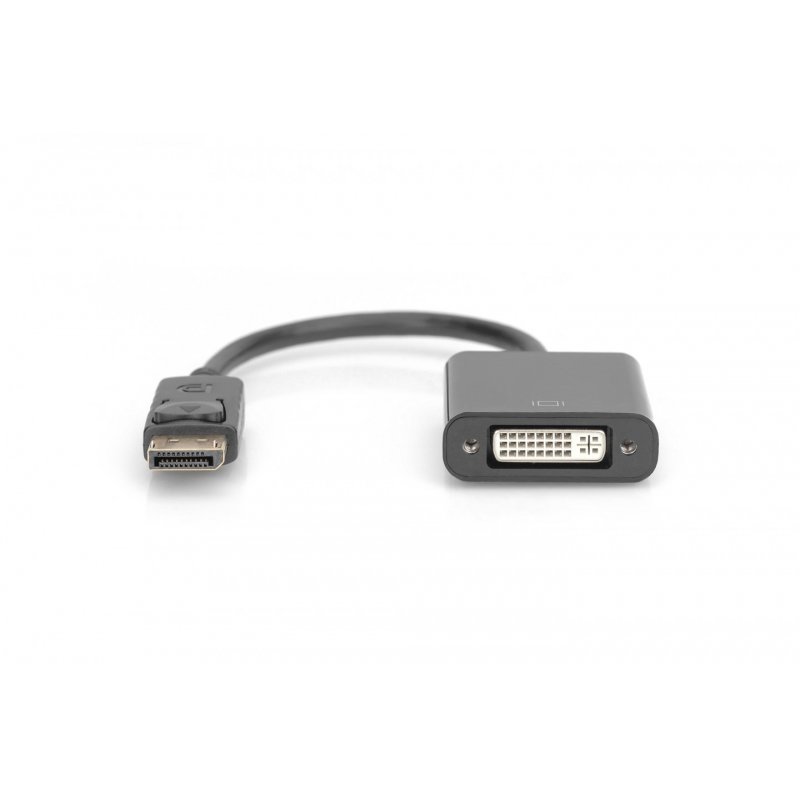

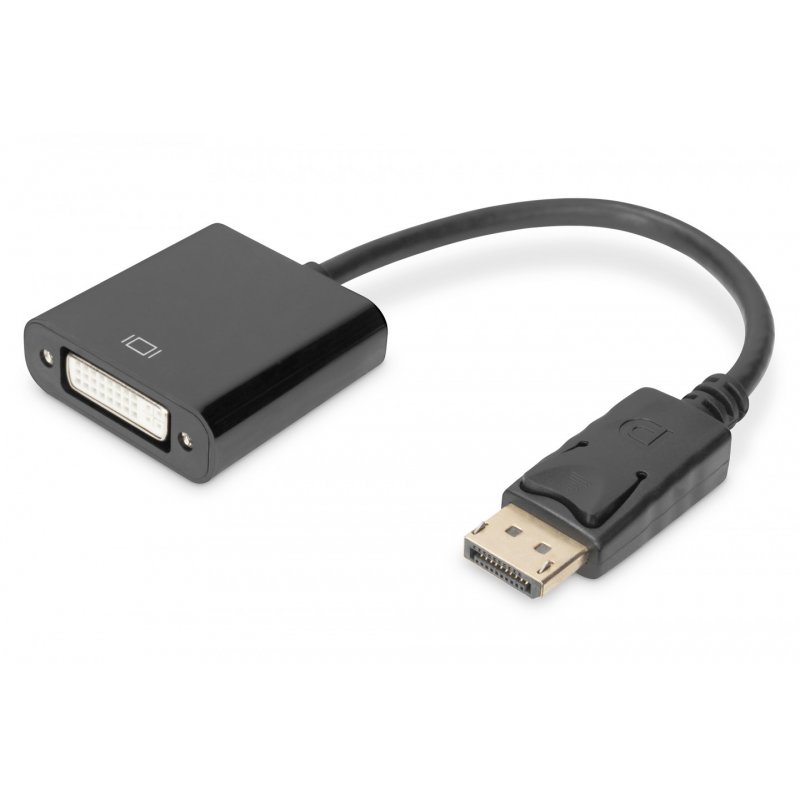

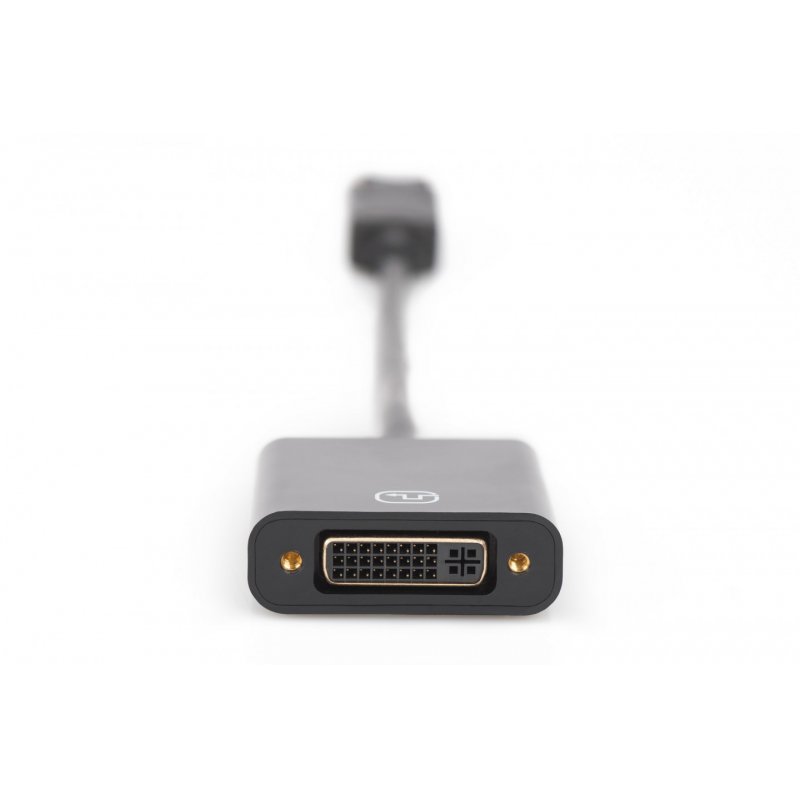

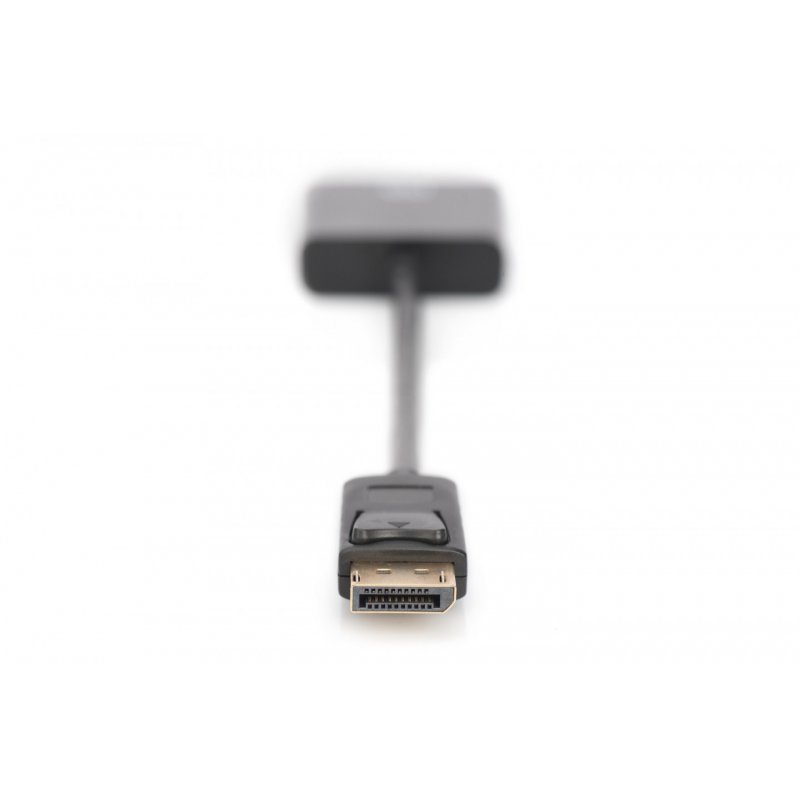

ASSMANN Digitus DisplayPort Adapter / Converter
Digitus DisplayPort Adapter / Converter, 0.15 m, DisplayPort, DVI-I, Nickel, 1.1a, Copper
AK-340401-001-S
4016032289265
€9.00
VAT included
Description
Digitus DisplayPort Adapter / Converter. Cable length: 0.15 m, Connector 1: DisplayPort, Connector 2: DVI-I. Package width: 150 mm, Package depth: 200 mm, Package type: Polybag
- Support up to 1080p with 60Hz
- Supports digital full HD and a higher transmission rate by Single Link.
- Copper wire, foil and braid shielding for robustness and reliable connection
- Plug and play, no additional driver needed
- Attention! The DVI socket supports the connection of 24+5 plugs, but only transmits single link 18+1 DVI-D signals in Full HD resolution.
- Supports DisplayPort 1.1
- Bandwidth: 6.75 (2.25 per channel, 225 MHz)
- Color depth: 36bit (12bit per channel)
- Power supply via DisplayPort
- Input: DisplayPort male connector, 20 pin
- Output: DVI female connector, (24+5)
- Resolutions: 480i, 576i, 1080i, 480p, 576p, 720p, 1080p (50 / 60 Hz)
- Operating temperature: 0°C to +45°C
- Operating humidity: 10% to 80% RH (no condensation)
- Storage temperature: -10°C to +80°C
- Storage humidity: 5% to 90% RH (no condensation)
- Power consumption: 300 mW
- Entire cable length: 15 cm
- Color: black
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- AK-340401-001-S
- Weight
Specific References
- ean13
- 4016032289265
