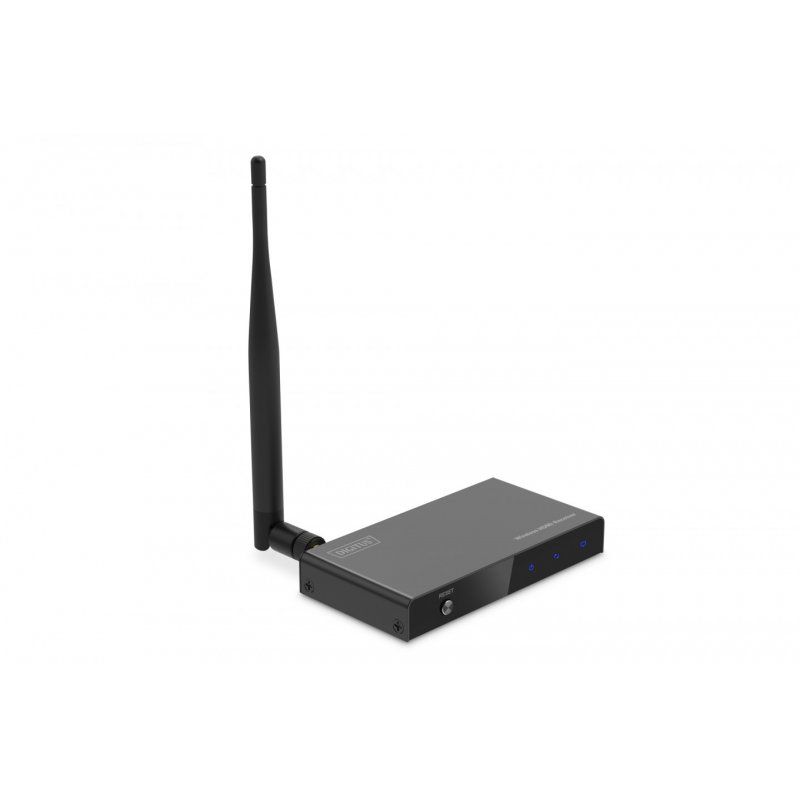

Digitus Digitus Wireless HDMI Receiver for DS-55346
Digitus Wireless HDMI Receiver for DS-55346, 1920 x 1080 pixels, AV receiver, 100 m, Wireless, Black, HDCP
DS-55347
4016032496625
€112.90
VAT included
Description
Digitus Wireless HDMI Receiver for DS-55346. Type: AV receiver, Maximum resolution: 1920 x 1080 pixels, Maximum transfer distance: 100 m. Connectivity technology: Wireless. Power source type: DC, Operating voltage (receiver): 5 V, Power consumption (receiver) (max): 1.5 W. Receiver dimensions (WxDxH): 63.5 x 118 x 18 mm, Receiver weight: 170 g. Package width: 186 mm, Package depth: 197 mm, Package height: 45 mm
- Extends DS-55346 with additional receiver units
- Distribute your HDMI signal on up to 4 displays (receivers)
- Transfer of HDMI signals in Full HD with max. resolution of 1080p / 60 Hz
- IR transmission to control the source device from output display
- Plug & Play - no software or driver required
- HDMI 1.4, HDCP 1.3
- Transmission distance 1:1 connection: up to 100 m (unobstructed view)
- Transmission distance 1:2 connection: up to 60 m (unobstructed view)
- Transmission distance 1:3 connection: up to 45 m (unobstructed view)
- Transmission distance 1:4 connection: up to 25 m (unobstructed view)
- Frequency: 5 GHz
- Wireless standard: 802.11a
- HDMI transfer rate: 6.75 Gbps
- Compression: H.264
- Transfer latency: 150 - 200 ms

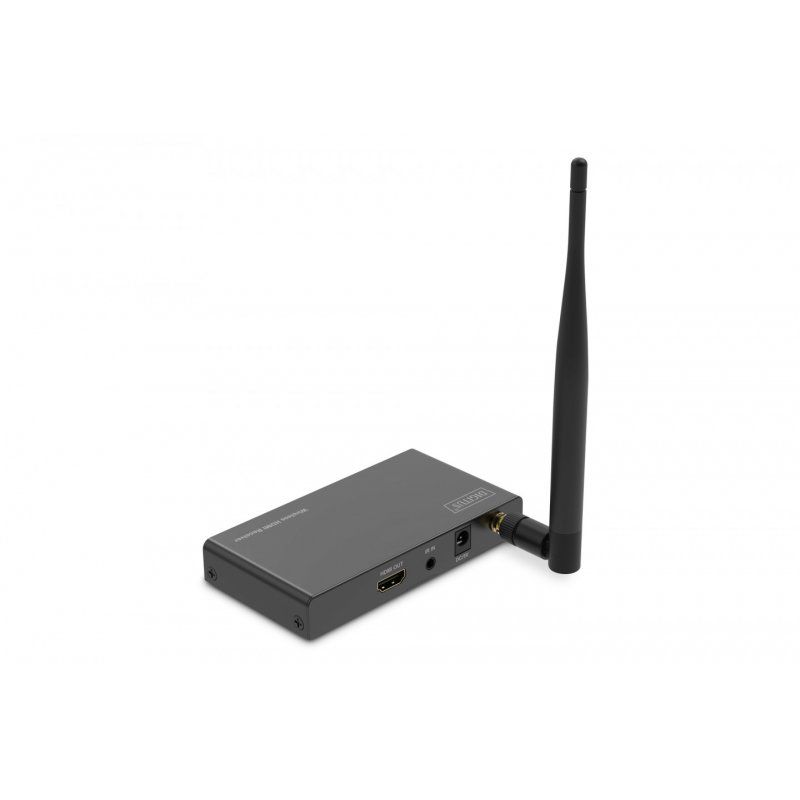

- Receiver connections:
- 1 x HDMI (output) - Connection output display
- 1 x IR (input) - Connection IR cable
- 1x Power adapter (DC/5V)
- 1x Reset button
- LED displays: Power / Link / Status
- Operating temperature: 0°C - 50°C
- Power consumption: approx. 1.5 W
- Dimensions: L 11.8 x W 6.35 x H 1.8 cm
- Color: black
- Weight receiver: 170 g
- Housing material: Metal
- Note: The transmission distance with a restricted visual range cannot be determined generally and depends on the specific circumstances where installed
- Note: Walls, glass etc. shorten the signal range or cause signal losses
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
Specific References
- EAN13
- 4016032496625
