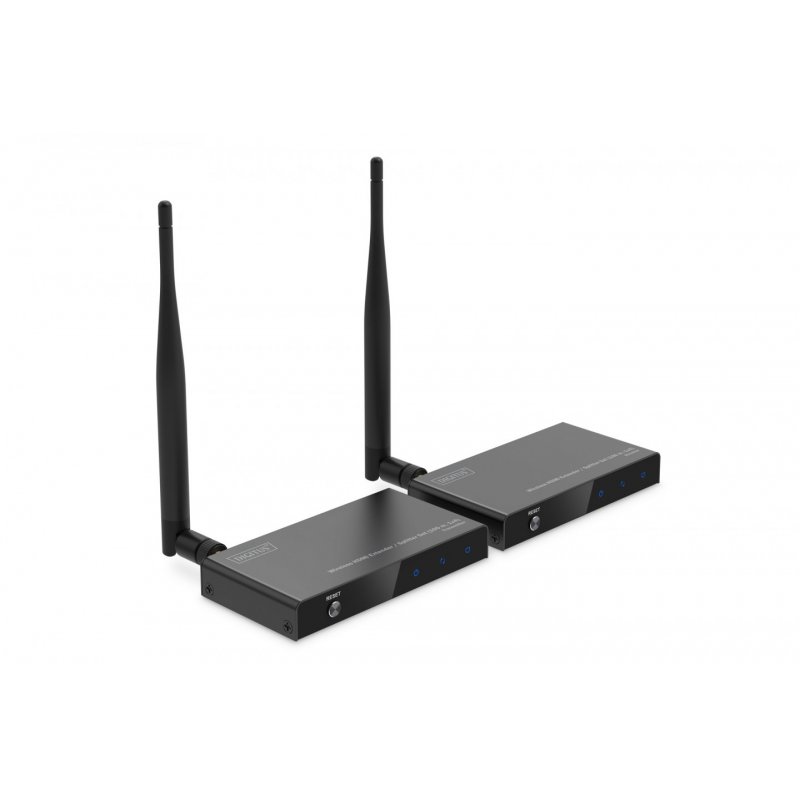

Digitus Digitus Wireless HDMI Extender / Splitter Set (100 m, 1x4)

Name: Digitus Wireless HDMI Extender / Splitter Set (100 m, 1x4)
Brand: Digitus
SKU: DS-55346
Price: 193.9 EUR
Availability: InStock

Digitus Wireless HDMI Extender / Splitter Set (100 m, 1x4), 1920 x 1080 pixels, AV transmitter & receiver, 100 m, Wireless, Black, HDCP

Manufacturer reference DS-55346

EAN13 4016032496618

€193.90

In stock

Digitus Wireless HDMI Extender / Splitter Set (100 m, 1x4). Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Maximum transfer distance: 100 m. Connectivity technology: Wireless. Power source type: DC, Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V. Receiver dimensions (WxDxH): 63.5 x 118 x 18 mm, Receiver weight: 170 g, Transmitter dimensions (WxDxH): 63.5 x 118 x 18 mm. Package width: 196 mm, Package depth: 243 mm, Package height: 60 mm

Wireless transfer of Full HD AV signals over a distance of up to 100 m (1:1 connection, unobstructed view)
Supports Point-to-Point and Multicast (Point-to-Multipoint) transfer
Transfer of HDMI signals in Full HD with max. resolution of 1080p / 60 Hz
Expandable for up to 4 receiver units (DS-55347) and offers video splitter functionality with additional receivers
Distribute your HDMI signal on up to 4 displays
Additional HDMI output (loop-out) on transmitter module for connection to an external monitor
IR transmission to control the source device from output display
Plug & Play - no software or driver required
HDMI 1.4, HDCP 1.3
Transmission distance 1:1 connection: up to 100 m (unobstructed view)
Transmission distance 1:2 connection: up to 60 m (unobstructed view)
Transmission distance 1:3 connection: up to 45 m (unobstructed view)
Transmission distance 1:4 connection: up to 25 m (unobstructed view)
Frequency: 5 GHz
Wireless standard: 802.11a
HDMI transfer rate: 6.75 Gbps
Compression: H.264
Transfer latency: 150 - 200 ms

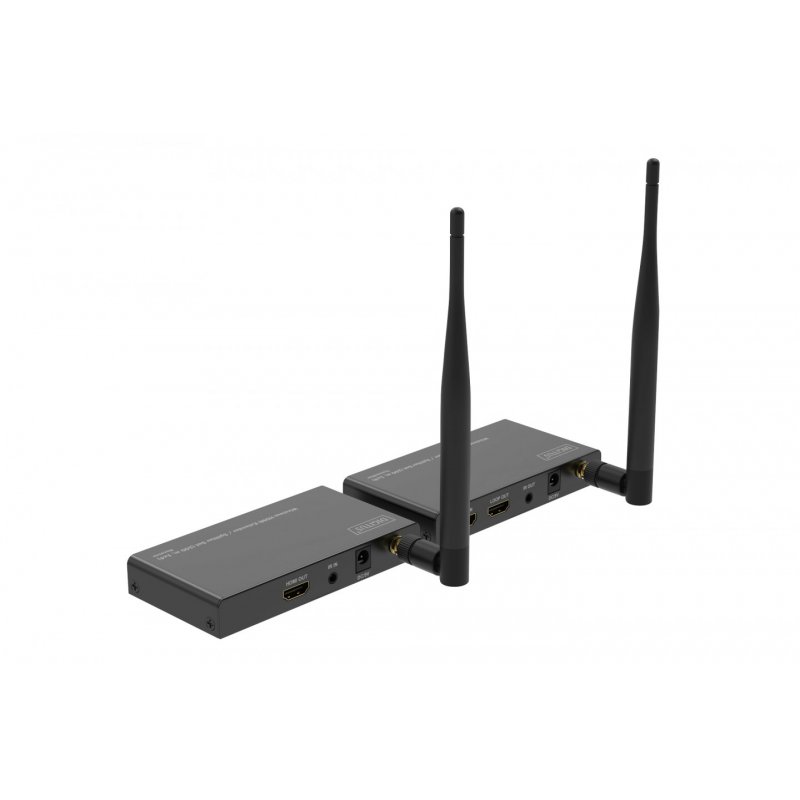

Transmitter connections:
1 x HDMI (input) - Connection signal source
1 x HDMI (output) - Loop-out to connect a monitor to the transmitter unit
1 x IR (output) - Connection IR cable
1x Power adapter (DC/5V)
1x Reset button
Receiver connections:
1 x HDMI (output) - Connection output display
1 x IR (input) - Connection IR cable
LED displays: Power / Link / Status
Operating temperature: 0°C - 50°C
Power consumption transmitter unit: approx. 3 W
Power consumption receiver unit: approx. 1.5 W
Dimensions (1 unit): L 11.8 x W 6,35 x H 1.8 cm
Color: black
Weight transmitter: 172 g, receiver: 170 g
Housing material: Metal
Note: The transmission distance with a restricted visual range cannot be determined generally and depends on the specific circumstances where installed
Note: Walls, glass etc. shorten the signal range or cause signal losses
