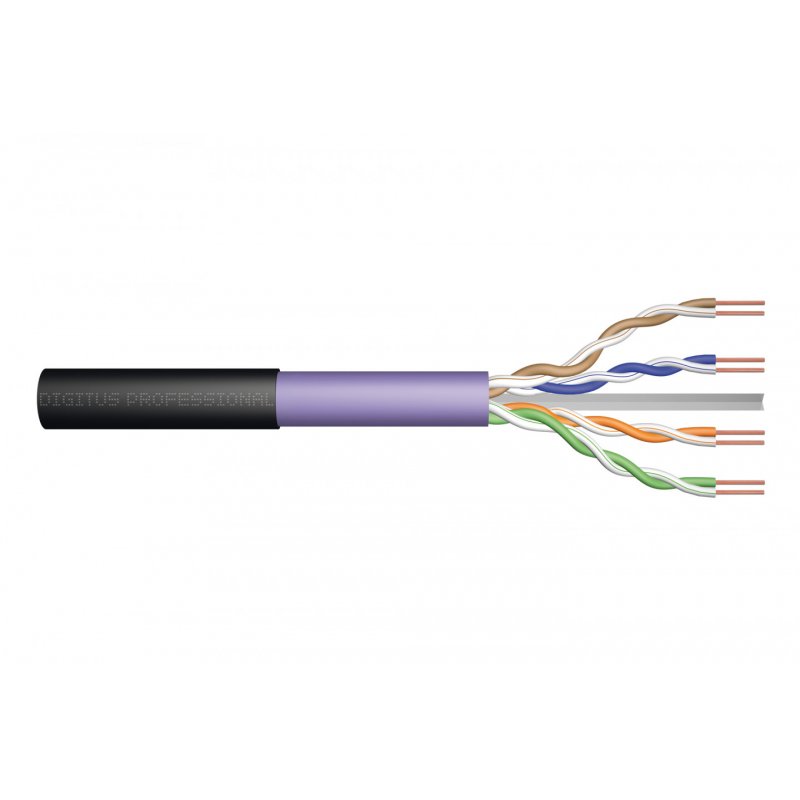

Digitus Digitus Cat.6 U/UTP burial installation cable, 500 m, simplex, PE
Digitus Cat.6 U/UTP burial installation cable, 500 m, simplex, PE, 500 m, Cat6, U/UTP (UTP)
DK-1613-VH-5-OD
4016032446163
€419.90
VAT included
Description
Digitus Cat.6 U/UTP burial installation cable, 500 m, simplex, PE. Cable length: 500 m, Cable standard: Cat6, Cable shielding: U/UTP (UTP), Data transfer rate: 1000 Mbit/s
- Physical properties:
- Conductor: Bare annealed copper, solid AWG 23/1
- Insulation: HD-PE (High Density Polyethylene)
- Total number of insulated conductors: 8, twisted in 4 pairs
- Color code: Blue-white, orange-white, green-white, brown-white
- Individual pair shielding: None
- Overall shielding: None
- Outer sheath: Eca acc. to EN 50575; LSZH
- Outer sheath diameter (nominal): 0,5 mm (Eca)
- Outer sheath color: Purple (Eca jacket), black (PE jacket)
- Mechanical properties:
- Tensile loading: 150N max.
- Dynamic bending radius: 8x AD mm min.
- Static bending radius: 4x AD mm min.
- Shipping- and storage temperature range: -20 °C up to +60 °C
- Operating temperature range: -20 °C up to +75 °C
- Installation temperature range: 0 °C up to +50 °C
- Overall diameter (nominal): 6,8 mm (Eca)
- Weight: (kg/hm): 48 kg (Eca)
- Impedance: 100 ± 5 Ohm @ 1-250 MHz
- Capacitance: 40 pF/m nominal @ 800 MHz
- Capacitance unbalance (pair-ground): 1,5 pF/m max. @ 1 KHz
- Insulation resistance: 5 GOhm x km min.
- DC resistance: 72 Ohm/km max. (2% max. resistance unbalance)
- DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
- Voltage resistance: 72 Vdc max.
- Coupling attenuation: CA-Type 3
- Signal propagation delay: 535 nS/100 m max.
- Propagation delay: 20 nS/100 m max.
- Separating class: ,,b" acc. to EN 50174-2
- NVP: 69%
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Modèle
- DK-1613-VH-5-OD
- Weight
- 1
Specific References
- EAN13
- 4016032446163
