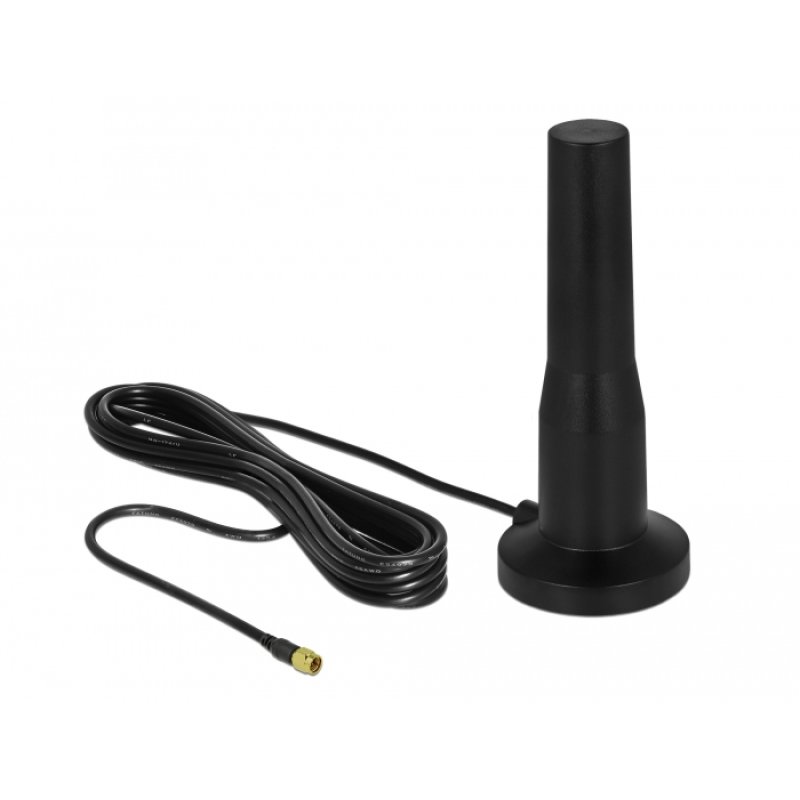

Delock DeLOCK 12586 network antenna Omni-directional antenna SMA 5 dBi
DeLOCK 12586, 5 dBi, 0.698 - 0.96; 1.71 - 2.17; 2.5 - 2.7 GHz, 50 Ω, Omni-directional antenna, SMA, Male
12586
4043619125869
€33.00
VAT included
Description
DeLOCK 12586. Antenna gain level (max): 5 dBi, Frequency band: 0.698 - 0.96; 1.71 - 2.17; 2.5 - 2.7 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Height: 120 mm, Diameter: 5 cm. Package type: Box. Quantity per pack: 1 pc(s)
- ZigBee, LoRa, DECT, Z-Wave, NB-IoT, Bluetooth, GSM, UMTS, LTE, ISM, WLAN
- Antenna gain: 3 - 5 dBi
- Impedance: 50 Ohm
- VSWR: 1.5
- Polarisation: linear, vertical
- Operating temperature: -20 °C ~ 70 °C
- Housing material: plastic
- Colour: black
- Protection class: IPX5
- Cable: coaxial
- Cable type: RG-174 A/U
- Cable colour: black
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- Cable diameter: ca. 2.7 mm
- Cable length incl. connector: ca. 3 m
- Dimensions (LxD): ca. 120.0 x 50.0 mm
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4043619125869
