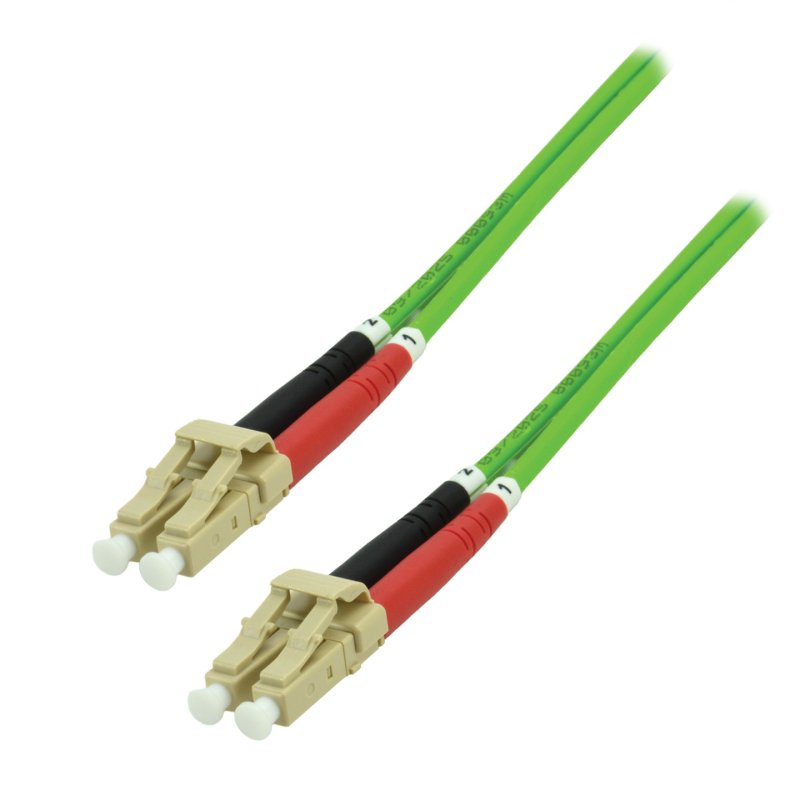

MCL SAMAR MICRO CABL MCL LC / LC Multimode duplex 50/125 OM5 optical fiber - 1m
MCL LC / LC Multimode duplex 50/125 OM5 optical fiber - 1m, 1 m, LC/LC, OM5, LC, LC
FJOM5LCLC-1M
3700224772734
€16.00
VAT included
Description
MCL LC / LC Multimode duplex 50/125 OM5 optical fiber - 1m. Cable length: 1 m, Cable type: LC/LC, Fibre optic type: OM5, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex
- Connector 1: LC / UPC
- Connector 2: LC / UPC
- Core diameter: 50 µm
- Jacket diameter: 125 µm
- Insertion loss: Less than or equal to 0.2 dB
- Return loss: Greater than or equal to 35 dB
- LSZH jacket
- Diameter: 2.8 mm
- Cable 100% tested
- Jacket color: Lime green
- Ferrule: Zirconia ceramic (Class A)
- Connector durability: 1000 times minimum
- Tensile load (long/short term): 200/400 N
- Minimum bend radius : 30 mm
- Operating temperature range: -40° to 80°
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 3700224772734
