Rupture de stock, ce produit n'est plus commercialisé

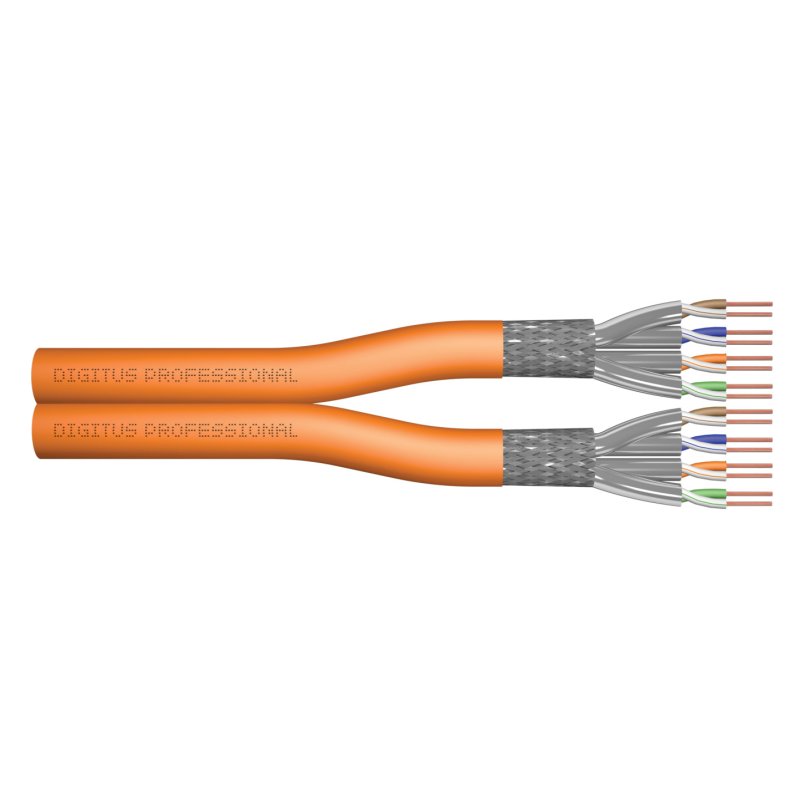

Digitus Digitus CAT 7 S/FTP installation cable, 500 m, duplex, B2ca-s1a,d0,a1

Name: Digitus CAT 7 S/FTP installation cable, 500 m, duplex, B2ca-s1a,d0,a1
Brand: Digitus
SKU: DK-1745-VH-D-5
Price: 1048.9 EUR
Availability: OutOfStock

Digitus CAT 7 S/FTP installation cable, 500 m, duplex, B2ca-s1a,d0,a1, 500 m, Cat7, S/FTP (S-STP), Orange

Manufacturer reference DK-1745-VH-D-5

EAN13 4016032435914

€1,048.90

Out of stock

Digitus CAT 7 S/FTP installation cable, 500 m, duplex, B2ca-s1a,d0,a1. Cable length: 500 m, Cable standard: Cat7, Cable shielding: S/FTP (S-STP), Data transfer rate: 10000 Mbit/s, Product colour: Orange

Physical properties:
Conductor: Bare copper wire, AWG 23/1
System(s) of assessment and verification of constancy of performance: System 3
Insulation: SFS-PE (foamed polyethylene jacket)
Total number of insulated conductors: 8, twisted into 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Shielding of the individual pairs: aluminum-laminated polyester film, covers 100%
Overall shielding: copper braiding
Outer sheath: B2ca-s2 d1 a1 acc. to EN 50575; LSZH
Color: Orange (RAL 2008)
Mechanical properties:
Strain relief: 135N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Transport and storage temperature range: -20 °C to 60 °C
Operating temperature range: -20 °C to 50 °C
Installation temperature range: 0 °C to 50 °C
Electrical properties:
Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
Capacitance: 45pF/m nom. at 1KHz
Capacitance: 40 pF/m nominal @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance)
Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance)
Operating voltage: 72 Vdc max.
Coupling attenuation: CA-Type 1b
Phase delay: 450 nS/100 m max.
Time delay: 10 nS/100 m max.
Separation class: "d" according to EN 50174-2
NVP: 79%
Flame spread: EN EN 60332-1-2 (LSOH-PVC)
Halogen-free, corrosivity: EN 60754-1/2 (LSOH
Smoke density EN 61034-2
