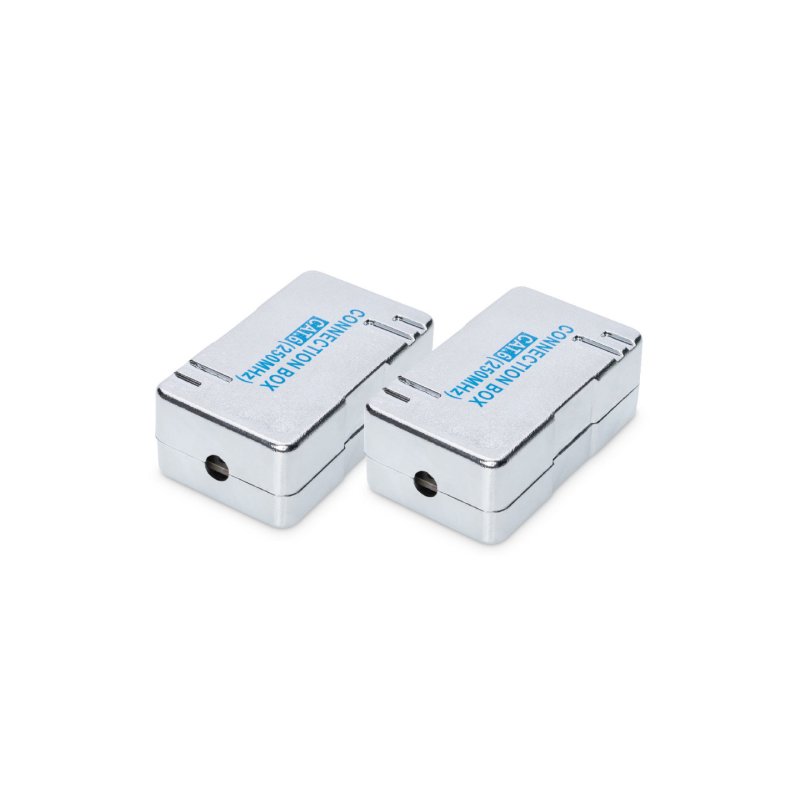

Digitus Digitus CAT 6 Connection module for Twisted Pair Cables - 2 pieces
Digitus CAT 6 Connection module for Twisted Pair Cables - 2 pieces, LSA, LSA, White
DN-93903-2
4016032494805
€9.00
VAT included
Description
Digitus CAT 6 Connection module for Twisted Pair Cables - 2 pieces. Connector 1: LSA, Connector 2: LSA, Connector contacts plating: Gold. Product colour: White
- Transmission properties: Category 6
- Area of application: Up to 250 MHz, 1GBase-T
- Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
- General properties:
- Suitable for installation in trunking, surface and flush mount
- Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B
- Suitable for connection of installation cables - extension of cables, replacing of defect cable links
- Integrated strain relief for installation cables
- Suitable for cables with AWG 22-26 diameter
- Technical properties:
- Housing material: ABS UL-94V-0
- RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
- RJ45 shielding: Tinned bronze
- LSA termination clamp: Krone LSA , UL 94V-0, zinc plated phosphor bronze
- Conductor plate: FR4, UL 94V-0
- Physical properties:
- Operation temperature: -20° C to 70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- IDC wire size: 22 – 26 AWG solid and stranded conductor
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 MilliOhm
- Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
- 2 pieces
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4016032494805
