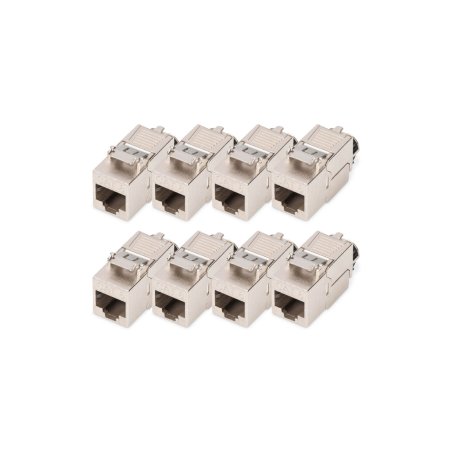

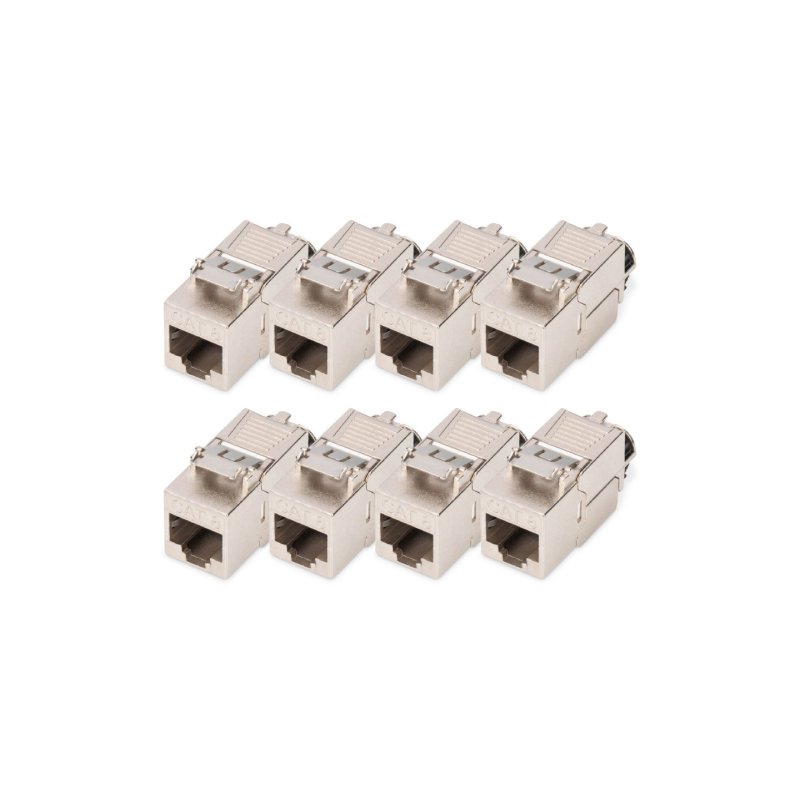

Digitus Digitus CAT 8.1 Keystone module, shielded, tool-free mounting connection - 8 pcs.

Name: Digitus CAT 8.1 Keystone module, shielded, tool-free mounting connection - 8 pcs.
Brand: Digitus
SKU: DN-93816-8
Price: 68 EUR
Availability: OutOfStock

Digitus CAT 8.1 Keystone module, shielded, tool-free mounting connection - 8 pcs., Flat, Silver, RJ-45, LSA, Female, Female

Manufacturer reference DN-93816-8

EAN13 4016032495208

€68.00

Out of stock

Digitus CAT 8.1 Keystone module, shielded, tool-free mounting connection - 8 pcs.. Construction type: Flat, Product colour: Silver, Connector 1: RJ-45. Quantity per pack: 8 pc(s)

Transmission property: Category 8 Class 1
Application areas: Up to 2000 MHz, 25/40GBase-T
Suitable for IEEE 802.3 af/at/bt - PoE, PoE & 4PPoE (in permanent link)
General properties:
Suitable for distribution panel and junction box installation
RJ45 sockets, 8P8C
Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B
Tool-free mounting connection
360° shield contacting
Technical features:
Housing material: Zinc die-cast, nickel-plated
RJ45 socket material: ABS UL 94V-0
Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
RJ-45 shielding: Nickel-plated bronze
LSA cutting clamp: Krone LSA , UL 94V-2, galvanized phosphor bronze
Printed circuit board: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-81)
Tensile load: 7.7 kg between socket and plug
Operating temperature: -20° C to 70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-81
Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-81
Core receptacle: 22-26 AWG solid and stranded conductors
Insulation resistance: > 500 MOhm
Contact resistance: < 20 milliOhms
Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
8 pcs.
