Digitus Digitus CAT 8.2 S/FTP installation cable, 500 m, Simplex, B2ca

Name: Digitus CAT 8.2 S/FTP installation cable, 500 m, Simplex, B2ca
Brand: Digitus
SKU: DK-1845-VH-5
Price: 1199 EUR
Availability: OutOfStock

Digitus CAT 8.2 S/FTP installation cable, 500 m, Simplex, B2ca, 500 m, Cat8.2, S/FTP (S-STP), Green

Manufacturer reference DK-1845-VH-5

EAN13 4016032445692

€1,199.00

Out of stock

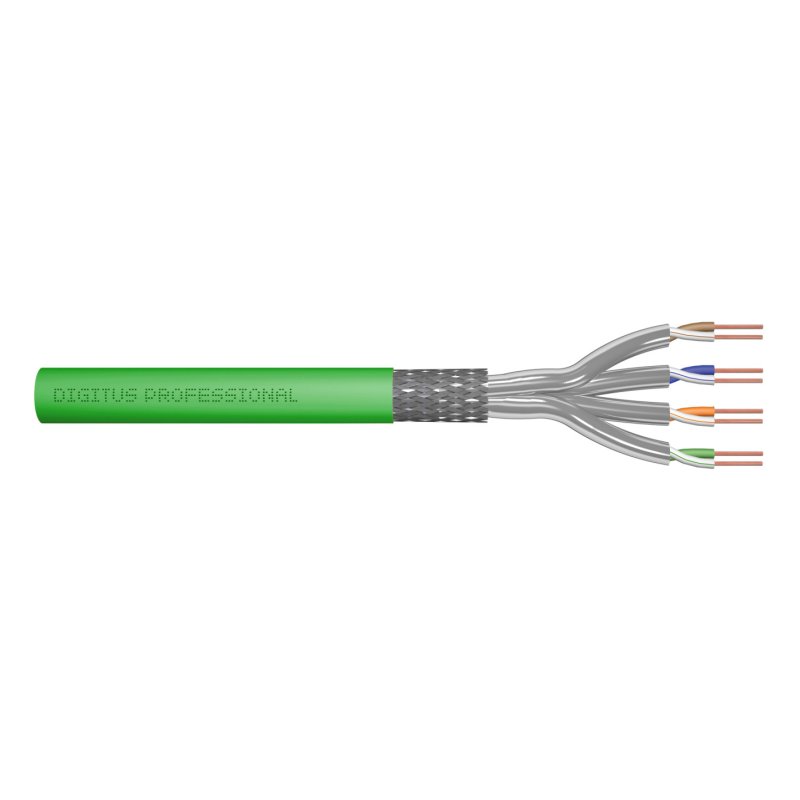

Digitus CAT 8.2 S/FTP installation cable, 500 m, Simplex, B2ca. Cable length: 500 m, Cable standard: Cat8.2, Cable shielding: S/FTP (S-STP), Product colour: Green

Physical properties:
Conductor: Bare copper wire, AWG 22/1
System(s) of assessment and verification of constancy of performance: System 3
Insulation: SFS-PE (foamed polyethylene jacket)
Total number of insulated conductors: 8, twisted into 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100%
Overall shielding: Tinned copper braiding
Outer sheath: B2ca according to EN 50575
Outer sheath thickness (nominal): 0.55 mm nominal
Outer sheath color: Yellow
Mechanical properties:
Strain relief: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Transport and storage temperature range: -20 °C to 75 °C
Operating temperature range: -20 °C to 60 °C
Installation temperature range: 0 °C to 50 °C
Outer diameter simplex (nominal): 7.9 mm nominal (Dca)
Weight (kg/km): 65 kg/km
Electrical properties:
Impedance: 100±15Ohm @ 1 - 2000MHz
Capacitance: 99 pF/30m nominal @ 1 KHz
Capacitance unbalance (pair-earth): 99pF/30m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC resistance: 2.4Ohm/30m max. (4% max. unbalanced resistance)
Loop resistance: 5.6 Ohm/24m max. (3% max. unbalanced resistance)
Operating voltage: 72 Vdc max.
Coupling attenuation: CA-Type 1
Phase delay: 171 nS/30 m max.
Time delay: 13.5 nS/130 m max.
Separation class: "d" according to EN 50174-2
NVP: 74%
