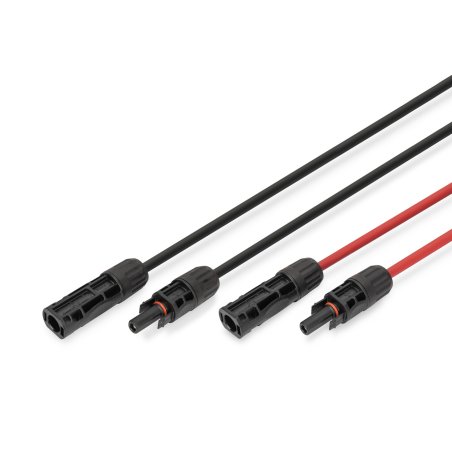

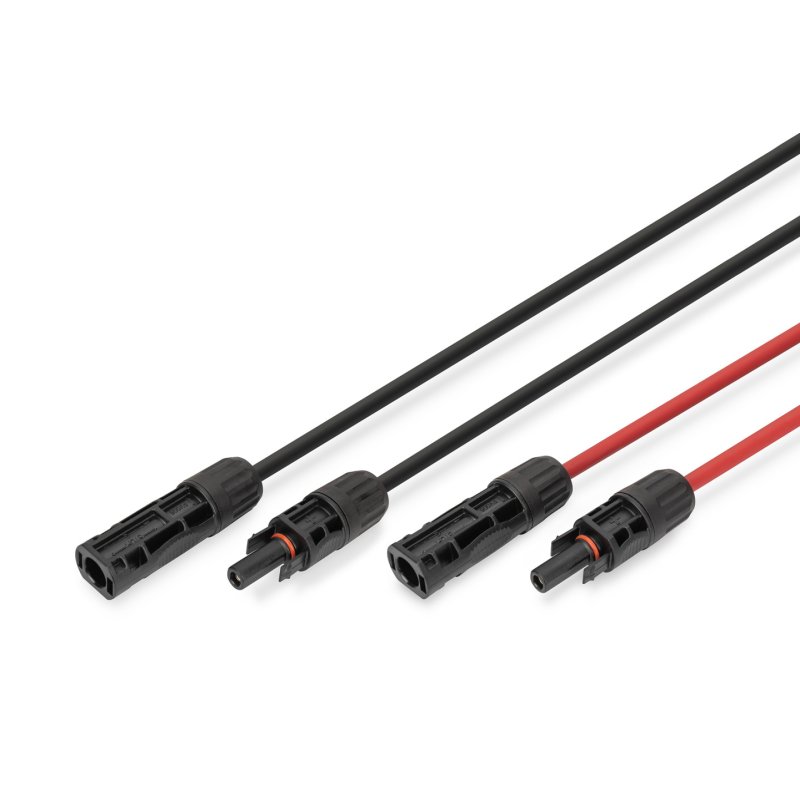

Digitus Digitus DK-SCEC66-0010 solar panel accessory Cable

Name: Digitus DK-SCEC66-0010 solar panel accessory Cable
Brand: Digitus
SKU: DK-SCEC66-0010
Price: 9.9 EUR
Availability: OutOfStock

Digitus DK-SCEC66-0010, Cable, Black, Red, 6 mm², MC4, Male, Female

Manufacturer reference DK-SCEC66-0010

EAN13 4016032501794

€9.90

Out of stock

Digitus DK-SCEC66-0010. Product type: Cable, Product colour: Black, Red, Core size: 6 mm². Connector type: MC4, Connector 1 gender: Male, Connector 2 gender: Female. Power source type: DC, DC input voltage: 1500 V, Maximum current: 30 A. Cable length: 1 m. Package width: 215 mm, Package depth: 180 mm, Package height: 30 mm

Length: 1m
Conductor cross-section: 6mm²
Voltage tolerance: up to 1500V DC / 1000V AC
Rated current: 30 A
Conductor material: Tinned copper wire
Conductor structure: TS 84/0.285 mm
Conductor diameter: 3.0 mm
Insulation material: XLPO
Jacket material: XLPO
Plug material: PPE, PA 66, halogen-free
Insulating diameter: 4.4 mm ±0.1 mm
Outer diameter: 6.1 mm ±0.2 mm
Temperature range: -40 °C to 85 °C
Contact resistance: ≤ 0.5 Ω
Insulation resistance: ≥ 500 MΩ-km
Dielectric strength: AC 6.5 kV / DC 15 kV (5 minutes)
Spark test: 7 kV
Standards & certificates: CEEN 50618, EN 60332-1-2 (Eca) , EN 62852: 2015, UL94 V-0
Coat color: 1x black, 1x red
Connection 1: MC4 plug
Connection 2: MC4 socket
IP 65/68 certified
