- Rupture de stock, ce produit n'est plus commercialisé

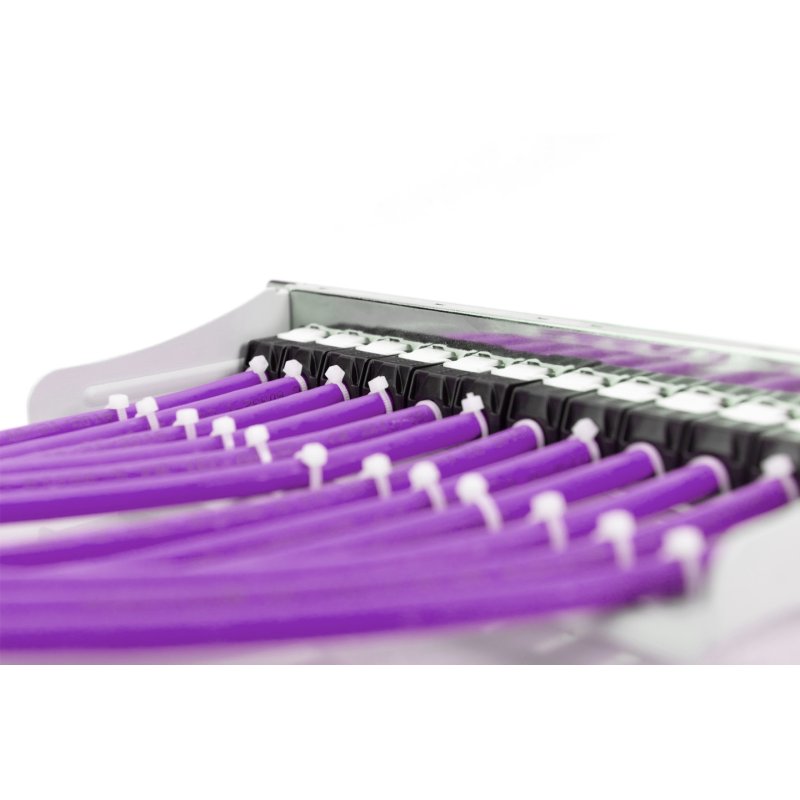

Digitus Digitus CAT 6 F/UTP installation cable, 305 m, simplex, B2ca
Digitus CAT 6 F/UTP installation cable, 305 m, simplex, B2ca, 305 m, Cat6, F/UTP (FTP), Violet
DK-1626-VH-305
4016032442059
€289.90
VAT included
Description
Digitus CAT 6 F/UTP installation cable, 305 m, simplex, B2ca. Cable length: 305 m, Cable standard: Cat6, Cable shielding: F/UTP (FTP), Product colour: Violet
- Physical properties:
- Basic conductor: Solid AWG 23/1, bare annealed copper, diameter 0.57 mm nominal
- System/s of AVCP: AVCP 3
- Insulation: HD-PE
- Total number of insulated conductors: 8, twisted in 4 pairs
- Color code: blue-white, orange-white, green-white, brown-white
- Individual pair shield: None
- Overall shielding: Aluminum foil, providing 100% coverage, drain wire
- Outer jacket: Halogen-free (FRNC-B/LSZH-1)
- Outer jacket diameter: 0.50 mm nominal
- Color: Purple (RAL 4005)
- Mechanical properties:
- Tensile loading: 150N max.
- Dynamic bending radius: 8x AD mm min.
- Static bending radius: 4x AD mm min.
- Shipping- and storage temperature range: -20 °C up to 60 °C
- Operating temperature range: -20 °C up to 75 °C
- Installation temperature range: 0 °C up to 50 °C
- Overall diameter: 7.0 mm nominal
- Flame retardancy: IEC 60332-1
- Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034
- Fire load: 295 Mj/km
- Electrical properties:
- Mean impedance: 100±5Ohm at 1MHz - 600MHz
- Capacitance: 48 pF/m nominal @ 800 Hz
- Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
- Insulation resistance: 5 GOhm x km min.
- DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
- Voltage resistance: 72 Vdc max.
- Coupling attenuation: 40 dB
- Signal propagation delay: 535 nS/100 m max.
- Propagation delay: 20 nS/100 m max.
- NVP: 69%
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4016032442059
