Rupture de stock, ce produit n'est plus commercialisé

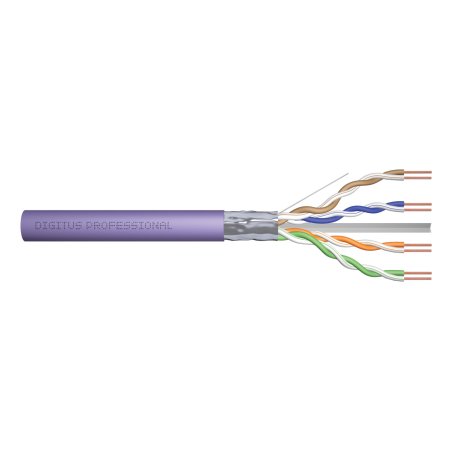

Digitus Digitus CAT 6 F/UTP installation cable, 100 m, simplex, Cca

Name: Digitus CAT 6 F/UTP installation cable, 100 m, simplex, Cca
Brand: Digitus
SKU: DK-1625-VH-1
Price: 88 EUR
Availability: OutOfStock

Digitus CAT 6 F/UTP installation cable, 100 m, simplex, Cca, 100 m, Cat6, F/UTP (FTP), Violet

Manufacturer reference DK-1625-VH-1

EAN13 4016032442011

€88.00

Out of stock

Digitus CAT 6 F/UTP installation cable, 100 m, simplex, Cca. Cable length: 100 m, Cable standard: Cat6, Cable shielding: F/UTP (FTP), Product colour: Violet

Physical properties:
Conductor: Bare annealed copper, solid AWG 23/1
System/s of AVCP: AVCP 3
Insulation: HD-PE (High Density Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Individual pair shield: None
Overall shielding: Aluminum foil, providing 100% coverage, drain wire
Outer sheath: Eca to B2ca acc. to EN 50575; LSZH
Outer sheath diameter (nominal): 0.5 mm (Eca); 0,6 mm (Dca); 0,8 mm (Cca); 0,08 mm (B2ca)
Outer sheath color: Purple
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to 60 °C
Operating temperature range: -20 °C up to 75 °C
Installation temperature range: 0 °C up to 50 °C
Overall diameter Simplex (nominal): 7.0 (Eca); 7,2 mm (Dca); 7,6 mm (Cca); 7,6 mm (B2ca)
Weight (kg/km): 46 kg (Eca); 47 kg (Dca); 48,5 kg (Cca); 48,5 kg (B2ca)
Electrical properties:
Impedance: 100±5 Ohm @ 1-250 MHz
Capacitance: 45 pF/m nominal @ 800 Hz
Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: 40 dB
Signal propagation delay: 535 nS/100 m max.
Propagation delay: 20 nS/100 m max.
Separating class: ,,c” acc. to EN 50174-2
NVP: 69%
