Digitus Digitus CAT 6A U/FTP installation cable, 305 m, simplex, Cca, Easy Pull Box

Name: Digitus CAT 6A U/FTP installation cable, 305 m, simplex, Cca, Easy Pull Box
Brand: Digitus
SKU: DK-1625-A-VH-305
Price: 295.9 EUR
Availability: OutOfStock

Digitus CAT 6A U/FTP installation cable, 305 m, simplex, Cca, Easy Pull Box, 305 m, Cat6a, U/FTP (STP), Blue

Manufacturer reference DK-1625-A-VH-305

EAN13 4016032435860

€295.90

Out of stock

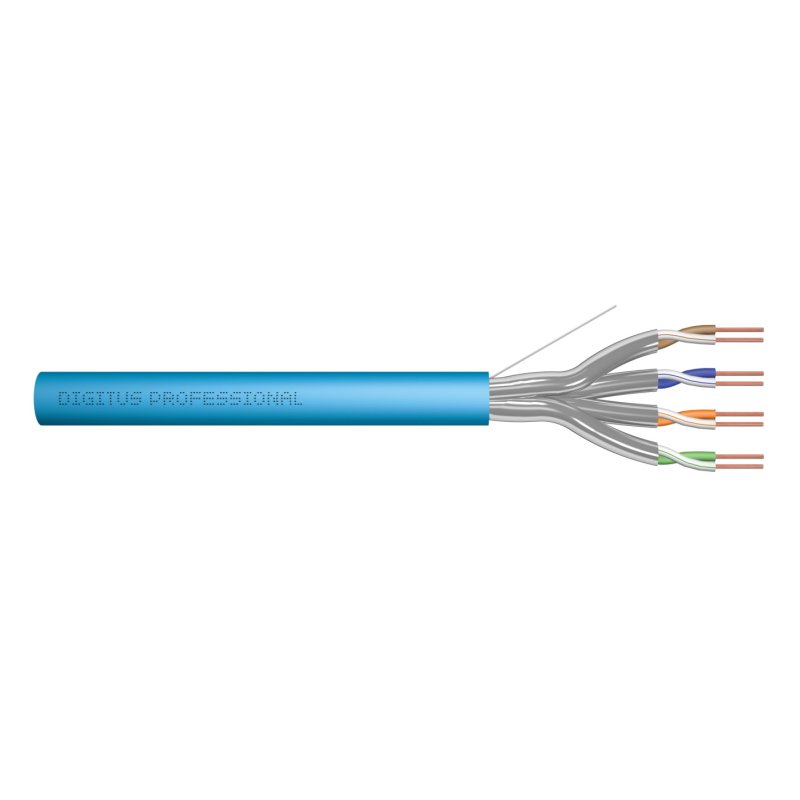

Digitus CAT 6A U/FTP installation cable, 305 m, simplex, Cca, Easy Pull Box. Cable length: 305 m, Cable standard: Cat6a, Cable shielding: U/FTP (STP), Product colour: Blue

Physical properties:
Conductor: Bare copper wire, AWG 23/1
System(s) for the assessment and verification of
Total number of insulated conductors: 8, twisted into 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100%
Outer sheath: Eca to B2ca in accordance with EN 50575; LSZH
Outer sheath thickness (nominal): 0.5 mm (Eca); 0.6 mm (Dca); 0.8 mm (Cca); 0.8 mm (B2ca)
Outer casing color: Light blue (RAL 5012)
Mechanical properties:
Strain relief: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Transport and storage temperature range: -20 °C to 60 °C
Operating temperature range: -20 °C to 75 °C
Installation temperature range: 0 °C to 50 °C
Outer diameter: 7.0 mm (Eca); 7.2 mm (Dca); 7.6 mm (Cca); 7.6 mm (B2ca)
Weight (kg/km): 56 kg (Eca); 57 kg (Dca); 58 (Cca); 58 kg (B2ca)
Electrical properties:
Impedance: 100±15 Ohm @ 4 - 100MHz; 100±25 Ohm @ 100-500 MHz;
Capacitance: 45 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-earth): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance)
Operating voltage: 72 Vdc max.
Coupling attenuation: CA-Type 2
Phase delay: 450 nS/100 m max.
Time delay: 25 nS/100 m max.
Separation class: "c" according to EN 50174-2
NVP: 70%
