Rupture de stock, ce produit n'est plus commercialisé

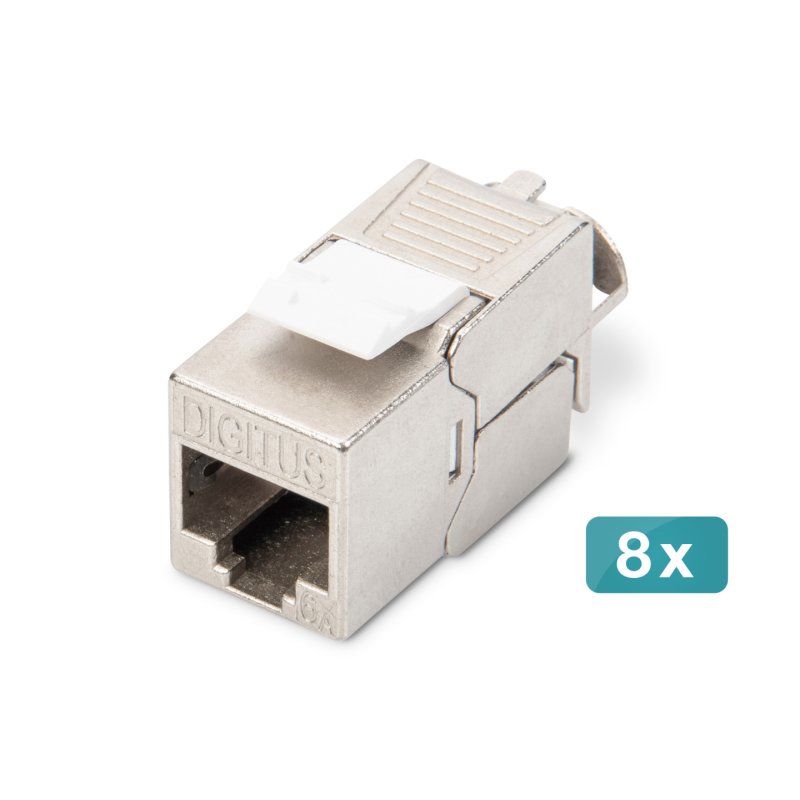

Digitus Digitus CAT 6A Keystone module, shielded, tool-free mounting connection - 8 pcs.

Name: Digitus CAT 6A Keystone module, shielded, tool-free mounting connection - 8 pcs.
Brand: Digitus
SKU: DN-93615-8
Price: 29.9 EUR
Availability: OutOfStock

Digitus CAT 6A Keystone module, shielded, tool-free mounting connection - 8 pcs., Flat, Silver, RJ-45, LSA, Female, 10GBase-T

Manufacturer reference DN-93615-8

EAN13 4016032490579

€29.90

Out of stock

Digitus CAT 6A Keystone module, shielded, tool-free mounting connection - 8 pcs.. Construction type: Flat, Product colour: Silver, Connector 1: RJ-45. Quantity per pack: 8 pc(s)

Category 6A 10GBase-T, 500 MHz
ISO/IEC 11801 3rd Edition, EN 50173-1
Suitable for IEEE 802.3 af/at/bt - PoE, PoE (4PPoE in permanent link)

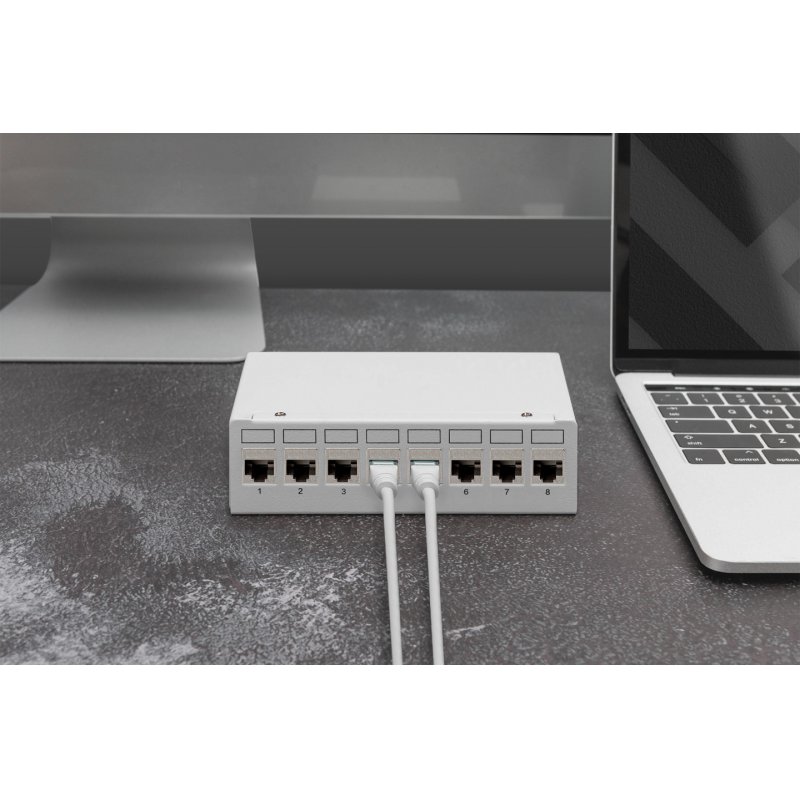

Suitable for distribution panel and junction box installation
RJ45 socket, 8P8C
Cable installation via insulation displacement connectors, color-coded according to EIA/TIA 568 A & B
Strain relief and cable fixing using cable ties
Tool-free mounting connection
360° shield contacting
Housing material: Zinc die-cast - nickel-plated
Contact material: Phosphor bronze
Coating Contacts: Nickel, gold-plated 0.5 μ
Insertion force: Max. 30N (according to IEC 60603-7-51)
Holding force: 7.7 kg between socket and plug
Operating temperature: -20 °C up to 70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
Copper conductor diameter: AWG (26/7 - 22/1), stranded and solid wire
Tested with AWG 22/1 solid installation cable
(DIGITUS® DK-174X-A-VH-X; AWG 22/1 Cat.7A installation cable)
Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Tool-free installation using LSA insulation displacement connectors, color-coded in accordance with EIA/TIA 568 A & B
Intelligent cable manager (reclosable)
CAT 6A Keystone module set: 8 pieces
Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
Weight: 19.5 g
