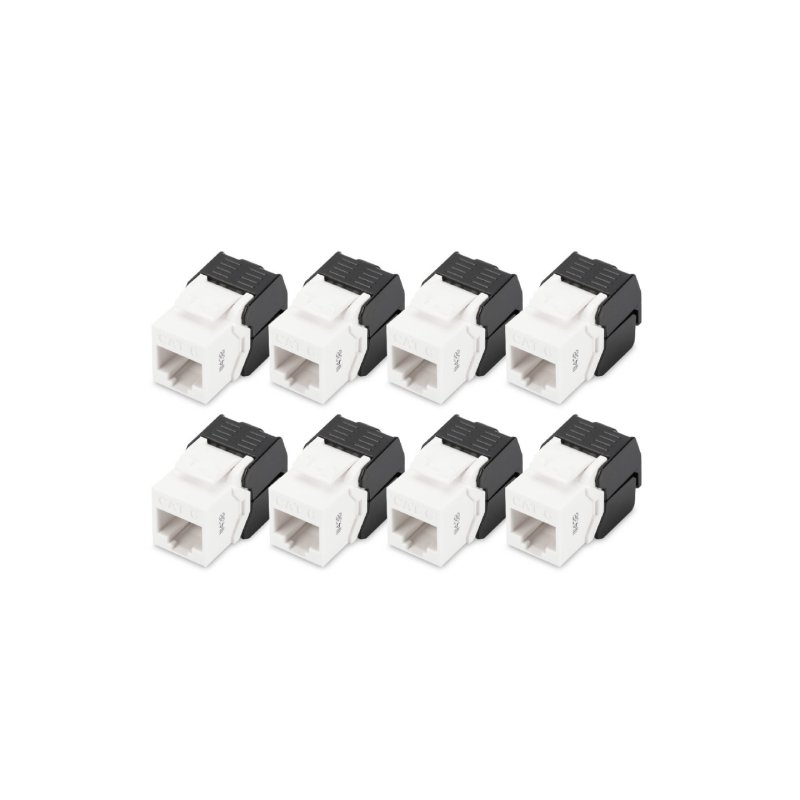

Digitus Digitus CAT 6 Keystone Jack, unshielded - 8 pieces

Name: Digitus CAT 6 Keystone Jack, unshielded - 8 pieces
Brand: Digitus
SKU: DN-93603-8
Price: 14 EUR
Availability: OutOfStock

Digitus CAT 6 Keystone Jack, unshielded - 8 pieces, Flat, Black, White, RJ-45, LSA, Female, Female

Manufacturer reference DN-93603-8

EAN13 4016032495178

€14.00

Out of stock

Digitus CAT 6 Keystone Jack, unshielded - 8 pieces. Construction type: Flat, Product colour: Black, White, Connector 1: RJ-45. Package volume: 1512 cm³, Package width: 120 mm, Package depth: 180 mm. Quantity per pack: 8 pc(s)

Transmission properties: Category 6
Area of application: Up to 250 MHz, 1GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 483 mm (19") cabinet mounting
RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Cable fixing with smart cable ties
Tool-free installation
Technical properties:
RJ45 female material: ABS UL 94V-0
LSA termination clamp: Krone LSA , UL 94V-2, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to 70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
8 pieces
