• Rupture de stock, ce produit n'est plus commercialisé

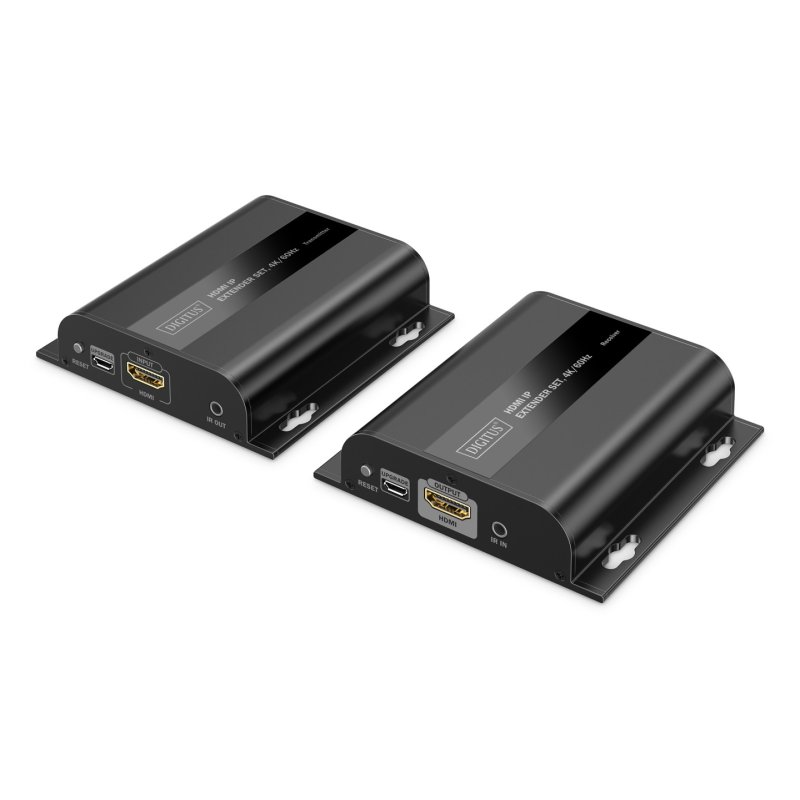

Digitus Digitus HDMI IP Extender Set, 4K/60Hz

Digitus HDMI IP Extender Set, 4K/60Hz, 4096 x 2160 pixels, AV transmitter & receiver, 200 m, Wired, Black, HDCP
DS-55351
4016032501893
€240.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus HDMI IP Extender Set, 4K/60Hz. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired, USB connector type: Micro-USB. Power source type: DC, Operating voltage (transmitter): 5 V, Output current: 1 A. Receiver dimensions (WxDxH): 94 x 97 x 24 mm, Receiver weight: 154 g, Transmitter dimensions (WxDxH): 94 x 97 x 24 mm. Package width: 149 mm, Package depth: 199 mm, Package height: 80 mm
  • Max. Resolution: Ultra HD 4K/60Hz (4096x2160p)
  • Max. Range point-to-point connection: 200 m
  • Max. Range point-to-multipoint connection: 120 m
  • Max. Cascading range per section: 120 m
  • Supports CAT6 or higher network cables
  • HDMI 2.0
  • HDCP 2.2 / 1.4
  • Max. Video bandwidth: 18 Gbps
  • Latency: 150-220 ms (4K/60Hz), 80-130 ms (Full HD)
  • Suitable for wall mounting
  • Supports up to 253 receiver units
  • Protection against short circuit, overvoltage, ESD (electrostatic discharge)
  • Transmitter unit (TX) connections:
  • 1x HDMI input (4K/60Hz) - Signal source connection
  • 1x RJ45 output (Gigabit Ethernet) - CAT transmission cable connection
  • 1x IR output -reception of the IR signal
  • 1x Power supply connection (DC 5V/1A) - external power supply connection
  • 1x Micro USB - FW Update Port
  • 1x Reset button
  • 3x Status LED
  • Receiver unit connections (RX):
  • 1x HDMI output (4K/60Hz) - Display connection
  • 1x RJ45 input (Gigabit Ethernet) - CAT transmission cable connection
  • 1x IR input - forwarding of the IR signal
  • 1x power supply connection (DC 5V/1A) - external power supply connection
  • Operating temperature: -20° - 60° C
  • Power consumption: TX approx. 3.5 W, RX approx. 2.5 W
  • Dimensions (1 unit): L 9.7 x W 9.4 x H 2.4 cm
  • Weight: TX 156 g, RX 154 g
  • Housing: Metal
  • Color: Black

Data sheet

Colour
Black
Garantie
2 ans

Specific References

EAN13
4016032501893
