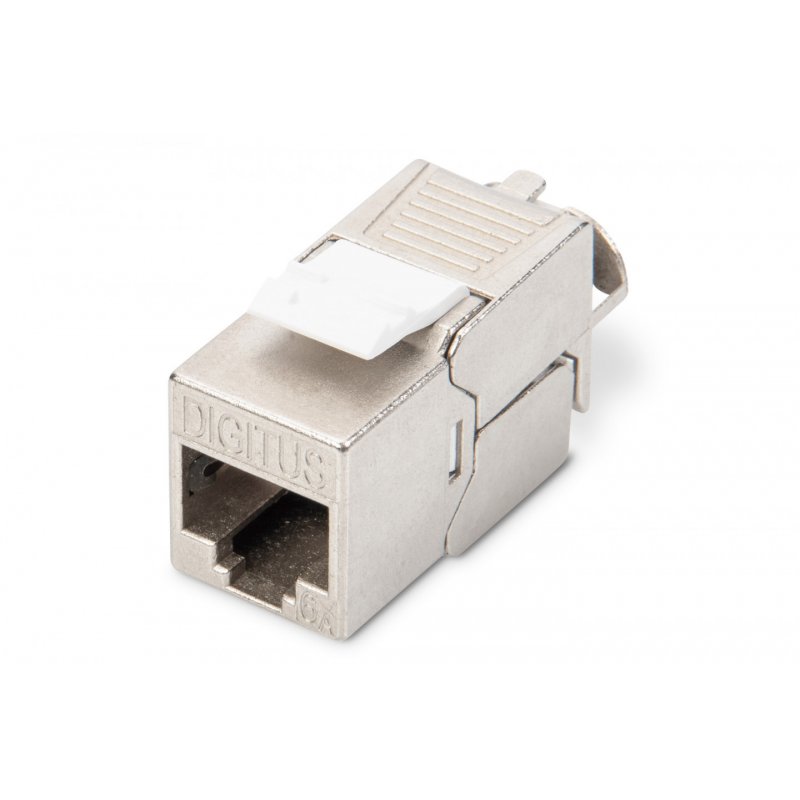

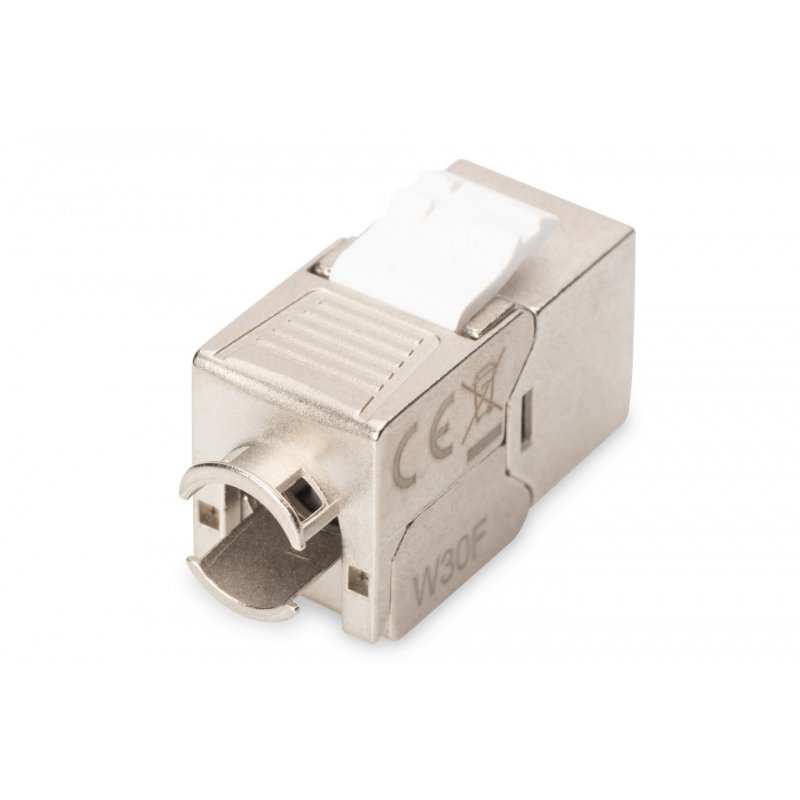

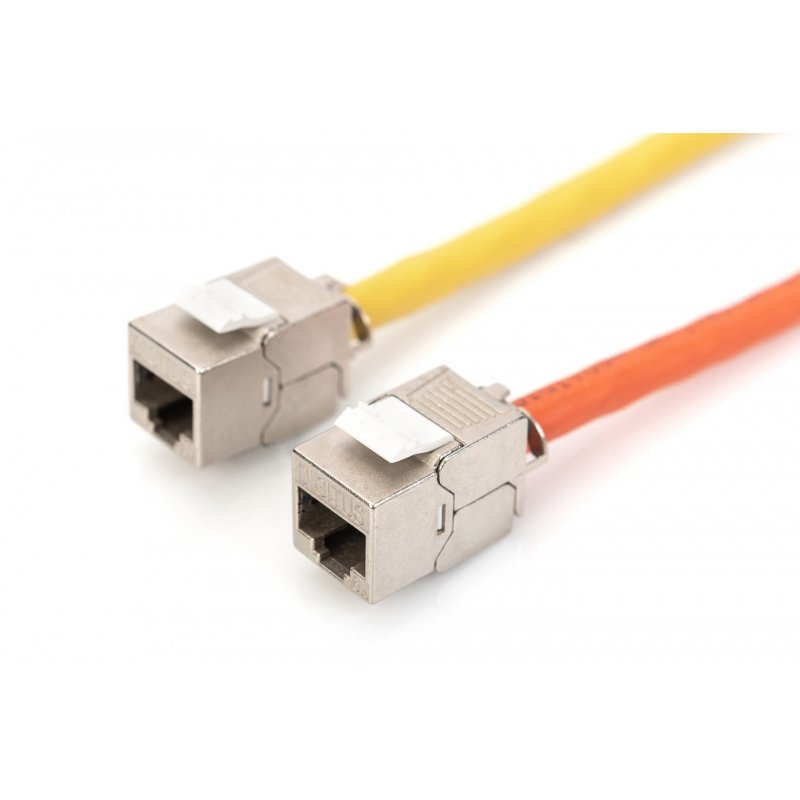

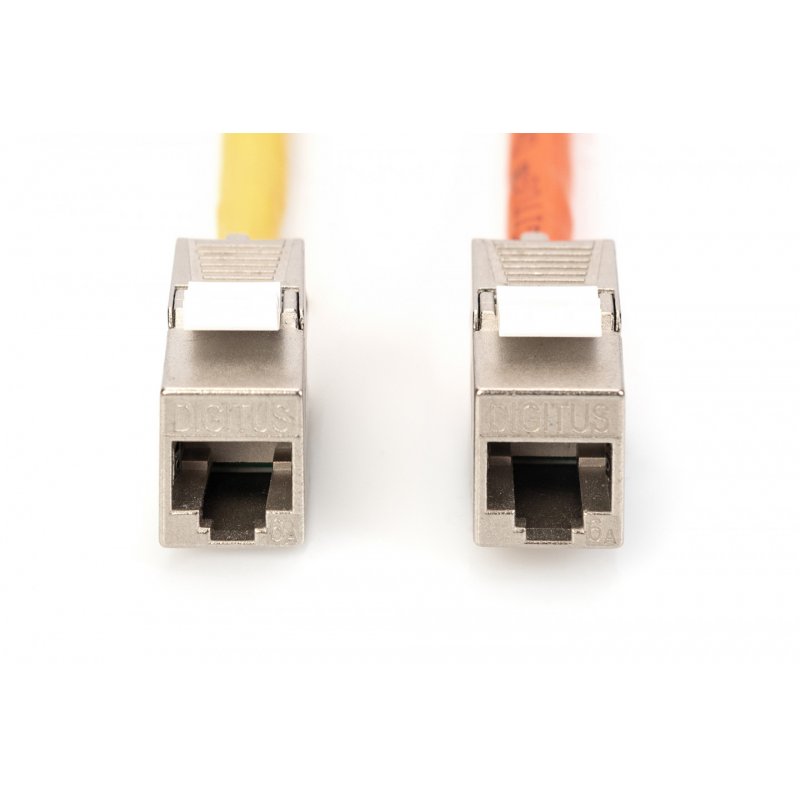

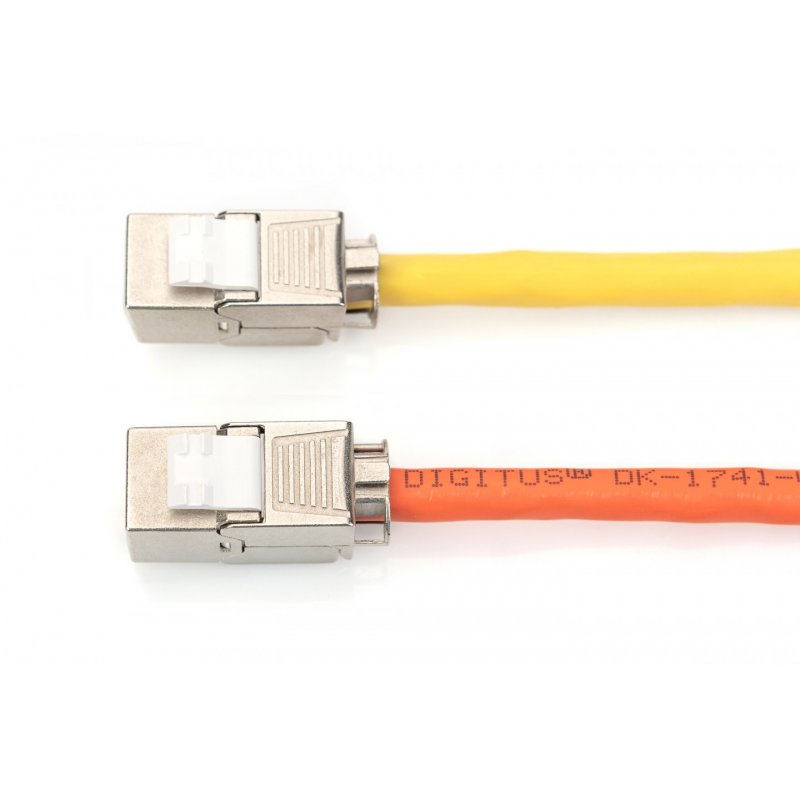

Digitus Digitus CAT 6A Keystone Module, shielded, toolfree Modul

Digitus CAT 6A Keystone Module, shielded, toolfree Modul, -10 - 60 °C, 14 mm, 34 mm, 20 mm, 22 g, 9.765 cm³
DN-93615
4016032293767
€6.00
VAT included

Visa
Mastercard
PayPal
Digitus CAT 6A Keystone Module, shielded, toolfree Modul. Width: 14 mm, Depth: 34 mm, Height: 20 mm. Package volume: 9.765 cm³, Package width: 15 mm, Package depth: 31 mm. Country of origin: China
  • Category 6A 10GBase-T, 500 MHz
  • ISO/IEC 11801 3rd Edition, EN 50173-1
  • Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 802.3at, 802.3bt)
  • Suitable for modular patch panel and modular wall outlet installation.
  • RJ45-Jack, 8P8C
  • Cable installation via insulation-displacement connectors, color coded in accordance with EIA/TIA 568 A & B
  • Cable grip and cable fixation using intelligent cable manager
  • Tool-free mounting connection
  • 360° shield contact
  • Case material: Zinc die-cast – nickel-plated
  • Contact material: Phosphor bronze
  • Contact coating: Nickel, gold-plated 0.5 µ
  • Insertion force: Max. 30N (as per IEC 60603-7-51)
  • Holding force: 7.7 kg between jack and plug
  • Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
  • Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
  • Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire
  • Tested with AWG 22/1 solid installation cable
  • (DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable)
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
  • Tool-free installation using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & B
  • Intelligent cable manager (resealable)
  • Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
  • Weight: 19.5 g
Colour
Black
Garantie
2 ans
Marque
Digitus
Modèle
DN-93615
Weight

Specific References

ean13
4016032293767
No customer reviews for the moment.
