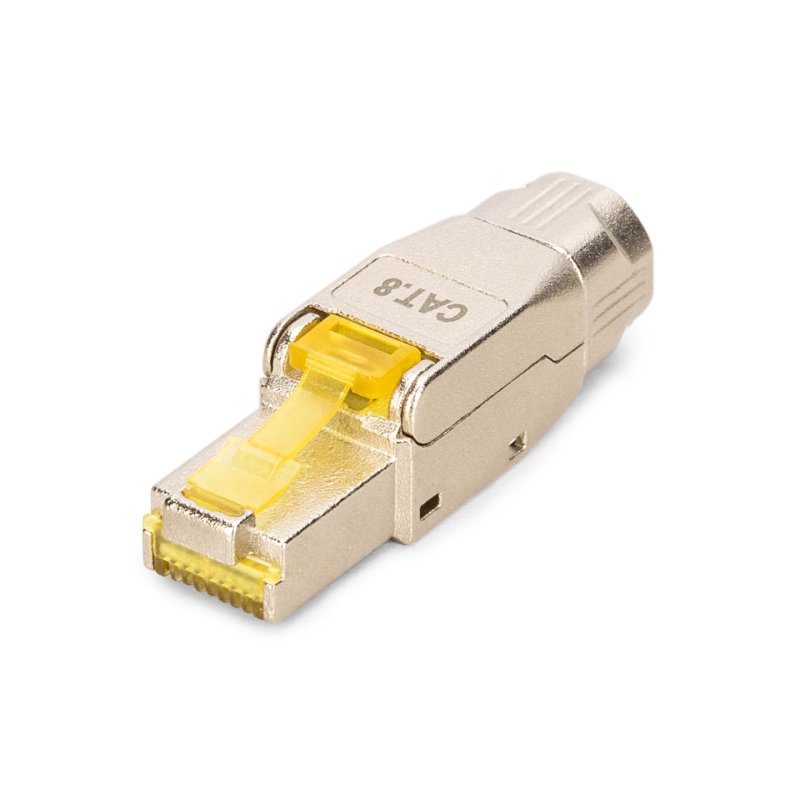

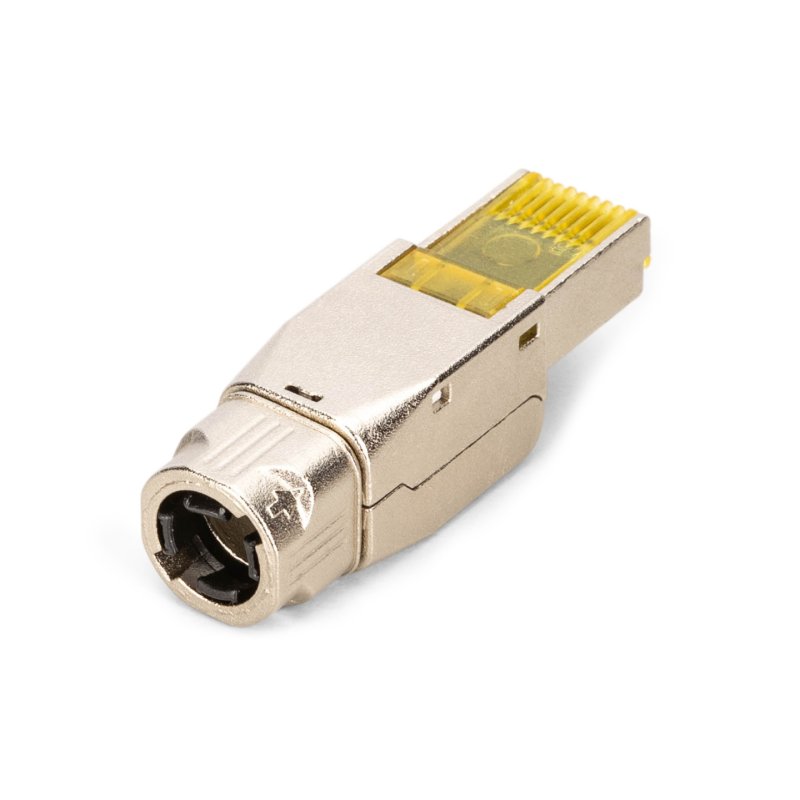

Digitus Digitus CAT 8.1 field connector, shielded, tool-free mounting connection
Digitus CAT 8.1 field connector, shielded, tool-free mounting connection, RJ-45, Silver, Yellow, Male, Straight, Cat8.1, Nickel/Gold
DN-93838
4016032499381
€9.90
VAT included
Description
Digitus CAT 8.1 field connector, shielded, tool-free mounting connection. Connector(s): RJ-45, Product colour: Silver, Yellow, Connector gender: Male. Quantity per pack: 1 pc(s), Package width: 20 mm, Package depth: 40 mm
- Transmission characteristics:
- Category 8.1 - 25/40 GBase-T, 2000 MHz
- ISO/IEC 11801 3rd Edition, EN 50173-1
- Suitable for PoE/PoE /4PPoE (IEEE 802.3af, 3at, 3bt)
- General specifications:
- Tool-free cable installation via LSA cutting terminals, color-coded according to EIA/TIA 568 A&B
- Strain relief and cable fixation with screw cap
- RJ45 plug, 8P8C
- 360° shield contacting
- Technical specifications:
- Housing material: die-cast zinc
- Contact material: Phosphor bronze
- Coating of the contacts: Nickel, gold-plated 0.5 µ
- Physical specifications:
- Insertion force: Max. 30N (according to IEC 60603-7-81)
- Operating temperature: -20°C up to 70°C (ISO/IEC 11801, ANSI/TIA 568 C.2)
- Mating cycles: > 1500 (ISO/IEC 11801, IEC 60603-7-81)
- Copper conductor diameter: AWG (26/7 - 22/1), stranded and solid wire
- Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
Specific References
- EAN13
- 4016032499381
