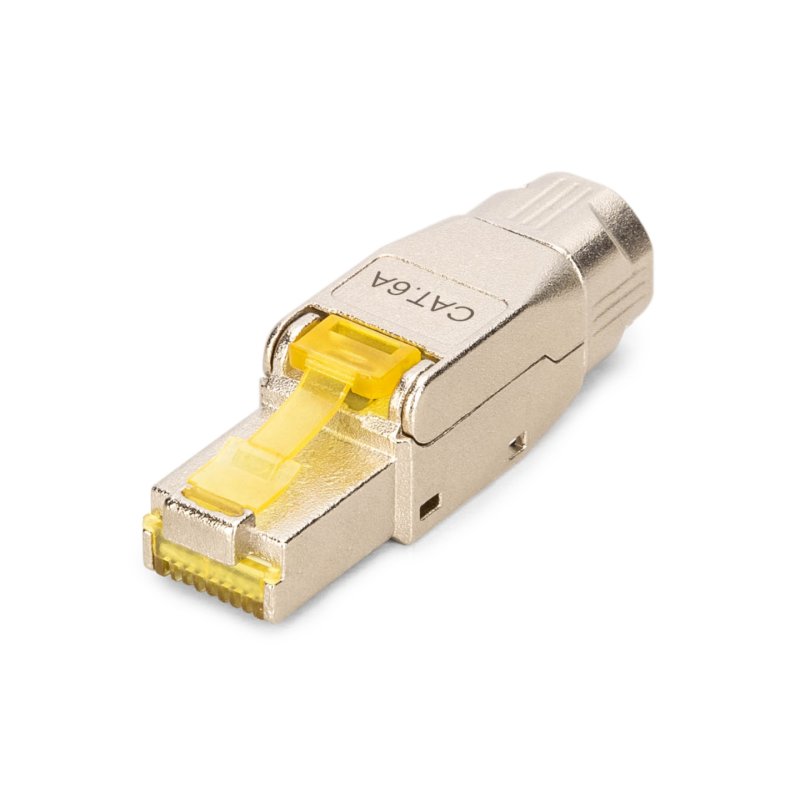

Digitus Digitus CAT 6A field connector, AWG 22-27, supports up to 4PPoE, IEEE802.3bt

Digitus CAT 6A field connector, AWG 22-27, supports up to 4PPoE, IEEE802.3bt, RJ-45, Silver, Yellow, Male, Straight, Cat6a, Nickel/Gold
DN-93638
4016032499367
€7.00
VAT included

Visa
Mastercard
PayPal

Description

Digitus CAT 6A field connector, AWG 22-27, supports up to 4PPoE, IEEE802.3bt. Connector(s): RJ-45, Product colour: Silver, Yellow, Connector gender: Male. Quantity per pack: 1 pc(s), Package width: 20 mm, Package depth: 40 mm
  • Transmission properties:
  • Category 6A, 10GBase-T, 500 MHz
  • ISO/IEC 11801 3rd Ed., EN 50173-1, IEC 60603-7-51
  • Suitable for PoE/PoE/4PPoE (IEEE 802.3af, 3at, 3b)
  • General properties:
  • Cable installation via IDC strips, color coded according to EIA/TIA 568 A & B
  • Cable fixation by screwable strain relief
  • RJ45 Plug, 8P8C
  • Tool-free mounting connection
  • 360° shield coverage
  • Technical properties:
  • Housing material: Zinc die-cast
  • Contact material: Phosphor bronze
  • Coating of the contacts: Nickel, gold-plated 0.5 µ
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Operation temperature: -20°C bis zu 70°C (ISO/IEC 11801, ANSI/TIA 568 C.2)
  • Mating cycles female: > 1500 acc. to ISO/IEC 11801, IEC 60603-7-5
  • IDC wire size: AWG (27/7 - 22/1), solid and stranded conductor
  • Tested with AWG 22/1 solid conductor
  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

Data sheet

Colour
Black
Garantie
2 ans
Marque
Digitus

Specific References

EAN13
4016032499367
