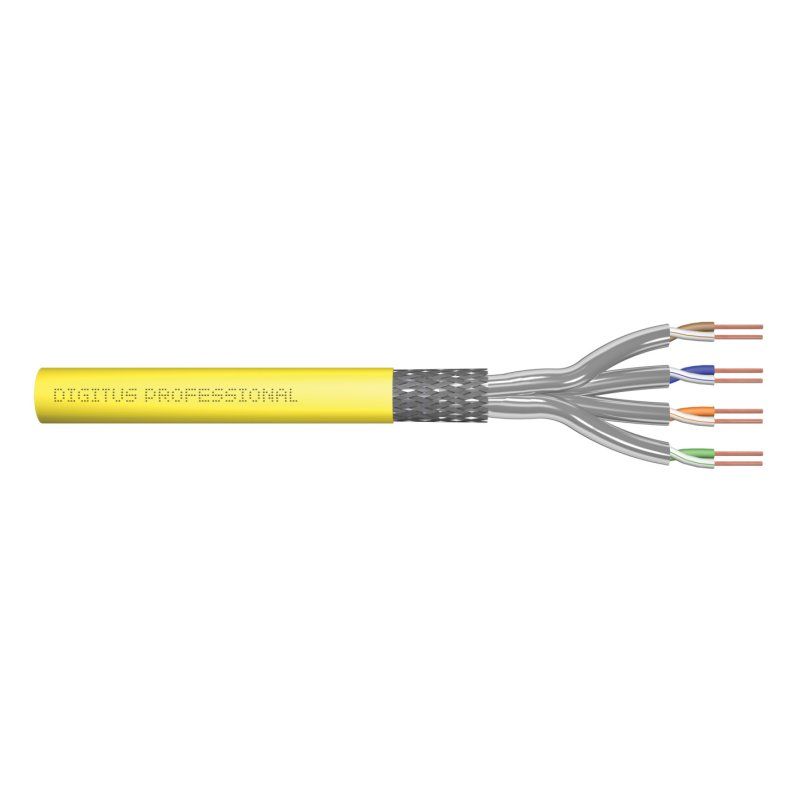

Digitus Digitus Cat.7A S/FTP, installation cable, 500 m, simplex, Cca

Name: Digitus Cat.7A S/FTP, installation cable, 500 m, simplex, Cca
Brand: Digitus
SKU: DK-1744-A-VH-5
Price: 779.9 EUR
Availability: OutOfStock

Digitus Cat.7A S/FTP, installation cable, 500 m, simplex, Cca, 500 m, Cat7a, S/FTP (S-STP), Yellow

Manufacturer reference DK-1744-A-VH-5

EAN13 4016032441670

€779.90

Out of stock

Digitus Cat.7A S/FTP, installation cable, 500 m, simplex, Cca. Cable length: 500 m, Cable standard: Cat7a, Cable shielding: S/FTP (S-STP), Data transfer rate: 10000 Mbit/s, Product colour: Yellow

Physical properties:
Conductor: Bare copper wire, AWG 22/1
System(s) for the assessment and verification of
Insulation: SFS-PE (foamed polyethylene jacket)
Total number of insulated conductors: 8, twisted into 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Shielding of the individual pairs: aluminum-laminated polyester film, covers 100%
Overall shielding: tinned copper braiding
Outer sheath: Cca acc. to EN 50575; LSZH
Outer sheath thickness (nominal): 0.60 mm (Cca)
Outer sheath color: Yellow (RAL 1028)
Mechanical properties:
Strain relief: 150 N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Transport and storage temperature range: -20 °C to 60 °C
Operating temperature range: -20 °C to 60 °C
Installation temperature range: 0 °C to 50 °C
Outer diameter (nominal): 7.8 mm (Cca)
Weight (kg/km): 65 kg (Cca)
Electrical properties:
Impedance: 100±5 Ohm @ 1-1000 MHz
Capacitance: 40 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-earth): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
Loop resistance: 147 Ohm/Km max. (2% max. unbalanced resistance)
Operating voltage: 72 Vdc max.
Coupling attenuation: CA-Type 1b
Phase delay: 450 nS/100 m max.
Time delay: 10 nS/100 m max.
Separation class: "d" according to EN 50174-2
NVP: 79%
Flame spread: EN 60332-1-2 (LSOH-PVC)
Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
Smoke density: EN 61034-2
