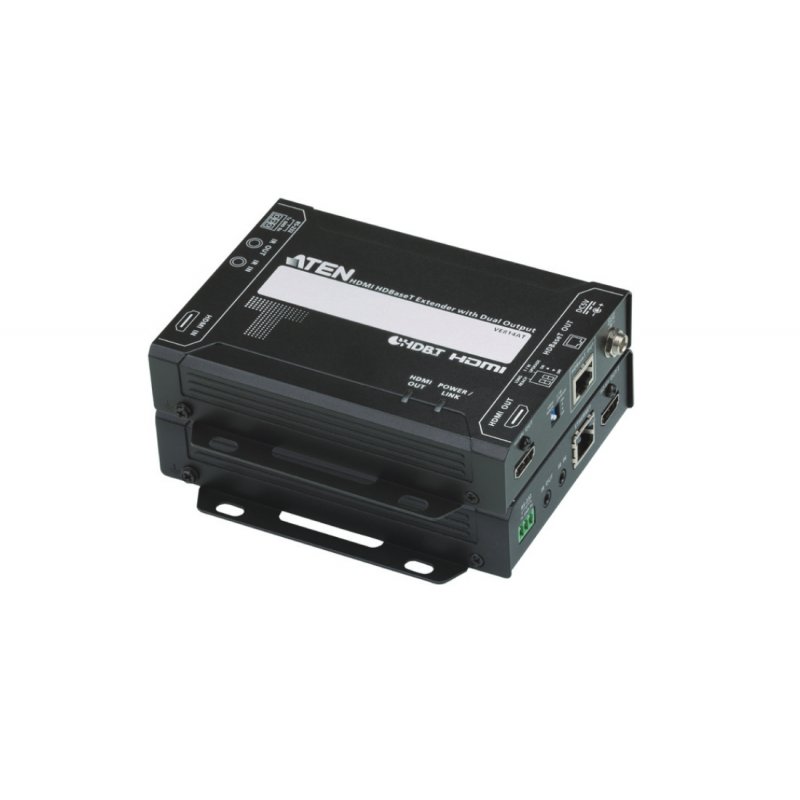

Aten ATEN HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)

ATEN HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A), 4096 x 2160 pixels, AV transmitter & receiver, 150 m, Wired, 3D, HDCP
VE814A
4710469342318
€719.90
VAT included

Visa
Mastercard
PayPal

Description

ATEN HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A). Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired, Serial interface type: RS-232. Receiver dimensions (WxDxH): 123 x 140.2 x 30 mm, Receiver weight: 470 g, Transmitter dimensions (WxDxH): 123 x 140.2 x 30 mm. Package width: 100 mm, Package depth: 283 mm, Package height: 173 mm. Master (outer) case width: 292 mm, Master (outer) case length: 517 mm, Master (outer) case height: 194 mm
  • Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
  • Extends Ethernet communication using the Ethernet pass-through port*
  • Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
  • ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output
  • RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Supports wide screen format
  • Built-in 8 kV/15 kV ESD protection
  • Plug-and-play
  • Rack-mountable

Data sheet

Colour
Black
Garantie
2 ans
Marque
Aten

Specific References

ean13
4710469342318
