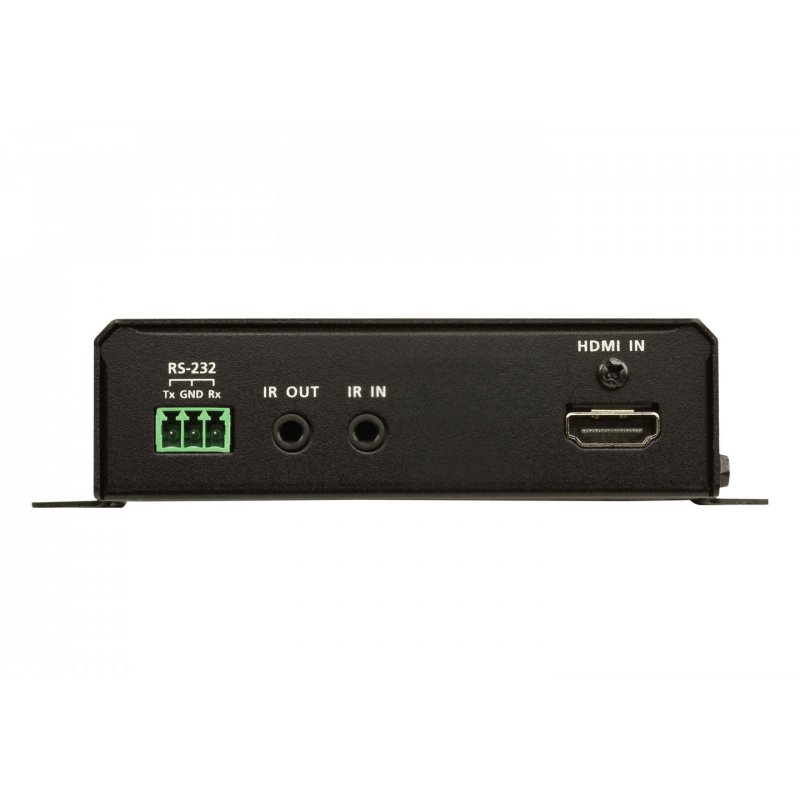

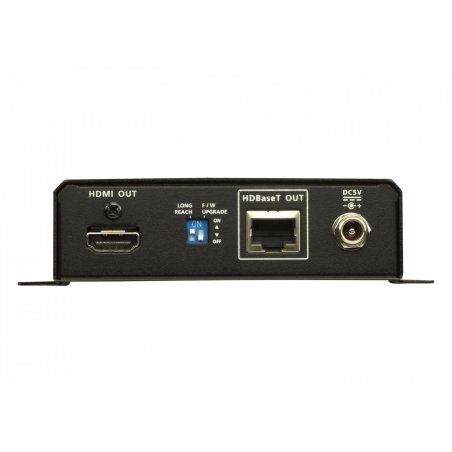

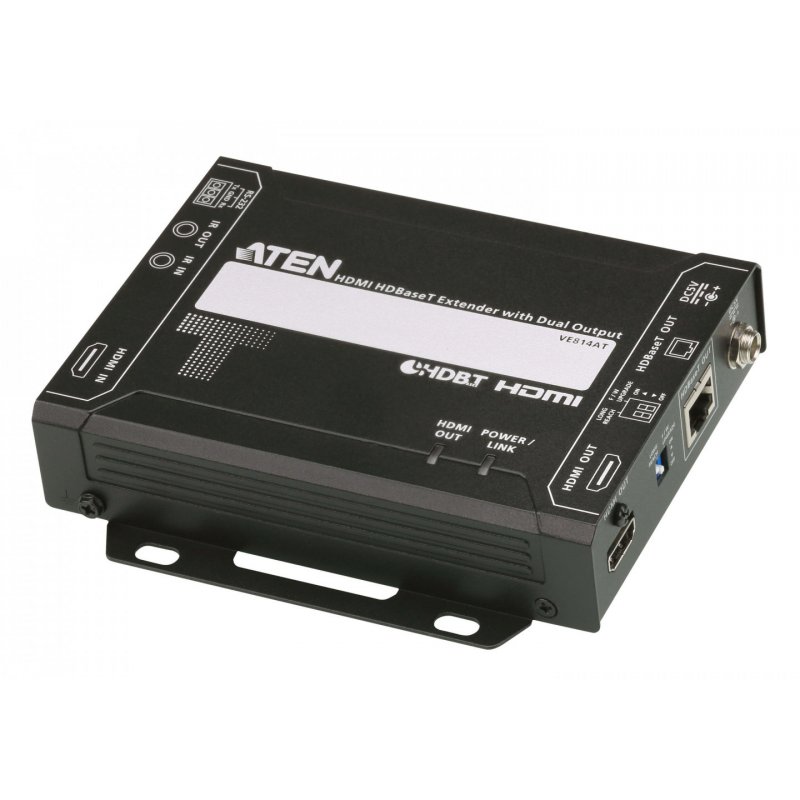

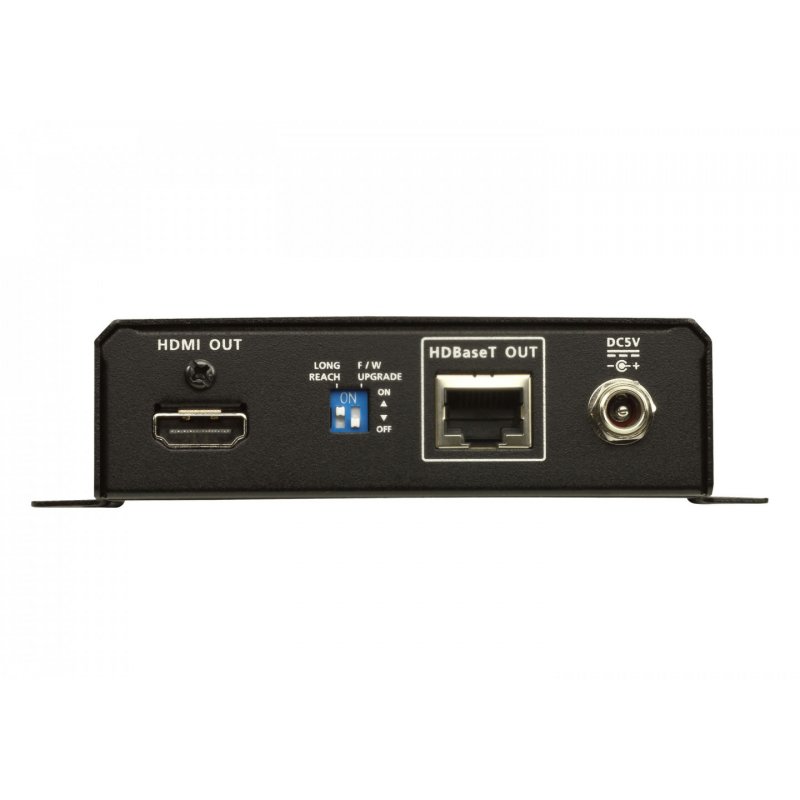

Aten ATEN HDMI HDBaseT Transmitter with Local Output (4K@100m) (HDBaseT Class A)

ATEN HDMI HDBaseT Transmitter with Local Output (4K@100m) (HDBaseT Class A), 4096 x 2160 pixels, AV transmitter, 150 m, Wired, 3D, HDCP
VE814AT
4710469342325
€369.90
VAT included

Visa
Mastercard
PayPal

Description

ATEN HDMI HDBaseT Transmitter with Local Output (4K@100m) (HDBaseT Class A). Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired, Serial interface type: RS-232. Width: 123 mm, Depth: 140.2 mm, Height: 30 mm. Package width: 59 mm, Package depth: 239 mm, Package height: 160 mm. Master (outer) case width: 250 mm, Master (outer) case length: 325 mm, Master (outer) case height: 175 mm
  • Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
  • Extends Ethernet communication using the Ethernet pass-through port
  • Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
  • ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output
  • RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Supports wide screen format
  • Built-in 8 kV/15 kV ESD protection
  • Plug-and-play
  • Rack-mountable

Data sheet

Colour
Black
Garantie
2 ans
Marque
Aten

Specific References

ean13
4710469342325
