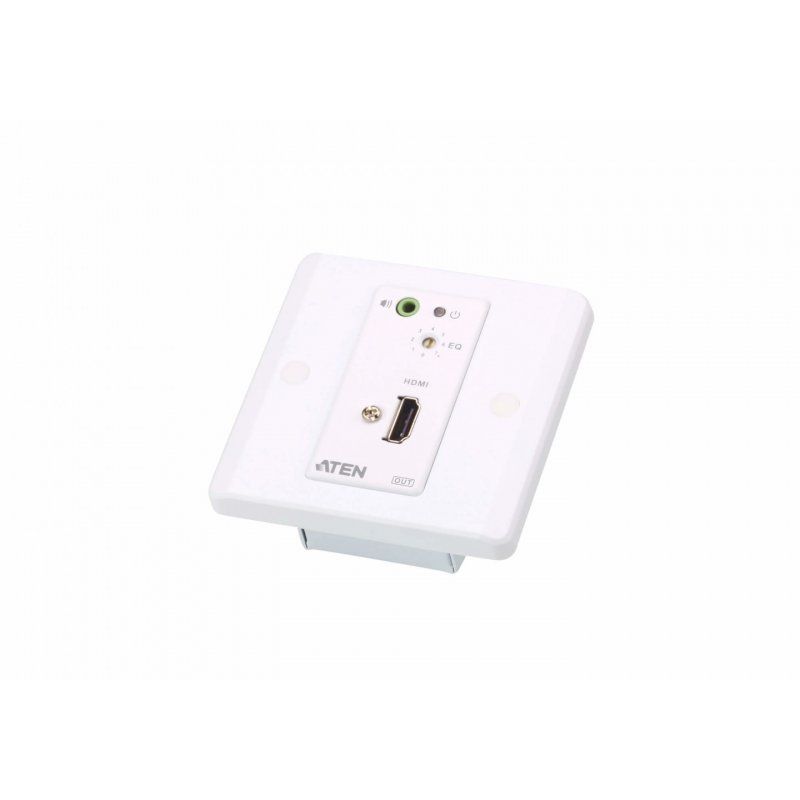

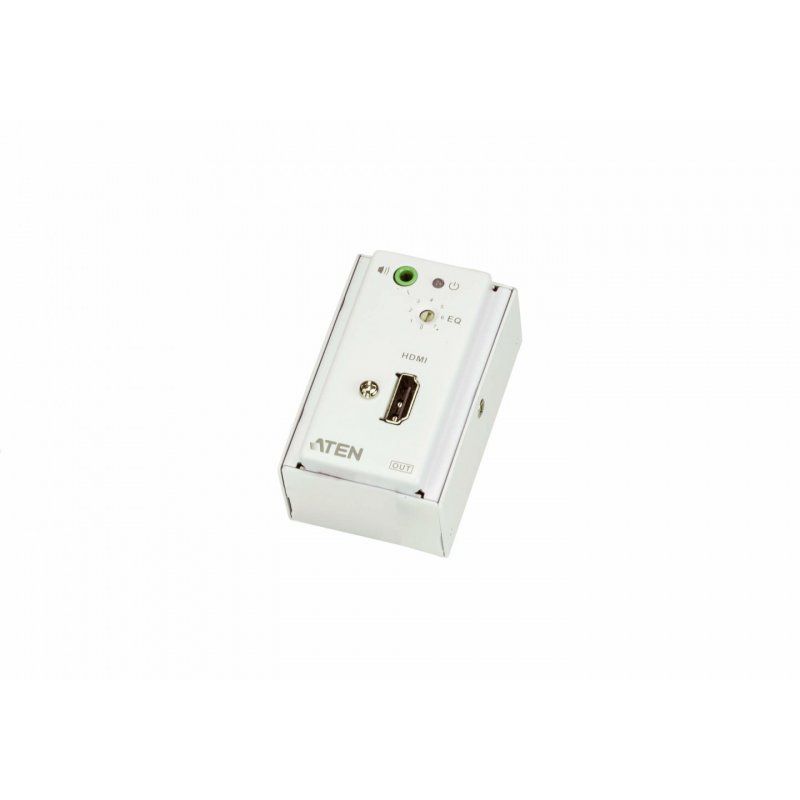

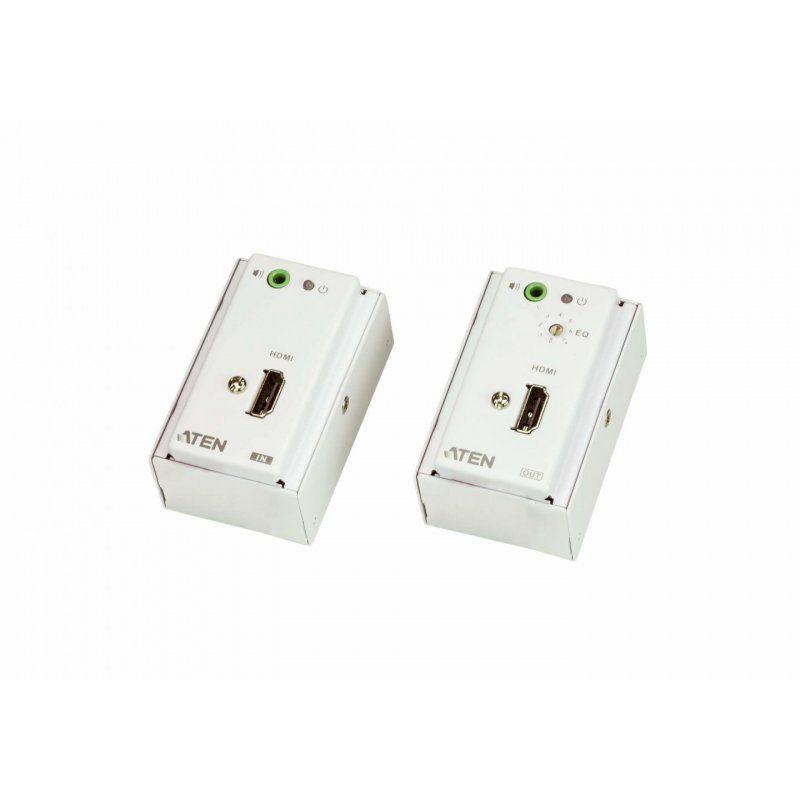

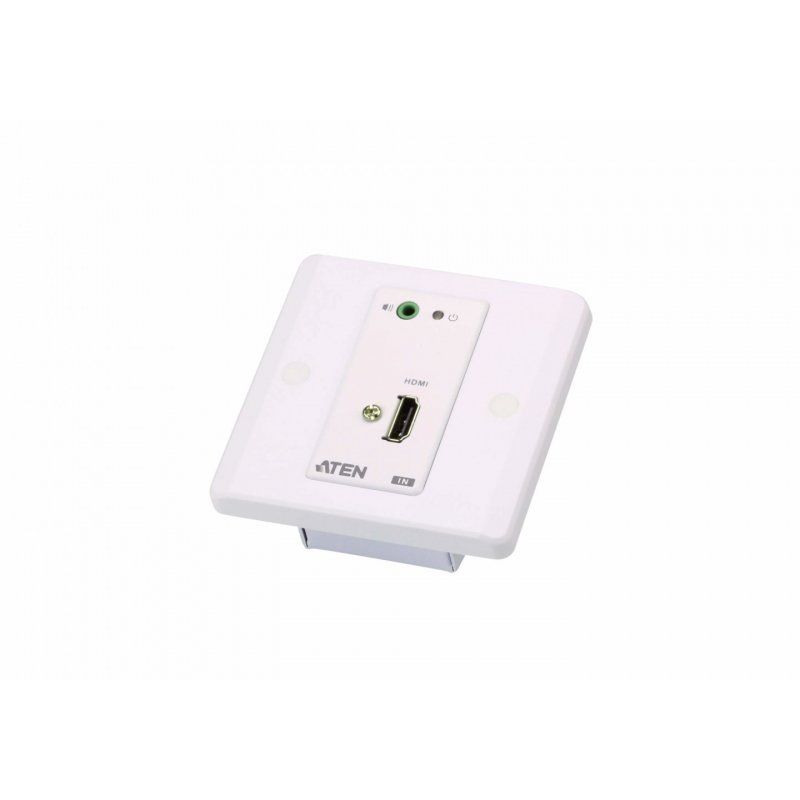

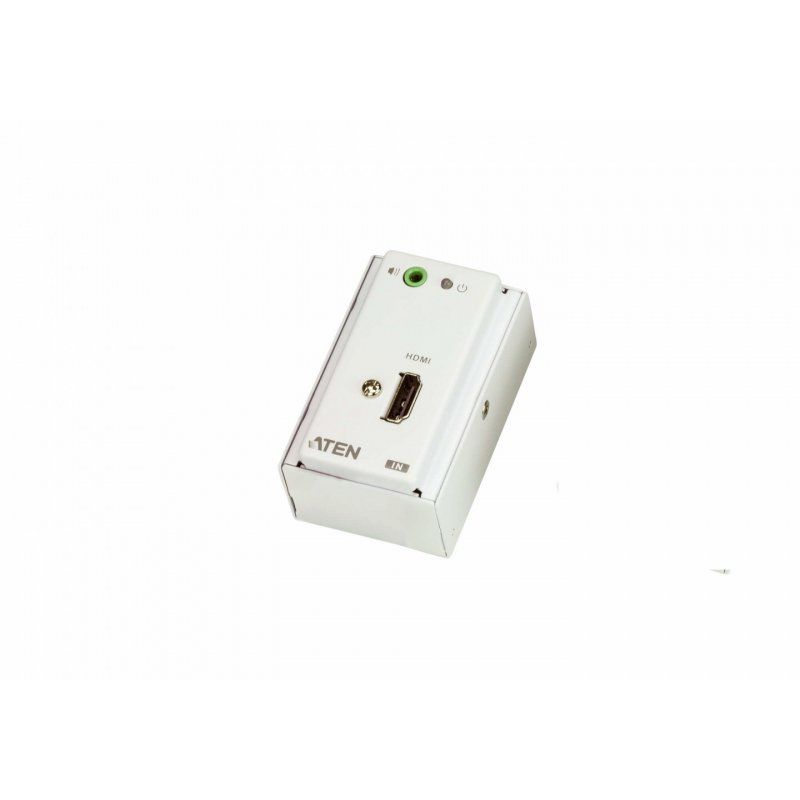

Aten ATEN HDMI/Audio Over Cat5 Extender with MK
ATEN HDMI/Audio Over Cat5 Extender with MK, 1920 x 1200 pixels, AV transmitter & receiver, 60 m, Wired, 3D, HDCP
VE807
4719264645716
€219.90
VAT included
Description
ATEN HDMI/Audio Over Cat5 Extender with MK. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired. Operating voltage (transmitter): 9 V, Operating voltage (receiver): 9 V, Power consumption (transmitter) (max): 1.35 W. Weight: 500 g, Receiver dimensions (WxDxH): 44.4 x 68.6 x 40 mm, Receiver weight: 180 g. Quantity per pack: 2 pc(s), Package width: 59 mm, Package depth: 239 mm
- Uses two Cat 5e/6 cables to connect the local and remote units - one to transmit video and audio signal, and the other one is used for power signal transmission, real EDID bypass, and HDCP key authentication*
- Supports superior video quality up to 1080p @ 60 Hz at a distance of 40 m; 1080i @ 60 Hz at a distance of 60 m
- Designed to mount in one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes
- Supports 8 segment equalization adjustment via switch
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Aten
Specific References
- EAN13
- 4719264645716
