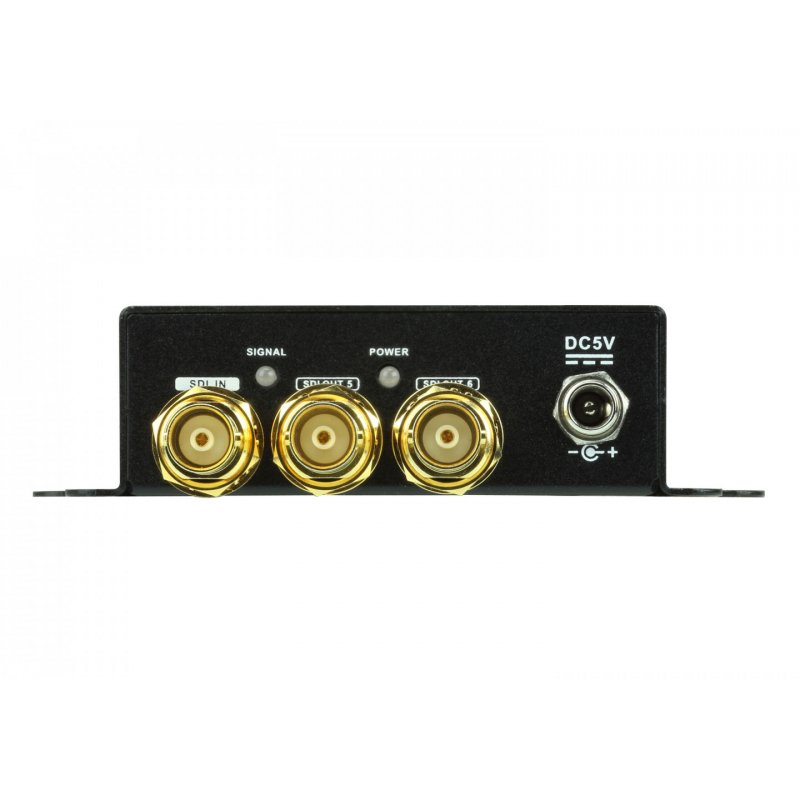

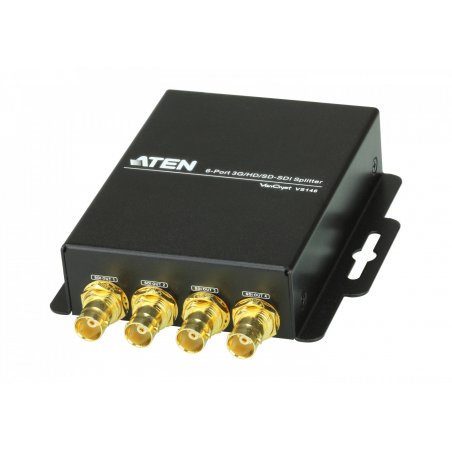

Aten ATEN VS146 video splitter BNC 6x BNC
ATEN VS146, BNC, 6x BNC, 1x BNC, Black, Metal, 300 m
VS146-AT-G
4719264641701
€499.90
VAT included
Description
ATEN VS146. Video port type: BNC, Video out: 6x BNC, Video in: 1x BNC. Product colour: Black, Housing material: Metal, Maximum operating distance: 300 m. AC input voltage: 5 V, Power consumption (typical): 10 W. Dimensions (WxDxH): 80 x 145 x 25 mm, Weight: 310 g. Packaging content: Power Adapter
- One video inputs to 6 video outputs
- Supports an SDI distance of up to 90M (3G-SDI), 150M (HD-SDI) or 300M (SD-SDI) of RG6
- Reclocking SDI signals for cascading and thus longer transmission
- Supported SDI formats:
- • SD-SDI (SMPTE 259M, up to 270Mbps)
- • HD-SDI (SMPTE 292M, 296M up to 1.485 Gbps)
- • 3G-SDI (SMPTE 424M, 425M level A,B up to 2.97 Gbps)
- Video bandwidth: 2.97Gpbs, 2.97/1.001Gbps
- Features automatic detection of 3G/HD/SD-SDI signals
- LED indication of power status and SDI signal
- Locking power connector for secure communications
- Passes all ancillary data
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Aten
Specific References
- EAN13
- 4719264641701
