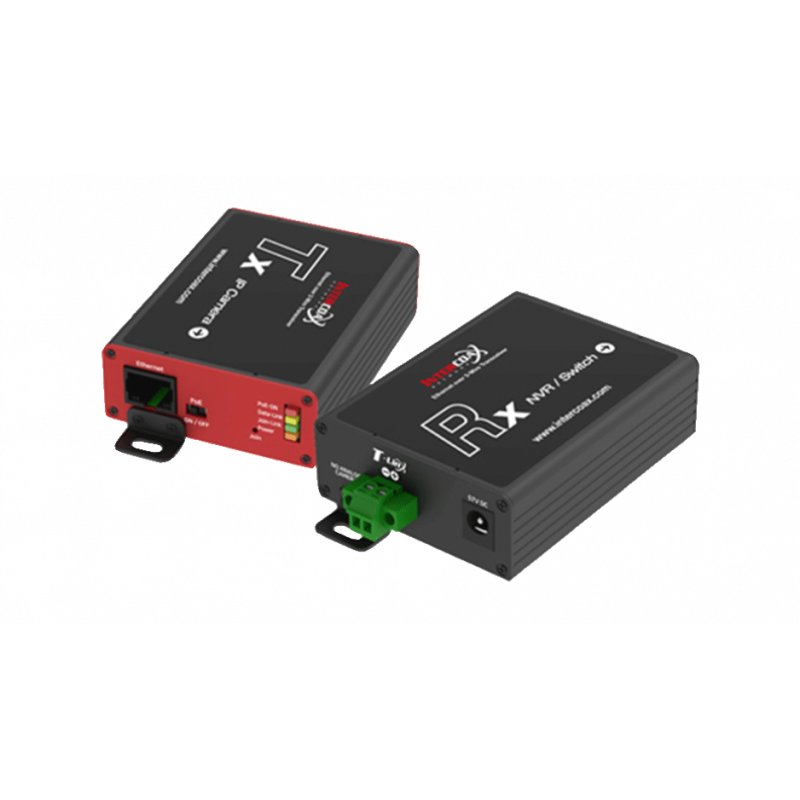

MOBOTIX Mobotix MX-A-ETP1A-2601-SET network extender Network transmitter & receiver Black 10, 100 Mbit/s

Name: Mobotix MX-A-ETP1A-2601-SET network extender Network transmitter & receiver Black 10, 100 Mbit/s
Brand: MOBOTIX
SKU: Mx-A-ETP1A-2601-SET
Price: 599.9 EUR
Availability: InStock

Mobotix MX-A-ETP1A-2601-SET, Network transmitter & receiver, 600 m, 95 Mbit/s, 10,100 Mbit/s, 10/100Base-T(X), IEEE 802.3af, IEEE 802.3at

Manufacturer reference Mx-A-ETP1A-2601-SET

EAN13 4047438041317

€599.90

In stock

Mobotix MX-A-ETP1A-2601-SET. Type: Network transmitter & receiver, Maximum transfer distance: 600 m, Data transfer rate: 95 Mbit/s. Cabling technology: 10/100Base-T(X), Networking standards: IEEE 802.3af, IEEE 802.3at, Security algorithms: 128-bit AES. Host interface: RJ-45. Product colour: Black, LED indicators: Data, PoE, Power. Total Power over Ethernet (PoE) budget: 60 W

Mx-ETP1A-2601-SET Complete set consisting of transmitter (Tx) and receiver (Rx) for implementing an Ethernet transmission link via two-wire line
Transmission of Ethernet and PoE power supply via two-wire line according to IEEE1901
Simple connection of 10/100 Mbit Ethernet end devices
Max. 95 Mbps transmission bandwidth
Range up to 600m for data / 300m for PoE (depending on the quality of the two-wire line)
128 bit AES network data encryption
Power supply of transmitter (Tx) and receiver (Rx) as well as terminal device via PoE network switch or via external power supply 56VDC / 1.2A (not included in delivery)
Connected end devices are supplied via PoE switch IEEE802.3af (PoE), IEEE802.3at (PoE ), UPoE up to 60W (requires ext. power supply)
Status LED (data, power supply, data link, PoE)
Integrated overvoltage protection (IEC 61000-4-5 4kV (1.2 / 50us), 2kA (8 / 20us))
Supply voltage: Tx: T-Linx or DC12V~57V; Rx: PoE Switch or DC48V~57V
Operating temperature: -20 to 60 °C
Dimensions Rx/Tx (LxWxH): 80.4 x 61.6 x 24.0 mm
Weight Rx/Tx: 102g each
