HETTICH FRANCE SAS Hettich 48053 drawer roller/slide
Hettich 48053, 50 pc(s)
CFA20050
4023149067501
€6.00
VAT included
Description
Hettich 48053. Quantity per pack: 50 pc(s)

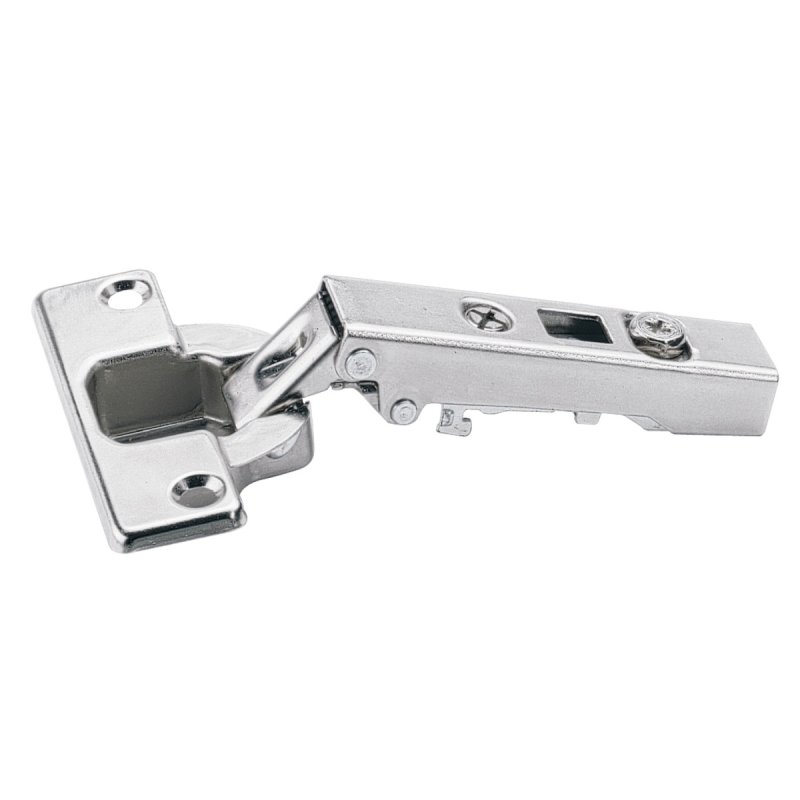

- 110° Intermat hinge
- With self closing feature (Intermat 9943)
- Quality classification under EN 15570, Level 3
- Opening angle 110°
- For door thickness 15 - 25 mm

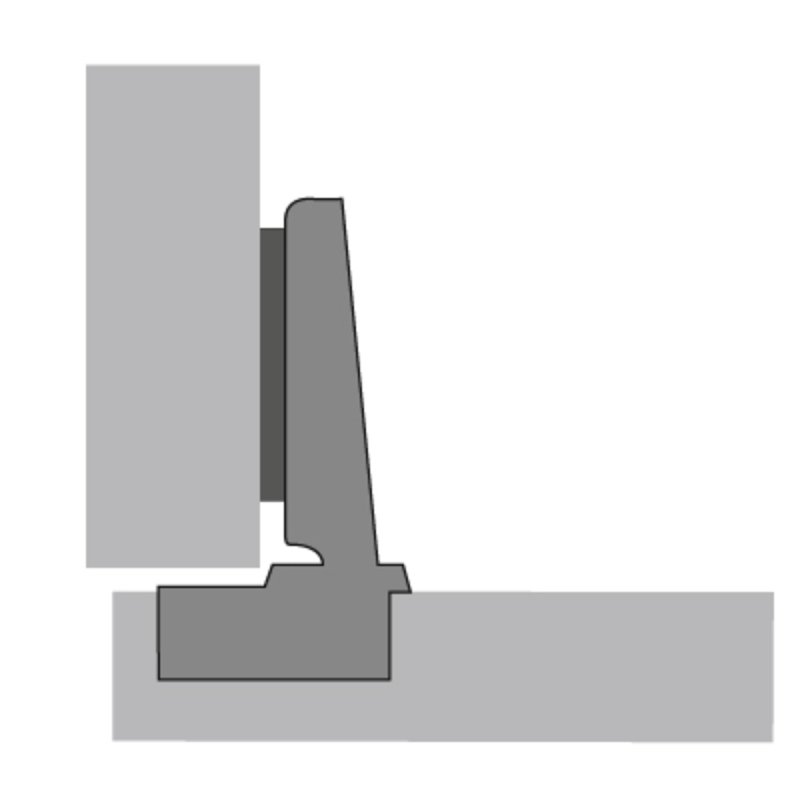

- Door mounting option overlay (B 12.5)

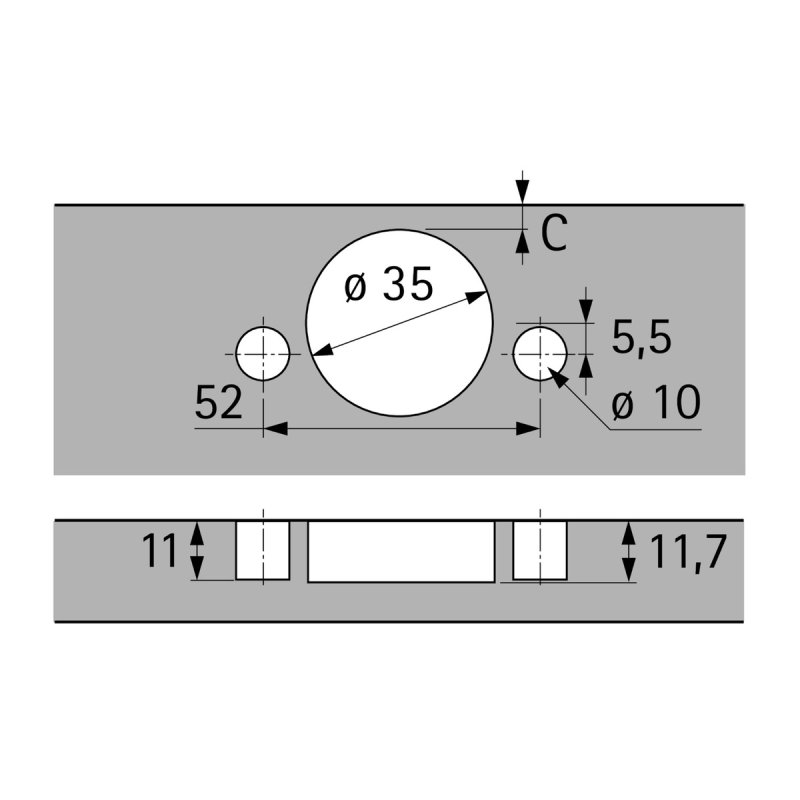

- TH - drilling pattern 52 x 5.5 mm
- Cup depth 11.6 mm

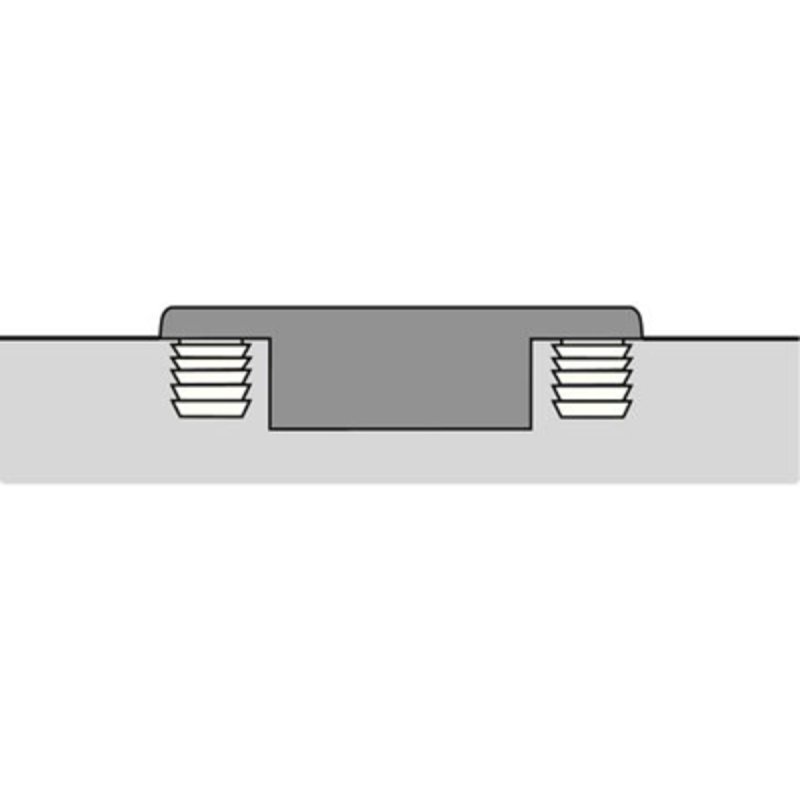

- Installation for pressing in
- Integrated overlay adjustment 2 mm / -2 mm
- Integrated depth adjustment 2.5 mm / -1.5 mm
- Height adjustment at mounting plate
- steel nickel plated
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4023149067501
