HETTICH FRANCE SAS Hettich 9091600 drawer roller/slide
Hettich 9091600, 50 pc(s)
CFA10286
4023149252969
€8.00
VAT included
Description
Hettich 9091600. Quantity per pack: 50 pc(s)

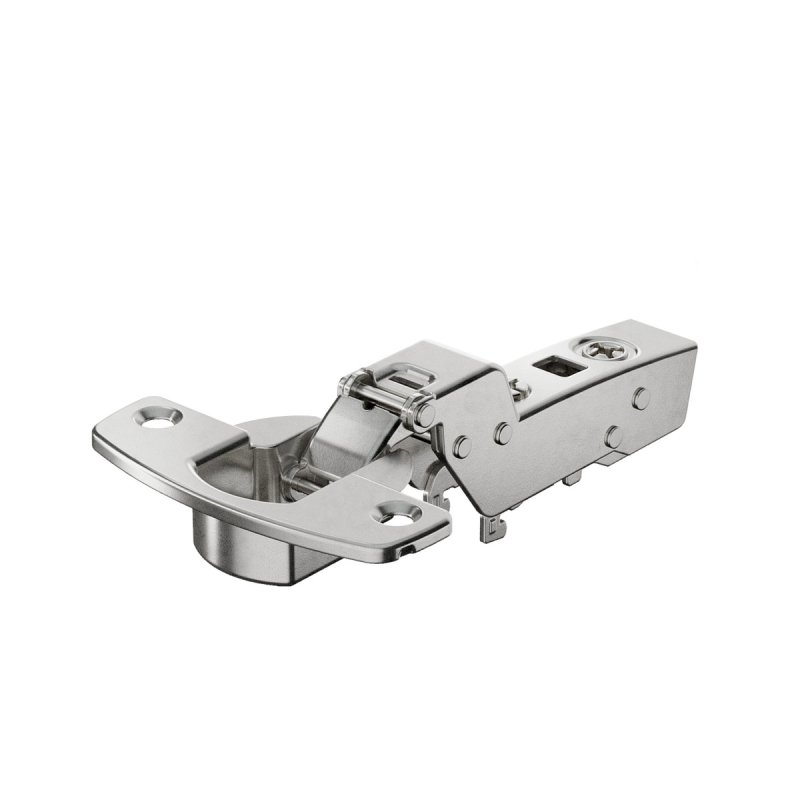

- Sensys thick door hinge, door thickness up to 32 mm
- Without Silent System, without self closing feature, for handleless applications (Sensys 8661)
- Quality classification under EN 15570, Level 2
- Opening angle 95°
- For door thickness 15-32 mm
- Door mounting option inset (B -4 mm)

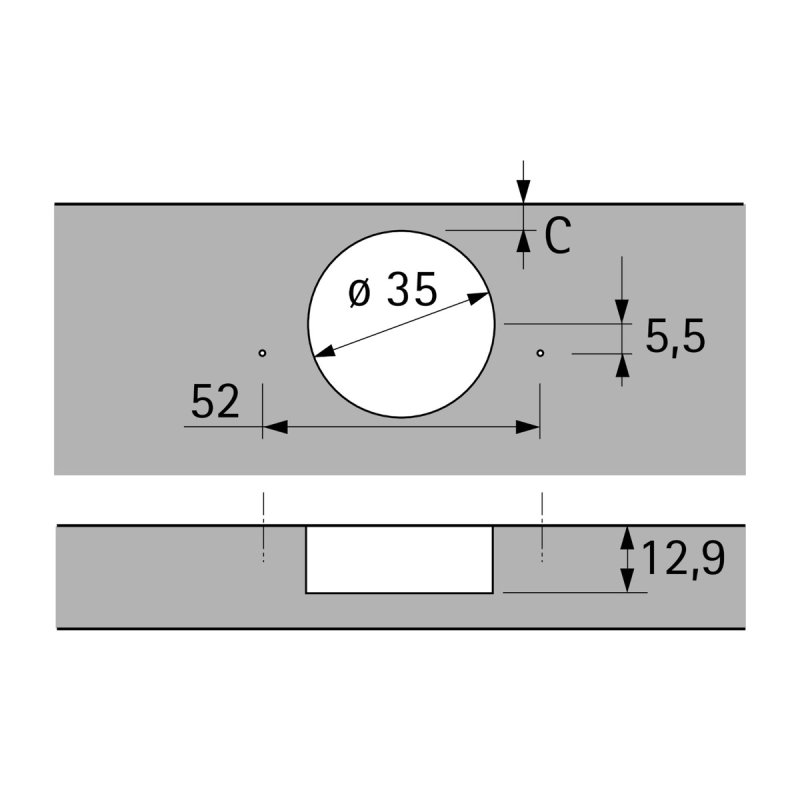

- TH - drilling pattern 52 x 5.5 mm
- Cup depth 12.8 mm

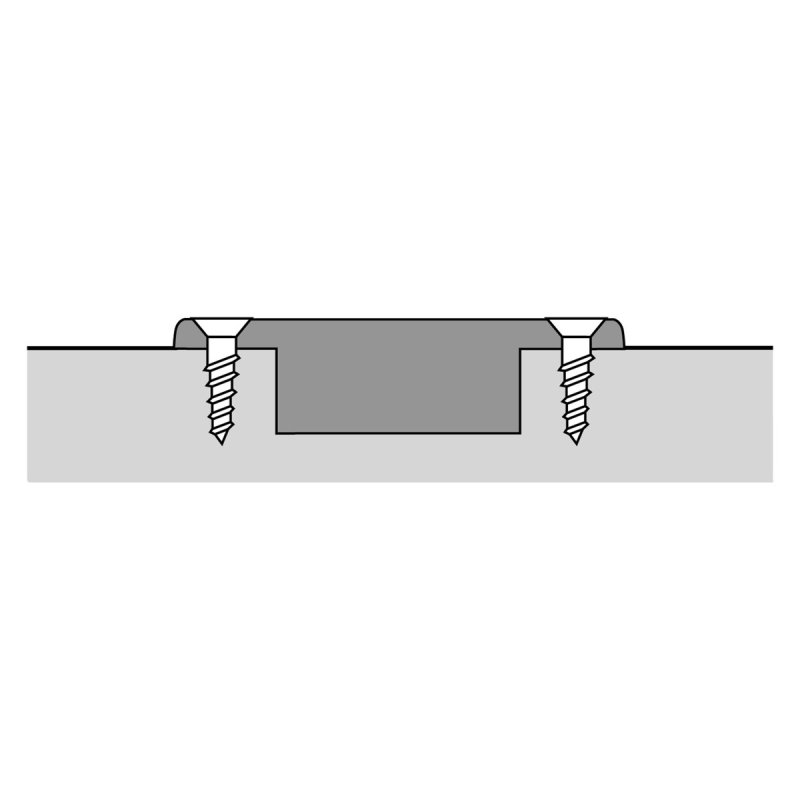

- Installation for screwing on (TH 52)
- Integrated overlay adjustment 2 mm / -2 mm
- Integrated depth adjustment 3 mm / -2 mm
- Height adjustment at mounting plate
- steel nickel plated
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4023149252969
