- New
HETTICH FRANCE SAS Hettich 9088021 drawer roller/slide
Hettich 9088021, 50 pc(s)
CFA10213
4023149346279
€13.00
VAT included
Description
Hettich 9088021. Quantity per pack: 50 pc(s)

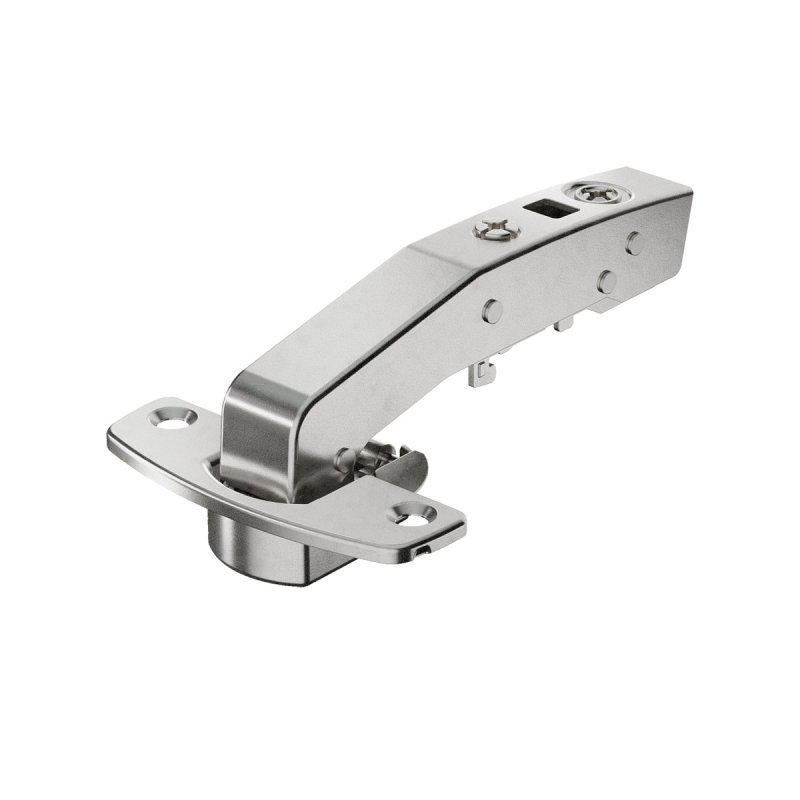

- Sensys angle hinge W90
- With integrated Silent System, with self closing feature (Sensys 8639i W90)
- Quality classification under EN 15570, Level 3
- Opening angle 95°
- For door thickness 15 - 28 mm

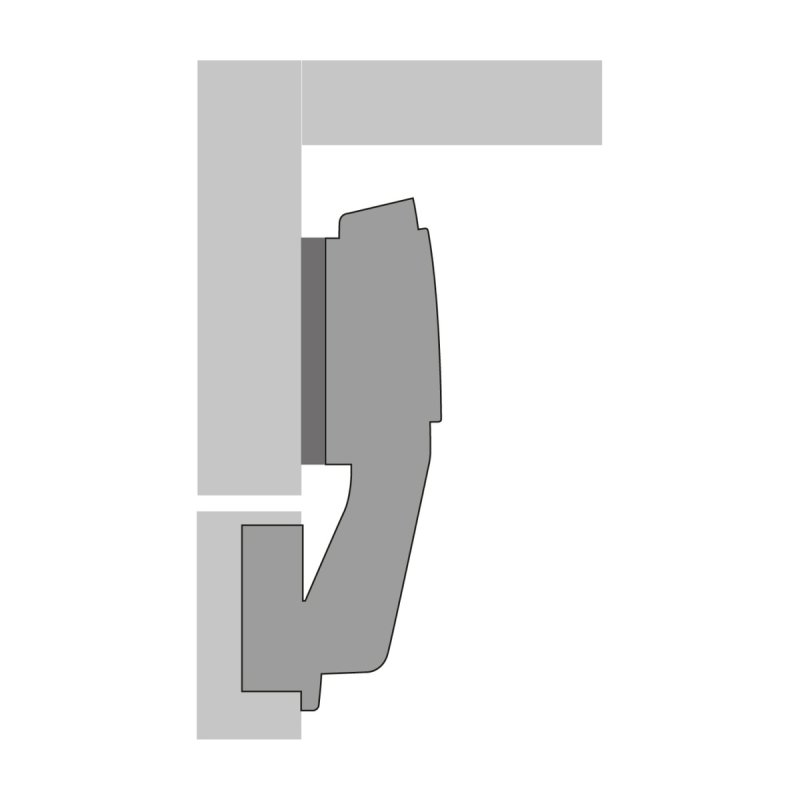

- Door mounting option inset (B 4 mm)

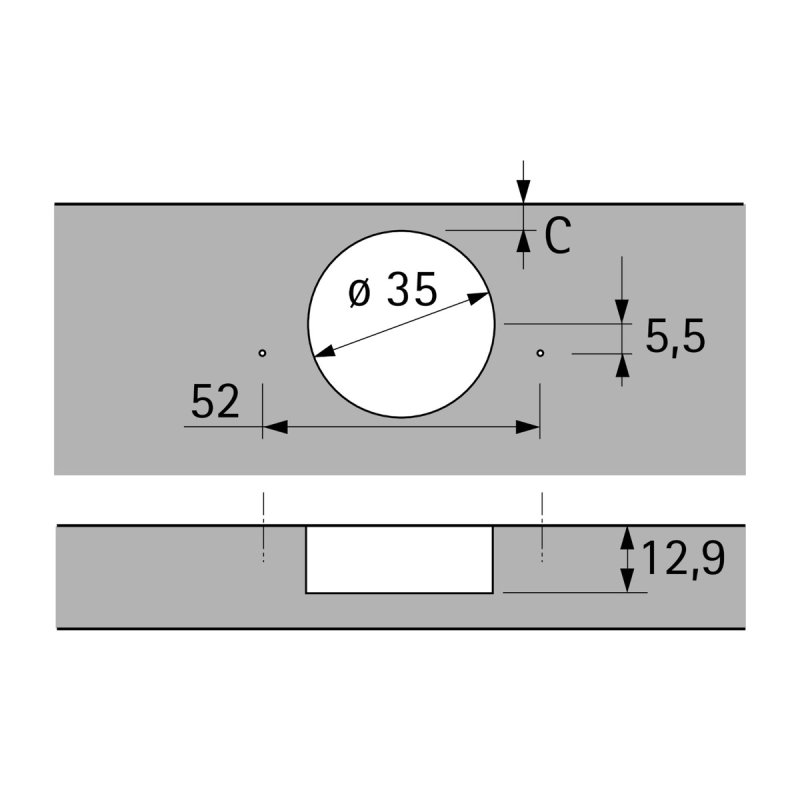

- TH-drilling pattern 52 x 5.5 mm
- Cup depth 12.8 mm

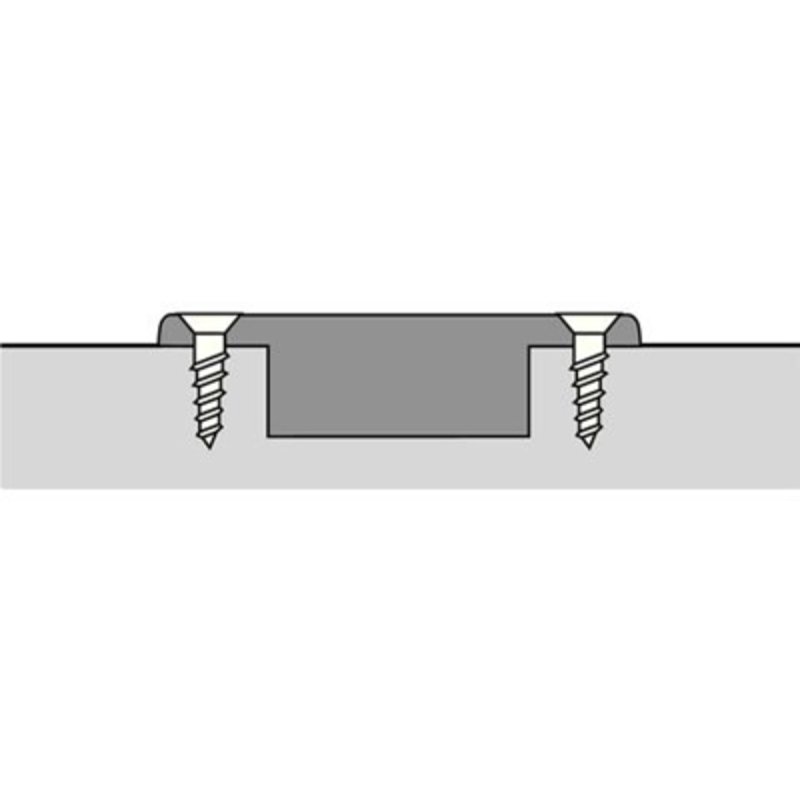

- Installation for screwing on (TH 52)
- Integrated adjustment of door offset 1 mm / -2 mm
- Integrated reveal adjustment 3 mm / -2 mm
- Height adjustment at mounting plate
- steel nickel plated
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4023149346279
