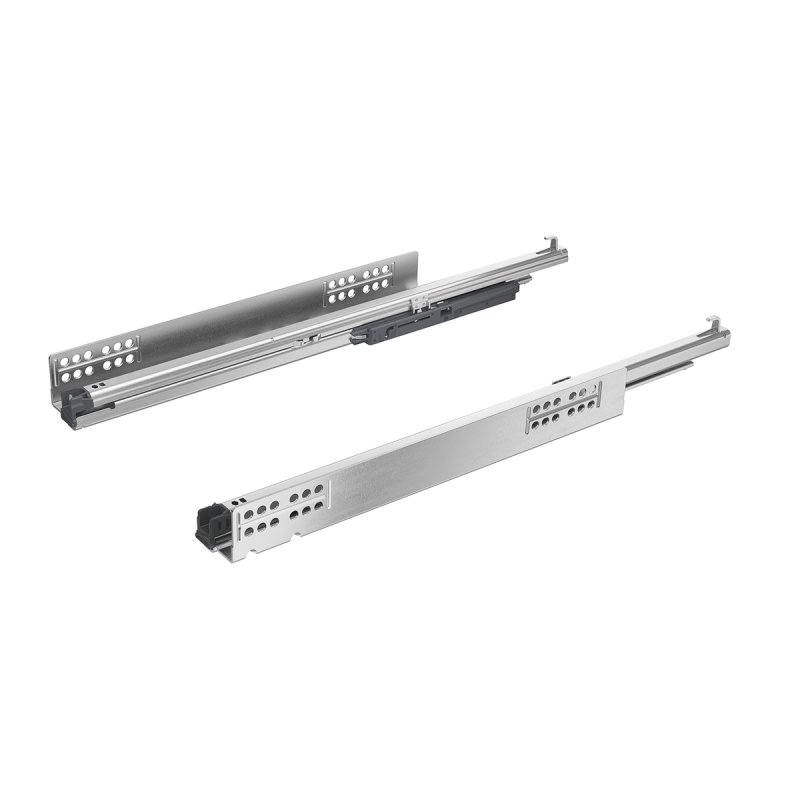

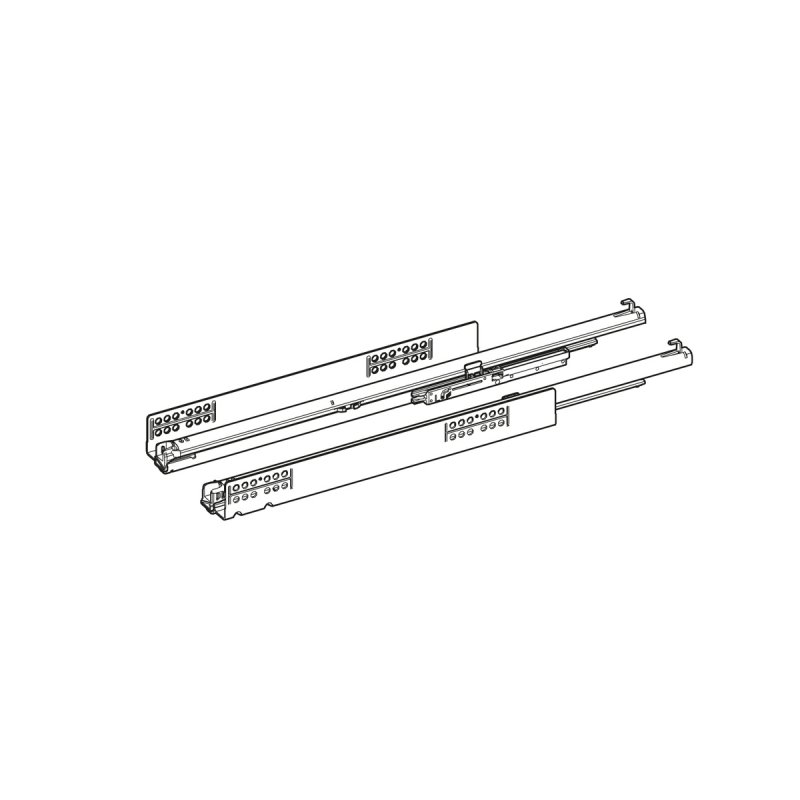

HETTICH FRANCE SAS Hettich 9256894 drawer roller/slide 30 kg 550 mm
Hettich 9256894, 30 kg, Steel, 550 mm, 553 mm, 1 pc(s)
CUA20657
4023149771996
€29.90
VAT included
Description
Hettich 9256894. Maximum load weight: 30 kg, Material: Steel. Length: 550 mm, Depth: 553 mm. Quantity per pack: 1 pc(s)
- Full extension runner for combining with AvanTech YOU system drawer or wooden drawer with catches
- Integrated Silent System
- Tool-less height adjustment up to 3 mm
- Optional: Push to open Silent opening system
- Optional: synchronisation / multi synchronisation for Push to open
- Optional: pull-out shelf support / pull-out shelf locating catch
- Load classes XS (10 kg) / M (30 kg)
- Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
- Suitable for drawers with a side profile thickness of up to 16 mm
- Load capacity to EN 15338, Level 3
- Galvanised steel
- Set comprises:
- 1 Quadro V6 YOU drawer runners, left and right
- Advice:
- Catch for use with wooden drawer can be ordered separately
- Push to open Silent for Quadro V6 YOU with Silent System can be ordered separately
- Synchronisation / multi synchronisation for Push to open Silent can be ordered separately
- Pull-out shelf support for use with wooden drawer (pull-out shelf) can be ordered separately
- Using the pull-out shelf support reduces drawer length by 10 mm (nominal length - 20 mm)
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4023149771996
